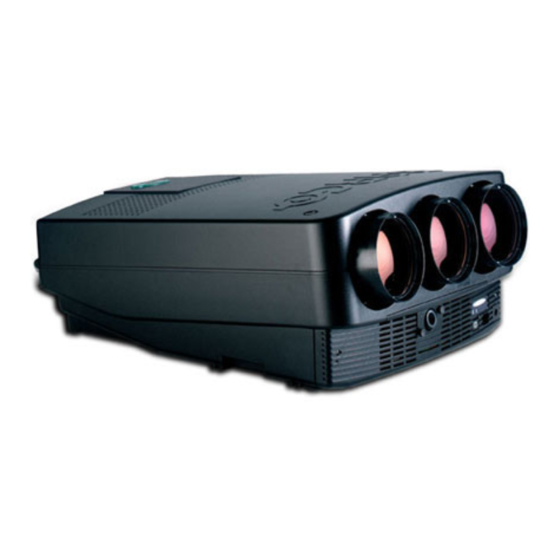

BARCO PROJECTION SYSTEMS
Date :
08022000
R9002380-R9002381-R9002382
R9002387-R9002388-R9002389
OWNER'S MANUAL
Rev. :
01
Ciné
7
Art. No. :
R5976066

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R9002380 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Barco R9002380

  • Page 1 BARCO PROJECTION SYSTEMS Ciné R9002380-R9002381-R9002382 R9002387-R9002388-R9002389 OWNER'S MANUAL Date : Rev. : Art. No. : 08022000 R5976066...
  • Page 2 Produced by BARCO NV, February 2000. All rights reserved. Trademarks are the rights of their respective owners. BARCO n.v./Projection Systems Noordlaan 5 B-8520 Kuurne Belgium Tel : +32/56/368211 Fax : +32/56/351651 E-mail : sales.bps@barco.com Visite Barco at the web : http://www.barco.com Printed in Belgium...
  • Page 3: Table Of Contents

    Table of Contents TABLE OF CONTENTS TABLE OF CONTENTS ...................... I-1 SAFETY INSTRUCTIONS ....................1-1 Safety Instructions ............................1-1 Notice on Safety ............................1-1 installation INSTRUCTIONS .......................... 1-1 OWNER’S RECORD ............................. 1-1 Safety indication on the product ........................1-1 Safety Warning .............................. 1-2 FEDERAL COMMUNICATION COMMISSION (FCC STATEMENT) ..............
  • Page 4: Table Of Contents

    Table of Contents Projector address ............................3-5 Why a projector address ? ..........................3-5 Set up an Individual Projector Address ......................3-5 How to control the projector or projectors ? ....................3-5 Before using the RCU ............................ 3-6 Common Address ............................3-6 Display the Projector Address on the Screen.
  • Page 5 Table of Contents Note ................................5-7 IRIS Touch Up............................... 5-7 What can be done ? ............................5-7 How to start up the IRIS Touch Up ? ......................5-8 IRIS Auto Converge ............................5-8 What can be done ? ............................5-8 How to start up the IRIS Auto Converge ? ....................
  • Page 6 Table of Contents How to select when a line doubler is built in ? ....................7-6 How to select when a line multiplier is built in ? .................... 7-6 Switching the multiplier ON/OFF ........................7-6 Motion Processing ............................7-7 Why Motion Processing ? ..........................7-7 How to activate ? ............................
  • Page 7 What can be done ? ............................8-6 BARCO_logo ..............................8-6 What can be done ? ............................8-6 WARNING ..............................8-6 How to add the BARCO logo ? ........................8-6 Memory management ............................ 8-7 What can be done ? ............................8-7 How to select ? ............................. 8-7 Copy a block ..............................
  • Page 8 Table of Contents What can be done ? ............................8-8 How to delete a Block ? ..........................8-8 Deletion of all blocks ............................. 8-9 What can be done ? ............................8-9 How to delete all blocks ? ..........................8-9 All settings to midposition ..........................8-9 What can be done ? ............................
  • Page 9: Safety Instructions

    Before operating this equipment please read this manual thoroughly, and retain it for future reference. Installation and preliminary adjustments should be performed by qualified BARCO personnel or by authorized BARCO service dealers. The part number and serial number are located at the back side of the projector. Record these numbers in the spaces provided below.
  • Page 10 This projector may be connected to an IT-power system. Operating AC power voltage of the projector: BARCOCINE 7 Art. No. R9002380/81/82 ( 230V AC ) BARCOCINE 7 Art. No. R9002387/88/89 (120V AC) Consult your dealer to switch over from 230Vac to 120 Vac or from 120Vac to 230 Vac.
  • Page 11 If the product exhibits a distinct change in performance, indicating a need for service. Replacement parts - When replacement parts are required, be sure the service technician has used original BARCO replacement parts or authorized replacement parts which have the same characteristics as the BARCO original part. Unauthorized substitutions may result in degraded performance and reliability, fire, electric shock or other hazards.
  • Page 12 Safety Instructions The use of controlled ambient lighting, such as incandescent spot light or a dimmer, is recommended for proper room illumination. Where possible, care should also be taken to ensure that the floors and walls of the room in which the projector is to be installed are non-reflecting, dark surfaces.
  • Page 13: Installation Instructions

    Connections CONNECTIONS Power Connection to Projector AC Power (mains) cord connection Use the supplied power cord to connect your projector to the wall outlet. Plug the female power connector into the male connector at the front of the projector. S ee installation instructions before V NOM 120/230 Volt connecting to the supply I MAX...
  • Page 14: Which Source To Which Input

    Connections Which source to which input C OMM POR T G(S) S-VIDEO R E MOT E R S23 2 IN R S23 2 OUT (8 0 0 p erip h erals) VIDE O R -Y Y ( S) B - Y Source No Projector input Press digit button Comp.
  • Page 15: Connecting A S-Video Or Video Source To Port 2

    Connections Video input selection : a. with the RCU : press digit button 1 or b. with the local keypad. (for access to the local keypad, see 'Local keypad' in chapter 'getting Started'.) press ADJUST key, the General access menu is displayed on the screen (menu 1). 2.
  • Page 16: Connecting A Rgb Analog Source With Composite Sync

    To enable or to disable this function, enter the adjustment mode and change the position of the ON/OFF toggle switch (see chapter 'Random access' adjustment mode). Always use an interface when a computer and local monitor have to be connected to the projector. BARCO's Interface units. Universal analog interface R9826100...
  • Page 17: Connecting A Rgb Analog Source With Tri-Level Sync

    Connections COMM PORT G(S) S-VIDEO (800 peripherals) R EMOTE RS232 IN RS232 OUT VIDEO Y(S) B -Y RGBS or RGsB input selection a. Press digit button 3 on the RCU or b. With the local keypad : (to gain access to the local keypad, see 'Local keypad' in chapter 'getting Started'.) 1.
  • Page 18: Connecting A Component Source

    Connections RGB3S or RG3sB input selection a. Press digit button 4 on the RCU or b. With the local keypad : (to gain access to the local keypad, see 'Local keypad' in chapter 'getting Started'.) 1. Press ADJUST key, the General access menu is displayed on the screen (menu 1). 2.
  • Page 19: Connecting A Component Source With Tri-Level Sync

    Connections Connecting a Component source with Tri-level sync. (R-Y)Y(B-Y) analog input terminals with Tri-level sync input or with Tri-level sync on the luminance input. COMM PORT G(S) (800 peripherals) REMOTE S-VIDEO RS232 OUT VIDEO RS232 IN R -Y Y(S) B -Y Professional V CR Audio am plifier with Tri-level sync...
  • Page 20: Communication Port For Communication With Peripherals

    Connections Applications a) remote control: - easy adjustment of the projector via IBM PC (or compatible) or MAC connection. - allow storage of multiple projector configurations and set ups. - wide range of control possibilities. - address range from 0 to 255. b) data communications: - sending data to the projector or copying the data from the projector to a hard memory device.
  • Page 21: Getting Started

    Getting Started GETTING STARTED Remote Control & Local Keypad Battery Installation in the RCU Two batteries are packed together with the RCU. Before using your RCU, install first these batteries. Remove the battery cover on the backside by pushing the handle a little towards the bottom of the RCU. Lift up the top side of the cover at the same time.
  • Page 22: Gaining Access To The Local Keypad

    Getting Started Gaining Access to the Local Keypad The local keypad is covered by a door on which the projector logo is screened (image 1). To open this door, push as indicated on next drawing and turn it to the front side of the projector (image 2). $'-867 image 1 image 2...
  • Page 23: Operating The Projector

    Getting Started Function keys : user programmable keys with functions for direct access. ADJ. : ADJUST key, to enter or exit the adjustment mode. Address key (recessed key), to enter the address of the projector (between 0 and 9). Press the recessed address key with a pencil, followed by pressing one digit button between 0 and 9.
  • Page 24: Start Up In Operational Mode

    Getting Started Start up in Operational Mode The projector can start up with the selected source or the projector can start up with a warm up cycle message (menu 1). PROJECTOR WARM UP A FULL WHITE PATTERN WILL BE GENERATED FOR 20 MIN. FOR IMMEDIATE USE OF THE PROJCTOR, PRESS <EXIT>...
  • Page 25: Pointing The Rcu Directly To The Ir Sensors

    Getting Started Pointing the RCU directly to the IR Sensors Point the front of the RCU directly at one of the 2 IR sensors of the projector. When using the wireless remote control, make sure you are within the effective operating distance (30m, 100ft in a straight line). The remote control unit will not function properly if strong light strikes the sensor window or if there are obstacles between the remote control unit and the projector's IR sensor.
  • Page 26: Before Using The Rcu

    Getting Started Before using the RCU The RCU is default programmed with address 0 or 1, 'common address'. Regarding to the internal wiring of the RCU the default address can be 0 or 1 (call for technical assistance to change the common address setting). With that 'common address' programmed into the RCU, every projector, without exception will listen to the commands given by this RCU.
  • Page 27: When The Source Is Selected

    Getting Started Input Selection via the Local Keypad. Handle as follow : Press the ADJUST key to display the General access menu (menu 1). Highlight the desired source number by pushing the control disc up, down, to the left or the right. Push the control disc up or down to move the cursor up and down, push the control disc to the left or to the right to move the cursor to the left and to the right.
  • Page 28: The Pause Key

    Getting Started When a picture control is selected, a text box with bar scale and the function name of the control (e.g. brightness) appear on the screen. The length of the bar scale indicates the current memorized setting for this source (percentage scale). The bar scale changes as the control disc is pushed to the left or to the right.
  • Page 29: Start Up Of The Adjustment Mode

    Start up Adjustment mode START UP OF THE ADJUSTMENT MODE Adjustment Mode Start Up All picture adjustments are made while in the 'Adjustment mode'. Two possible ways to enter the adjustment mode : Using the RCU. Press the ADJUST key. The projector displays the 'Main menu' (menu 2).
  • Page 30: Possible Paths

    Start up Adjustment mode Possible Paths Depending on the projector configuration the following paths are possible with the 'Main menu'. Image Control - Allows to change the color temperature of the image and to select another format (adjustment) for the image. IRIS-Control - This selection will only be available when the autoconvergence unit IRIS is built in into the projector.
  • Page 31: Main Menu

    Main Menu MAIN MENU Main Menu Overview Flowchart COLOR ADJUST IMAGE CONTROL FORMAT SELECT IRIS TOUCH UP IRIS CONTROL IRIS AUTO CONVERGE IRIS FULL ALIGNMENT NORMAL STEREO SPATIAL STEREO SOUND CONTROL PSEUDO STEREO MAIN MENU MONO FUNCTION KEYS IRIS GUIDED SERVICE MENUS RANDOM ACCESS INSTALLATION...
  • Page 32: Image Control

    Main Menu Image Control Starting Up Push the cursor keys é or ê to select 'Image Control' (menu 1). The selected item will change in color and a marker will be displayed in front of it. Press ENTER to select. The 'Image Control' menu will be displayed (menu 2a or 2b).
  • Page 33: How To Change The Multiplier Setting

    Main Menu How to change the Multiplier Setting To set up the LIMO functions, handle as follow : Push the cursor keys é or ê to select 'Image Processing' (menu 1) Press ENTER to select the 'Image Processing' menu. The Image Processing menu will be displayed (menu 2). IMAGE CONTROL IMAGE PROCESSING Image Processing...
  • Page 34: How To Change The Scan Rate

    Main Menu How to change the scan rate ? Push the cursor keys é or ê to select a new scan rate (menu 1). Press ENTER to activate this scan rate. e.g. 100 Hz 625 lines P ==> Vertical frequency of the image : 100 Hz Quantity of horizontal lines : 625 lines Interlace mode : P = Non-interlaced image (progressive scan).
  • Page 35: How To Adjust The Video Equalizing

    Main Menu How to adjust the Video Equalizing ? Push the cursor keys ç or è to select 'Low' or Mid' or 'HI.' or 'Factory Preset : x' Push the cursor keys é or ê to adjust the sharpness in the choosen band (low, mid, high) or to scroll through the factory preset (x = 1 to 7).
  • Page 36: Color Adjust

    Main Menu Color Adjust What can be done ? The color temperature of the image can be installed. The customer has the choise between 4 factory preset color temperatures and one custom. This custom color temperature has to be adjusted in the 'Random Access Adjustment Mode'. How to select 'Color Adjust' and to select a new color temperature? Push the cursor keys é...
  • Page 37: How To Add A Name To A 'Format

    Format 2 Free x x x x x x x x Fromat 3 Available x x x x x x x x Fromat 3 Available BARCO Format 4 Free x x x x x x x x Format 4 Free...
  • Page 38: How To Start Up The Iris Touch Up

    Main Menu How to start up the IRIS Touch Up ? Push the cursor keys é or ê to select 'IRIS Touch Up' (menu 1). Press ENTER to activate the touch up function. The process starts and when successfully completed, the projector will return to image display of the current source. IRIS CONTROL IRIS Touch Up IRIS Auto Converge...
  • Page 39: Sound Control

    Main Menu Sound Control What can be done ? When the sound option is available, the following sound modes can be selected : normal stereo, spatial stereo, pseudo stereo or mono. How to start up and to select the Sound Control ? Push the cursor keys é...
  • Page 40: How To Enter The Service Menu

    Main Menu How to enter the Service Menu ? Push the cursor keys é or ê to select 'Service Menus' (menu 1). Press ENTER to select. A warning will be displayed (menu 2). "Risk of incorrect adjustment of the projector. The following SERVICE menus are reserved to and to be performed only by qualified personnel ! If qualified, press <ENTER>...
  • Page 41: Entering The Service Menus

    Entering the Service Menus ENTERING THE SERVICE MENUS Service menus What is available in the Service menus ? A complete set of adjustments divided in different modes are available to adjust the projector The different mode are : IRIS : to autoalign and autoconverge the projector. Guided : Guided should be selected if the user intends to perform a complete alignment of the projected image.
  • Page 42: Password Protection

    Some items in the Adjustment mode are password protected. While selecting such an item, the projector asks to enter your password. (Password protection is only available when the password strap on the contoller module is ON. Contact a BARCO authorized technician when no password is requested during the adjustment procedure and password protection is desired.)
  • Page 43: Random Access Adjustment Mode

    Random Access Adjustment Mode RANDOM ACCESS ADJUSTMENT MODE Random access adjustment mode. Starting Up Push the cursor keys up or down to highlight "RANDOM ACCESS" and then press ENTER. Some items in the Random access mode are password protected (when the password function is enabled). Enter your password to continue.
  • Page 44: Selecting Setup Pattern

    Random Access Adjustment Mode Selecting Setup Pattern Set up of the Selected Setup Pattern ? If an external source is connected to the projector, menu 1 will be displayed. To select the desired setup pattern, handle as follow : Push the cursor keys é or ê to highlight the desired setup pattern Press ENTER to select.
  • Page 45: Random Access Adjustment Mode Selection Menu

    Random Access Adjustment Mode Random access adjustment mode selection menu. What is possible ? This is the main menu for the Random Access adjustment mode. Through this menu, the following adjustments and features are accessible : - Picture Tuning Sync slow/fast(only for RGB inputs) Color Balance Decoding Port 2 : Video/S-Video...
  • Page 46: How To Select The Color Balance

    Random Access Adjustment Mode How to select the Color Balance ? Push the cursor keys é or ê to highlight 'Color Balance' (menu 1). Press ENTER to select. The color balance menu will be displayed (menu 2). COLOR BALANCE PICTURE TUNING FIXED COLOR BALANCE 3200 4900 6500 9300 CUSTOM WHITE BALANCE...
  • Page 47: Sync Fast/Slow Adjustment (Only Inputs 3,4,5,6)

    Random Access Adjustment Mode Sync Fast/Slow Adjustment (only inputs 3,4,5,6) What can be done ? The sync function is used to minimize horizontal jittering or tearing at the top to the displayed image. The sync slow/fast function is only available for RGB sources. How to setup the sync function ? To change the Sync setting, handle as follow : 1.
  • Page 48: Switching Peaking On/Off

    Random Access Adjustment Mode Switching Peaking ON/OFF 1. Push the cursor key é or ê to select PEAKING: OFF (menu 1). 2. ENTER to toggle between PEAKING: ON and PEAKING: OFF . Peaking will sharpen the contures of a projected image. When making new adjustments for a RGB source PEAKING is switched to OFF.
  • Page 49: Motion Processing

    Random Access Adjustment Mode Motion Processing Why Motion Processing ? With this function it is possible to recognize whether the source material was originally film or video. That prevents the creation of motion artifacts. How to activate ? Push the cursor keys é or ê to select 'Motion Processing' (menu 1). Press ENTER to toggle between ON and OFF.
  • Page 50: Video Equalizing

    Random Access Adjustment Mode Video Equalizing What can be done ? The shapness of the image can be adjusted for 3 frequency bands (low, medium and high) separately. To make it a little bit easy, 7 pre-programmed factory presets are available. The customer is also free to adjust its own sharpness for 3 bands.
  • Page 51: Contrast Enhancement

    Random Access Adjustment Mode Contrast Enhancement What can be done ? Enhancing the contrast results in a more dynamic image. How to select and adjust the contrast enhancement ? Push the cursor keys é or ê to select 'Contrast Enhancement' (menu 1). Press ENTER to display the adjustment text box (menu 2).
  • Page 52: Clamp Gating

    Random Access Adjustment Mode Luminace Delay When is it necessary ? When a color shift is recognized on the screen. e.g. if color bars are projected and a line between the color is recognized. How to adjust ? 1. Push the cursor key é or ê to select 'Luminance delay' (menu 1). 2.
  • Page 53: Factory Preset

    Random Access Adjustment Mode Factory Preset What can be done ? All settings for the line multiplier can be set to factory preset settings. What are the factory preset settings ? The factory preset settings are : Time base correction : on Luminace delay : 0 Vertical sync reference : indirect Clamp gating : off...
  • Page 54: Horizontal Phase Adjustment

    Random Access Adjustment Mode Horizontal Phase Adjustment Start Up 1. Push the cursor key é or ê to highlight 'H Phase' (menu 1). 2. Press ENTER to activate. The external image with a text box in the middle will be projected. Note No horizontal phase adjustment is available on the internal # pattern.
  • Page 55: Note

    Note Horizontal and Vertical shifts for Red and Blue should end up with a setting close to 50%. If these settings are significantly greater or lesser than 50%, contact a BARCO authorized service technician. Warning In order to ensure maximum CRT longevity and to avoid CRT damage, do not shift the raster outside the phosphor area of the CRT.
  • Page 56: How To Enter An Alignment

    Random Access Adjustment Mode How to enter an alignment ? To enter an alignment : 1. Push the cursor key é or ê to highlight a function 2. Press ENTER to activate this function. 3. Press EXIT to return. Corrects for curvature of the vertical lines in the middle of the image.
  • Page 57: Seagull Correction

    Random Access Adjustment Mode Seagull correction What can be done ? Use this correction only if, after adjusting the vertical lines with the side bow or side keystone, still a 'S' deformation is visible on the left and the right side of the image. The default value on the bar scale for this correction is 50.
  • Page 58: How To Enter An Alignment

    Random Access Adjustment Mode How to enter an alignment ? To enter an alignment : 1. Push the cursor key é or ê to highlight a function 2. Press ENTER to activate this function. 3. Press EXIT to return. Corrects for curvature of the horizontal lines in the middle of the image.
  • Page 59: Size Adjustment

    Random Access Adjustment Mode Start up To correct the Seagull Correction : 1. Push the cursor key é or ê to highlight SEAGULL CORRECTION (menu 1) 2. Press ENTER to activate. Eliminate the deformation by pushing the cursor key é or ê until a straight line is obtained (image 1). TOP-BOTTOM (N-S) H CENTERLINE BOW H CENTERLINE SKEW...
  • Page 60: Blanking Adjustments

    Random Access Adjustment Mode Vertical Linearity Adjustment What can be done ? The vertical linearity adjustment function corrects for vertical non-linearities which extend from the center of the image to the top and bottom of the image. Start Up To start up the vertical linearity adjustment : 1.
  • Page 61: How To Adjust The Blanking

    Random Access Adjustment Mode How to adjust the Blanking ? Adjust the next blanking alignments until the image is correctly framed or the unwanted information is blanked out (image 1). To enter a blanking alignment : 1. Push the cursor key é or ê to highlight the desired blanking position. 2.
  • Page 62: Convergence Adjustment

    Random Access Adjustment Mode Convergence Adjustment What has to be done ? Convergence adjustments affect both the horizontal and vertical lines of the setup pattern. These adjustments are performed on the red image while superimposed on the green image and then on the blue image while superimposed on the green image. The screen is devided into 25 areas (image 1) Note The green convergence adjustments can be added as an option.
  • Page 63: Service Mode

    CHANGE PASSWORD CHANGE LANGUAGE CHANGE PROJECTOR ADDRESS PROJECTOR SET UP CHANGE BAUDRATE POWER UP MODE COMMON ADDRESS BARCO LOGO COPY A BLOCK DELETE A BLOCK SERVICE MODE DELETE ALL BLOCKS MEMORY MANAGEMENT ALL SETTINGS TO MIDPOS R & B CONVERGENCE MID...
  • Page 64: Projector Set-Up

    - Change language - Change projector address - Change baudrate - Power up mode - BARCO logo Start up the Projector Set-Up To select Projector Set-Up : 1. Push the cursor key é or ê to highlight Projector Set_Up (menu 1).
  • Page 65: How To Start Up

    CHANGE PROJECTOR ADDRESS CHANGE BAUDRATE Proj. address : 001 POWER UP MODE : operating Soft. Version : 6.00 COMMON ADDRESS : 0 BARCO LOGO Config. : Ceiling Front Select with é or ê Baudrate PC : 9600 then <ENTER> Text : ON <EXIT>...
  • Page 66: How To Select

    CHANGE PROJECTOR ADDRESS CHANGE BAUDRATE POWER UP MODE : operating Use ç and è to select, COMMON ADDRESS : 0 Password will be BARCO LOGO and reprogram reprogrammed as xxxx with numeric keys. <ENTER> to confirm <ENTER> to confirm Select with é or ê...
  • Page 67: How To Change That Address

    CHANGE LANGUAGE 0 0 0 CHANGE PROJECTOR ADDRESS CHANGE BAUDRATE POWER UP MODE : operating Use ç and è to select, BARCO LOGO and reprogram with numeric keys. Highest address is 255 Select with é or ê <ENTER> to confirm then <ENTER>...
  • Page 68: How To Change The Mode

    1 BARCO logo What can be done ? The BARCO logo can be added to the image, in overlay or in background, on any place on the screen. WARNING Continuous use of the BARCO logo damages the RED CRT.
  • Page 69: Memory Management

    Select Mode and toggle with ENTER between ON and OFF. ON : BARCO logo will be displayed on the screen when leaving the adjustment mode. To position the logo on the screen, push the cursor key up, down, to the left or to the right until the desired position is reached.
  • Page 70: How To Copy

    Service Mode How to copy ? To copy a block : 1. Push the cursor key é or ê to highlight 'Copy a Block' (menu 1). 2. Press ENTER to select. The copy menu will be displayed (menu 2). To copy the settings of a closed block to the block you are working on (active block), 3.
  • Page 71: Deletion Of All Blocks

    Service Mode Deletion of all blocks What can be done ? All blocks (all settings) can be deleted at the same time. How to delete all blocks ? 1. Push the cursor key é or ê to highlight Delete all Blocks (menu 1). 2.
  • Page 72: How To Cancel 'Set To Midposition

    Service Mode How to cancel 'Set to midposition' ? When "All settings to midpos" is selected, all settings are set to their midposition. To cancel this action : 1. Push the cursor key é or ê to highlight 'Undo all settings to midpos' (menu 1). 2.
  • Page 73: Undo Green Convergence Mid

    Service Mode Green convergence mid What can be done ? The green convergence settings can be set to midposition. Only available when the projector is equipped with green convergence adjustments. How to set Green settings to midposition ? 1. Push the cursor key é or ê to highlight 'GR Convergence Mid' (menu 1). 2.
  • Page 74: How To Select

    G2 Adjustment Warning 'G2 adjustment should be performed by BARCO personnel, or BARCO authorized dealers'. If you are qualified, press ENTER to continue. If not qualified, press EXIT to return to the Common settings menu. Further description of the G2 adjustment is given in the Installation manual.
  • Page 75: Projector Warm Up

    Service Mode Projector warm up What can be done ? When in the ON position (and the CRT run in cycle is OFF), the projector can start up with a warm up periode of 20 minutes. During the start up a warm up menu will be displayed. This menu offers the possibility to skip the warm up periode anyway by pressing the EXIT key and offers the possibility to adjust the horizontal and vertical amplitude of this white image with the control disc.
  • Page 76: How To Recall A Specific Memorybank For The Actual Source

    Service Mode How to recall a specific memorybank for the actual source ? When the memory bank option is ON and a source is selected, this source will be displayed with the last used memory bank settings. An on-screen menu will give a indication of the memory bank nummer used. To switch to another memory bank : 1.
  • Page 77: Programmable Function Keys

    Programmable Function Keys PROGRAMMABLE FUNCTION KEYS Programmable Function Keys What can be done with these keys The five function keys on top of the remote control can be programmed as short cut keys (quick access) to almost any adjustment function. See list further in this chapter.
  • Page 78: Factory Predefined Functions

    Programmable Function Keys Blue Horizontal Sides Blue Vertical Corners Green Convergence Convergence Red on Green Convergence Blue on Green Horizontal Phase H & V Size Vertical Linearity Green Horizontal Coarse Shift Green Vertical Coarse Shift Red Vertical Coarse Shift Vertical Centerline Bow Vertical Centerline Skew Right Bow Right Keystone...
  • Page 79: Messages, Warnings And Failures

    Messages, warnings and failures MESSAGES, WARNINGS AND FAILURES 10-1 5976066 BARCOCINE 7 011299...
  • Page 80 Messages, warnings and failures 10-2 5976066 BARCOCINE 7 011299...
  • Page 81: Adjustment Blocks And Source Numbers 90 - 99

    Adjustment Blocks and Source Numbers 90-99 ADJUSTMENT BLOCKS AND SOURCE NUMBERS 90 - 99 Adjustment Blocks (memory blocks) What are adjustment block ? As the projector is digitally controlled, all geometry and convergence adjustments are stored in the projector’s memory as numeric values.
