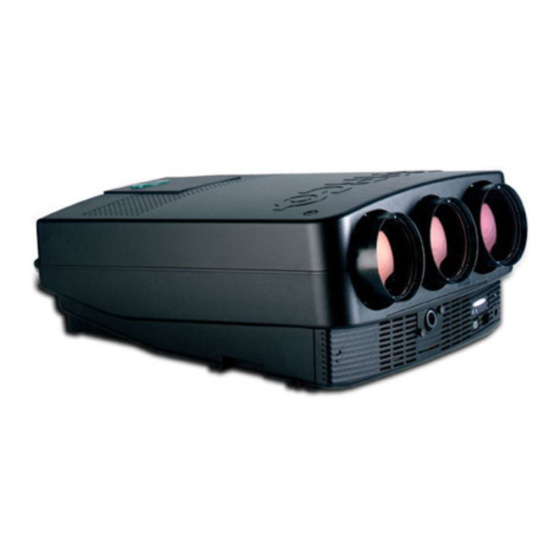

Summary of Contents for Barco R9002380

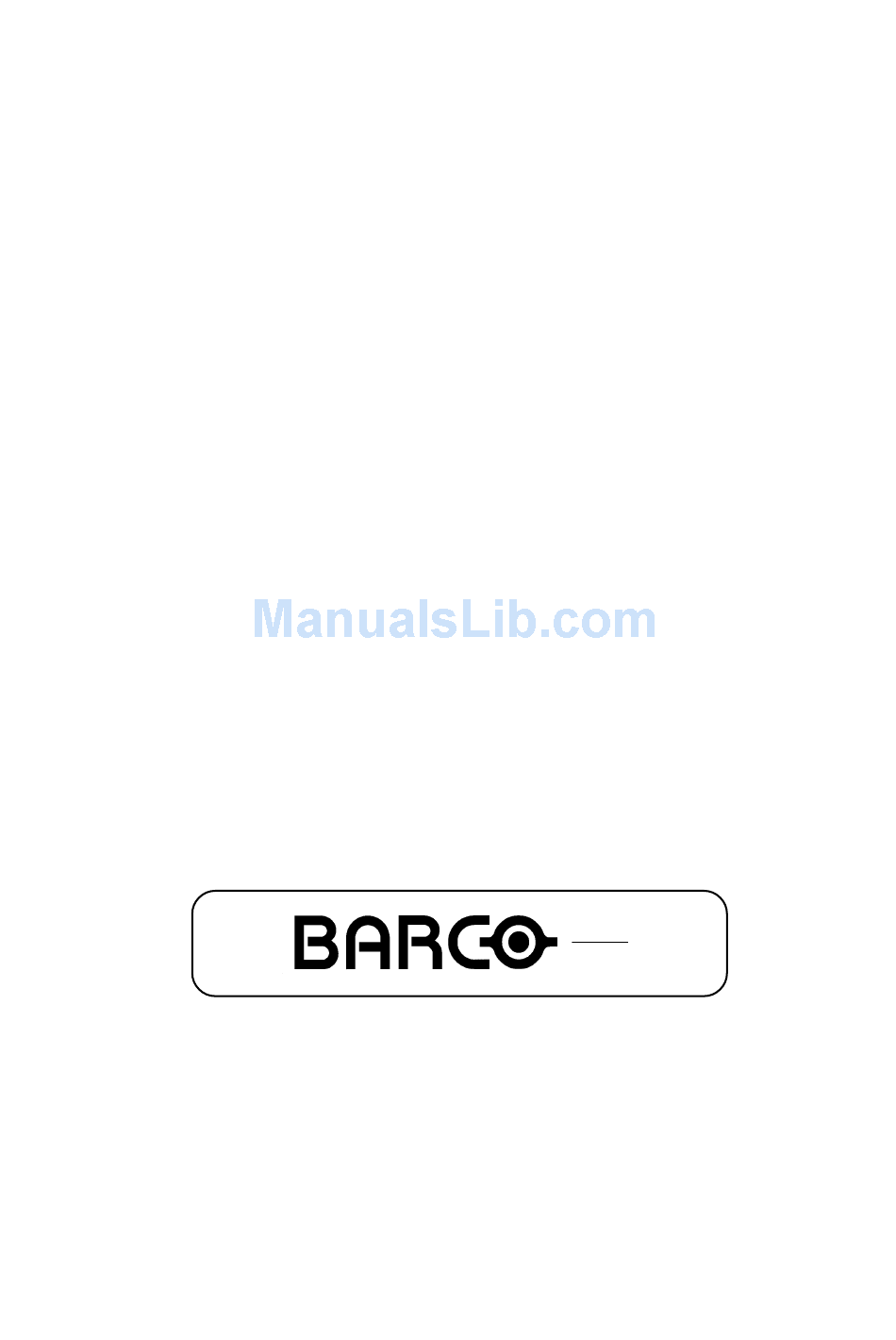

- Page 1 Ciné R9002380-R9002381-R9002382 R9002387-R9002388-R9002389 INSTALLATION MANUAL...
- Page 3 BARCO PROJECTION SYSTEMS Ciné R9002380-R9002381-R9002382 R9002387-R9002388-R9002389 INSTALLATION MANUAL Date : Art. No. : 151299 R5976067...
- Page 4 Produced by BARCO NV, December 1999. All rights reserved. Trademarks are the rights of their respective owners. BARCO n.v./Projection Systems Noordlaan 5 B-8520 Kuurne Belgium Tel : +32/56/368211 Fax : +32/56/351651 E-mail : sales.bps@barco.com Visite Barco at the web : http://www.barco.com Printed in Belgium...
-
Page 5: Table Of Contents
Table of contents TABLE OF CONTENTS TABLE OF CONTENTS ..................... 2-1 SAFETY INSTRUCTIONS ....................1-1 Safety Instructions ............................1-1 Notice on Safety ............................1-1 installation INSTRUCTIONS .......................... 1-1 OWNER’S RECORD ............................. 1-1 Safety indication on the product ........................1-1 Safety Warning .............................. 1-2 FEDERAL COMMUNICATION COMMISSION (FCC STATEMENT) .............. -
Page 6: Table Of Contents
Table of contents POWER CONNECTION ...................... 5-1 Power Connection ............................5-1 Power (mains) cord connection ........................5-1 Input power (mains) voltage adaptation......................5-1 Fuses ................................5-2 Switching on/off ............................. 5-2 INSTALLATION ADJUSTMENTS ..................6-1 Installation mode start up ..........................6-1 Installation Adjustments .......................... -
Page 7: Safety Instructions
INSTALLATION INSTRUCTIONS Before operating this equipment please read this manual thoroughly, and retain it for future reference. Installation and preliminary adjustments should be performed by qualified BARCO personnel or by authorized BARCO service dealers. OWNER’S RECORD The part number and serial number are located at the back side of the projector. Record these numbers in the spaces provided below. -
Page 8: Safety Warning
Safety Instructions Safety Warning TO PREVENT FIRE OR ELECTRICAL SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE FEDERAL COMMUNICATION COMMISSION (FCC STATEMENT) This equipment has been tested and found to comply with the limits of a class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 9: On Installation
If the product exhibits a distinct change in performance, indicating a need for service. Replacement parts - When replacement parts are required, be sure the service technician has used original BARCO replacement parts or authorized replacement parts which have the same characteristics as the BARCO original part. Unauthorized substitutions may result in degraded performance and reliability, fire, electric shock or other hazards. - Page 10 Safety Instructions The use of controlled ambient lighting, such as incandescent spot light or a dimmer, is recommended for proper room illumination. Where possible, care should also be taken to ensure that the floors and walls of the room in which the projector is to be installed are non-reflecting, dark surfaces.
-
Page 11: Packaging And Dimensions
Packaging and Dimensions PACKAGING AND DIMENSIONS Projector Packaging Way of Packaging The projector is packed in a carton box. To provide protection during transportation, the projector is surrounded with foam and enclosed within a sturdy fibreboard carton. The package is then secured with banding and fastening clips. To unpack To open de banding, pull on the clip as shown in the first drawing. -
Page 12: Projector Dimensions
Packaging and Dimensions Projector dimensions (mm) 5976067 BARCOCINE 7 151299... -
Page 13: Installation Guidelines
What image size? How big should the image be? The projector is designed for projecting an image width from 1.4m (4.6') to 7m (23') with an aspect ratio of 4 to 3. It leaves the BARCO factory, adjusted as a ceiling front projector for a screen width of 2.4m. Changing the image size from the factory preset requires a realignment of the projector. -
Page 14: Projector Configurations
Installation Guidelines Projector Configurations Which configuration can be used ? The projector can be installed to project images in four different configurations : front/table rear/table front/ceiling or rear/ceiling 5HDU&HLOLQJ 5HDU7DEOH )URQW&HLOLQJ )URQW7DEOH 5976067 BARCOCINE 7 151299... -
Page 15: Positioning The Projector
Installation Guidelines Positioning the projector To indicate a correct installation position it is necessary to know the distance : - projector - ceiling or projector - floor - projector - screen To find this correct position for the projector, equipped with HD145 lenses, formulas are given in the next paragraph. Abbreviations used on drawing and in formulas B = Distance between ceiling and top of the screen. -
Page 16: How To Install The Projector
To install the projector, apply always the BARCO kits which are specially designed for this function. BARCO ceiling support. Always use the BARCO ceiling support to attach your projector to the ceiling. (BARCO order number : R9827990) The installation instruction for this support is enclosed in the packet of the set. - Page 17 Installation Guidelines 4. To open the chassis, loosen both indicated retaining screws (image 3). 5. Turn the chassis to the front of the projector until it grips in its locks (image 4). COMM PORT REMOTE G(S) VIDEO S-VIDEO (800 peripherals) image 1 C ‚…...
-
Page 18: Scan Inversion
Installation Guidelines Scan Inversion Horizontal scan inversion Three connectors are used, one for each horizontal deflection coil. When changing the horizontal scan, insure that all three connectors are set in the same position. See position of the connectors for the corresponding projector configuration. Vertical scan inversion Three connectors are used, one for each vertical deflection coil. - Page 19 Proj. address : 001 POWER UP MODE : operating SERVICE Soft. Version : 6.00 COMMON ADDRESS : 0 Source 01 BARCO LOGO Config. : Ceiling Front Select with é or ê Select with é or ê Baudrate PC : 9600 Select with é...
- Page 20 Installation Guidelines 5976067 BARCOCINE 7 151299...
-
Page 21: Projector Set Up
Projector Set Up PROJECTOR SET UP Projector Set Up Password mode Gaining access to the password strap The strap on the controller unit allow a set up of the password mode. Gaining access to the strap Open the top cover (see installation guidelines) Open the chassis (see installation guidelines) st r ap C ‚…v“‚... -
Page 22: Location Of The Password Strap
Projector Set Up Location of the Password Strap With a strap on the controller unit, the important projector adjustments can be protected with a password. When the password feature is enabled (strap mounted on both legs), the customer has to enter a password before he can enter the specific adjustment. Socket for strap 5976067 BARCOCINE 7 151299... -
Page 23: Power Connection
Input power (mains) voltage adaptation. The BARCOCINE 7 - R9002380/81/82 leaves the factory to operate on a mains (power) input of 230 Vac. The BARCOCINE 7 - R9002387/88/89 leaves the factory to operate on a mains (power) input of 120 Vac. -
Page 24: Fuses
- replace with the same type of fuse - refer replacement to qualified service personnel Fuse type : 2 x T5A/250V (Barco order number : R314104) Switching on/off The projector is switched ON and OFF using the power (mains) switch ON/OFF. -
Page 25: Installation Adjustments
IRIS THE FOLLOWING INSTALLATION GUIDED MENUS ARE RESERVED TO, AND RANDOM ACCESS TO BE PERFORMED ONLY BY INSTALLATION BARCO PERSONNEL, OR BARCO SERVICE AUTHORIZED DEALERS Source 01 Select with é or ê IF QUALIFIED, PRESS then <ENTER> <ENTER> TO CONTINUE, OR <EXIT>... -
Page 26: Overview Flow Chart Installation Mode
Installation Adjustments When the password mode is active, your password will be asked (menu 1). Your password contains 4 digits. Adjusting the projector with the RCU. Enter the digits with the numeric keys on the RCU. Example : 2 3 1 9 For each digit entered, a 'X' appears on the screen under the displayed text 'enter password'. -
Page 27: Scheimpfug Adjustment
Installation Adjustments Scheimpfug adjustment Range of the scheimpfug adjustment The scheimpfug correction can be adjusted separately for the three tubes within 3 ranges: range 1 : 1.4 m (55") to 1.9 m (75"), optimum screen width 1.4 m (55") range 2 : 1.9 m (75") to 3.2 m (126"), optimum screen width 2.4 m (94") range 3 : 3.2 m (126") to 6 m (236"), optimum screen width 4 m (157") -
Page 28: Optical Lens Focusing
Installation Adjustments 3. Push the scheimpfug ring to its correct position (front view) (image 2). range 1 : to the right range 2 : in the middle range 3 : to the left 4. Push the lens back till it fits in the ring and secure the four bolts. Tpurv€ƒsˆtÃp‚……rp‡v‚Ãuhqyr B…rr... -
Page 29: Electrical Focusing
Installation Adjustments Electrical focusing What can be done ? The electrical focus for red, green and blue is factory preset. The electrical focus can be readjusted. Adjust only if really necessary. Mark first for future reference the blue focus control before adjusting. Focus adjustment should be done with hight contrast settings. -
Page 30: How To Adjust
Installation Adjustments How to adjust ? Press ENTER to display the raster on the green CRT. Look into the green lens and shift the raster with the control disc until it is centered in the middle of the CRT faceplate. forbidden area projected raster RASTER CENTERING... -
Page 31: Crt Projection Angle Adjustment
Installation Adjustments CRT projection angle adjustment The projection angle of the red and blue CRT's is dependent on the desired size of the projected image. If the centers of green, blue and red do not coincide, the CRT projection angle must be adjusted. Never try to correct this misalignment with the shift correction or the static convergence controls. - Page 32 Installation Adjustments Loosen the four hexagon screws A, A', B and B', upper and lower fixation latch. These screws fasten the cooling house of the red tube. Pivot the red CRT until the center of the red image coincides with the center of the green image. If the angle of the red CRT is corrected, tighten the four bolts.
-
Page 33: When Finishing The Installation Mode
Installation Adjustments When finishing the installation mode After finishing the installation adjustments procedure, the 'Path selection' returns on the screen. You are now able to start the alignment procedure for the projector. You have the choice between: - Guided Adjustment Procedure - Random Access Adjustment Procedure The result of both procedures will be the same. - Page 34 Installation Adjustments 6-10 5976067 BARCOCINE 7 151299...
-
Page 35: G2 Adjustment
2 image 3 SAFETY G2 ADJUSTMENT NOTICE RISK OF ELECTRICAL SHOCK G2 ADJUSTMENT SHOULD BE PERFORMED BY BARCO PERSONNEL OR BARCO ABL : ON AUTHORIZED DEALERS Select color with ç or è IF QUALIFIED, PRESS <ENTER> TO CONTINUE, OR <ENTER>... - Page 36 G2 Adjustment Check the correct raster adjustment by pressing ENTER to toggle ABL to ON. Repeat these steps if necessary. Continue wiht the other colors. Use the right or left arrow to select the next color. Note : The best result is obtained in a completly dark room or by looking into the lenses, but be aware that brightness and contrast are on a high level.
