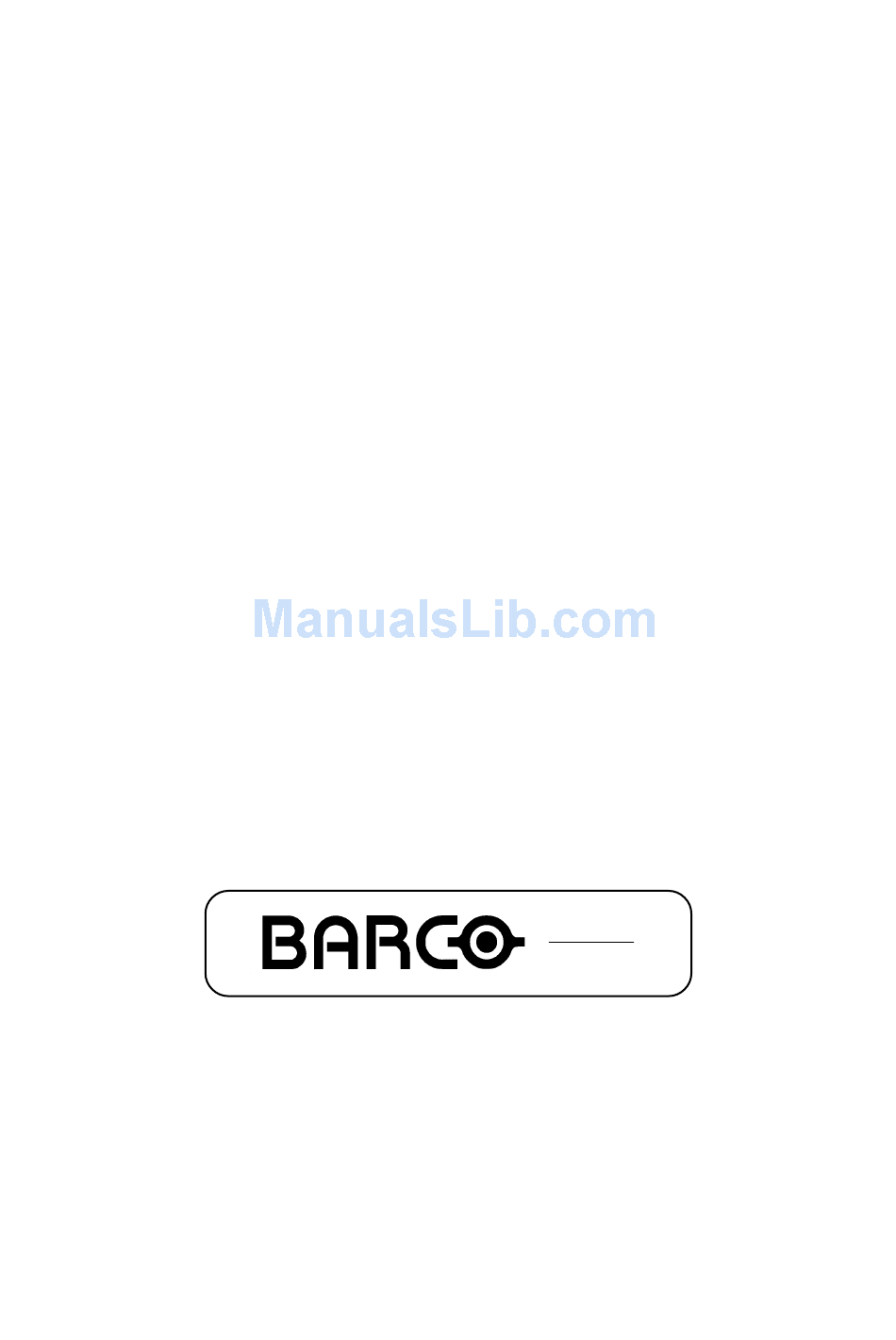

  • Page 1 VISION R9002357 R9002358 OWNER'S MANUAL...
  • Page 2 BARCO PROJECTION SYSTEMS VISION R9002357 R9002358 OWNER'S MANUAL Date : Art. No. : 200499 R5976025A...
  • Page 3 Noordlaan 5 B-8520 Kuurne Belgium Tel : +32/56/368211 Fax : +32/56/351651 E-mail : sales.bps@barco.com Visite Barco at the web : http://www.barco.com Printed in Belgium...
  • Page 4 Table of Contents TABLE OF CONTENTS On safety ..............................1-1 On installation ............................. 1-2 On servicing ..............................1-2 On cleaning ..............................1-2 On repacking ............................... 1-2 On illumination ............................1-2 Rear Panel Terminology ..........................2-1 Front Panel Terminology ..........................2-1 Control panel terminology ..........................

  • Page 5: Table Of Contents

    Table of Contents Picture Tuning ............................. 6-3 Color Balance .............................. 6-3 Sync Fast/Slow Adjustment (only inputs 3,4,5,6) ..................6-3 Decoding ..............................6-4 Chroma Delay ............................. 6-4 Port 2 : Video or S-Video ..........................6-4 Line Doubler ..............................6-4 Geometry Adjustments ..........................6-5 Horizontal Phase Adjustment ........................

  • Page 6: Safety Instructions

    Safety Instructions SAFETY INSTRUCTIONS Before operating this equipment please read this manual thoroughly, and retain it for future reference. Installation and preliminary adjustments should be performed by qualified BARCO personnel or by author- ized BARCO service dealers. 120V AC (120V AC)
  • Page 7 The exclusion zone must be not less than 10 cm (4”) for BARCO Retro Projectors and not less than 40 cm (16”) for all other BARCO projectors. Do not cover the projector with any material while the projector is in operation.

  • Page 8: Location And Function Of Controls

    Location and Function of Controls LOCATION AND FUNCTION OF CONTROLS CO MM PO RT G (S) R S232IN R S232O UT S-VIDEO R EMOTE VID EO (8 00 peripherals) R -Y Y (S ) RGB-S in (R-Y)Y(B-Y)-S IN...
  • Page 9 Location and Function of Controls $'-867 (;,7 67$1'%<(17(5 $'-867 (;,7 (;,7 (17(5 67$1'%< (17(5 3$86( 7(;7 3+$6( 6+$531 7,17 &2/25 %5,*+71 &2175 75(%/( %$/$1&( %$66...
  • Page 10 Location and Function of Controls...
  • Page 11 Location and Function of Controls...
  • Page 12 Connections CONNECTIONS Se e installation instructions before V NOM 120/230 Volt connecting to the supply I MAX 5/2.5 AMP OFF ON FREQ 60/50 Hz See installation instructions before V NOM 120/230 Volt connecting to the supply I MAX 5/2.5 AMP FREQ 60/50 Hz OFF ON (*) If the line double feature is built in, this feature is available via a software on/off toggle.

  • Page 13: Adjustment Mode

    Connections Comp. Video S-Video* RGBS or RGsB** RGB3S or RG3sB*** (R-Y)Y(B-Y)S or (R-Y)Ys(B-Y)**** (R-Y)Y(B-Y)3S or (R-Y)Y3s(B-Y)***** If a line doubler is built in : the default position of this line doubler is ON (active), the C OMM POR T G(S) S-VIDEO (800 peripherals) REMOTE RS232 IN...
  • Page 14 Connections If a line doubler is built in : the default position of this line doubler is ON (active), the video RS232 IN RS232 OUT COMM PORT G(S) (8 00 peri pheral s ) REMOTE S-VIDEO VIDEO R -Y Y(S) input signal will be displayed as a non interlaced image (= improved image stability).
  • Page 15 Connections COMM PORT G(S) S-VIDEO (800 peripherals) R EMOTE RS232 IN RS232 OUT VIDEO Y(S) B -Y 6I 6G P BÃP VU DI Q VU If a line doubler is built in : the default position of this line doubler is ON (active), the video input signal will be displayed as a non interlaced image (= improved image stability).
  • Page 16 Connections GENERAL ACCESS SHARPNESS TINT COLOR BRIGHTNESS CONTRAST Enter ADJUST Select with then <ENTER>. <EXIT> to return Line doubling is possible for component video input sources COMM PORT G(S) S-VIDEO REMOTE RS232 IN RS232 OUT (800 peripherals) VIDEO R -Y Y(S) B -Y on standard line frequency.
  • Page 17 Connections GENERAL ACCESS SHARPNESS TINT COLOR BRIGHTNESS CONTRAST Enter ADJUST Select with then <ENTER>. <EXIT> to return COMM PORT G(S) S-VIDEO RS232 OUT (800 peripherals) REMOTE VIDEO RS232 IN Y( S) B -Y 56 FRQQHFWLRQ...

  • Page 18: Projector Address

    Controlling CONTROLLING : Do not display a stationary image with full brightness and contrast for longer than 20 min., otherwise you risk damage to the CRT's. Note, only important if more than one projector is installed in the room : 1.
  • Page 19 Controlling Ceiling IR sensor Screen Rear side of projector Front of projector $ ' - (;,7 ( ; , 7 ( 1 7 ( 5 (17 ( 5 3 $8 6( 7 ( ;7 3$86 ( 7 (;7 3 + $ 6 ( 3+$6( 6+$53 1 6 + $ 5 3 1...
  • Page 20 Controlling QSPE@8UPSÃ 699S@TT Comp. Video S-Video RGBS or RGsB RGB3S or RG3sB (R-Y)Y(B-Y)S or (R-Y)Ys(B-Y) (R-Y)Y(B-Y)3S or (R-Y)Y3s(B-Y) 5976025A BARCOVISION 708 200499...
  • Page 21 Controlling General access $'-867 (;,7 67$1'%< (17(5 GENERAL ACCESS SHARPNESS TINT COLOR BRIGHTNESS CONTRAST Enter ADJUST Select with then <ENTER>. <EXIT> to return Source 2 Fh= 15.6 kHz Fv= 50 Hz input not available WARNING input not available WARNING source not available General access $'-867...
  • Page 22 Controlling 'brightness' BRIGHTNESS 5976025A BARCOVISION 708 200499...
  • Page 23 Controlling 5976025A BARCOVISION 708 200499...

  • Page 24: Start Up Of The Adjustment Mode

    Start up Adjustment mode START UP OF THE ADJUSTMENT MODE $'-867 (;,7 General access menu 67$1'%< (17(5 enter ADJUST GENERAL ACCESS SHARPNESS TINT COLOR BRIGHTNESS CONTRAST Enter ADJUST Select with then <ENTER>. <EXIT> to return GENERAL ACCESS SHARPNESS TINT COLOR BRIGHTNESS CONTRAST quit ADJUST...
  • Page 25 Start up Adjustment mode WARNING RISK OF ELECTRICAL SHOCK NO USER ADJUSTABLE PARTS INSIDE 'Wrong password !!!' COMPOSE PASSWORD é ê è ç...
  • Page 26 Random Access Adjustment Mode RANDOM ACCESS ADJUSTMENT MODE ADJUSTMENT MODE "RANDOM ACCESS" RANDOM ACCESS...
  • Page 27 Random Access Adjustment Mode Genlocked pattern : internally generated cross hatch pattern, locked on the external source. Internal # pattern : internally generated cross hatch pattern and locked on internal generated sync signals. (No external source necessary) Note: The menus in this manual are created for an external source, connected to one of the inputs, and the 'Genlocked Pattern' is selected.

  • Page 28: Picture Tuning

    Random Access Adjustment Mode RANDOM ACCESS ADJUSTMENT MODE PICTURE TUNING Picture tuning Color Balance PICTURE TUNING COLOR BALANCE Fixed Color Balance. COLOR BALANCE one of the 4 preprogrammed color temperatures Custom Color Balance. é ê é ê è ç é ê...

  • Page 29: Decoding

    Random Access Adjustment Mode Decoding PICTURE TUNING DECODING : EBU é ê Chroma Delay PICTURE TUNING é ê CHROMA DELAY : ON Port 2 : Video or S-Video PICTURE TUNING é ê Port 2 : Video Line Doubler PICTURE TUNING LINE DOUBLER : ON é...
  • Page 30 Random Access Adjustment Mode é ê RANDOM ACCESS ADJUSTMENT MODE GEOMETRY GEOMETRY é ê GEOMETRY H PHASE >< H PHASE >< H PHASE >< H PHASE...

  • Page 31: Raster Shift Adjustment

    Random Access Adjustment Mode Raster Shift Adjustment GEOMETRY RASTER SHIFT CAUTION It is necessary to look into the lenses to perform these adjustments. To avoid eye discomfort while looking into the lenses, reduce the contrast and gradually increase the brightness level until the raster becomes visible on the face of the CRT.
  • Page 32 Random Access Adjustment Mode GEOMETRY LEFT-RIGHT (E-W) LEFT-RIGHT (E-W) é ê LEFT-RIGHT (E/W) Only the green image is displayed while making left-right adjust- ments. The red and blue images will automatically be corrected in the same manner. Convergence corrections are automatically disabled for the duration of these adjustments.

  • Page 33: Seagull Correction

    Random Access Adjustment Mode Seagull correction GEOMETRY LEFT-RIGHT (E-W) é ê SEAGULL CORRECTION LEFT-RIGHT (E-W) ç è SEAGULL CORRECTION GEOMETRY TOP-BOTTOM (N-S) é ê Only the green image is displayed while making top-botton adjustments. The red and blue TOP-BOTTOM (N-S) images will automatically be corrected in the same manner.

  • Page 34: Seagull Correction

    Random Access Adjustment Mode é ê Corrects for curvature of the horizontal lines in the middle of the image. Corrects the tilting of the horizontal lines in the middle of the image. TOP-BOTTOM Corrects for curvature of the horizontal lines on the upper side Corrects the keystone geometry correction of the hor.
  • Page 35 Random Access Adjustment Mode é ê GEOMETRY è ç SIZE é ê H SIZE Hint : In order to avoid loss of resolution in the projected image and to ensure maximum CRT longevity, do not use an excessively small horizontal size setting. Ideal Ideal Image too...

  • Page 36: Blanking Adjustments

    Random Access Adjustment Mode GEOMETRY BLANKING é ê BLANKING Top blanking Right blanking Left blanking Bottom blanking é ê Adjustment of the blanking on the of the image BLANKING Adjustment of the blanking on the bottom of the image Adjustment of the blanking on the left side Adjustment of the blanking on the right side...
  • Page 37 Random Access Adjustment Mode RANDOM ACCESS ADJUSTMENT MODE CONVERGENCE CONVERGENCE CONVERGENCE CONVERGE ADJUSTMENT green image red image...

  • Page 38: Service Mode

    Service Mode SERVICE MODE é ê ADJUSTMENT MODE SERVICE SERVICE MODE...

  • Page 39: Projector Set-Up

    Service Mode SERVICE MODE é ê PROJECTOR SET-UP Identification PROJECTOR SET-UP é ê Total Run Time é ê PROJECTOR SET-UP...

  • Page 40: Change Password

    Service Mode Change password é ê PROJECTOR SET-UP PASSWORD ç è CHANGE PASSWORD Change Language PROJECTOR SET-UP CHANGE LANGUAGE LANGUAGE é ê é ê Change Projector Address PROJECTOR SET-UP é ê CHANGE PROJECTOR ADDRESS ç è PROJECTOR ADDRESS...

  • Page 41: Change Baudrate

    Change baudrate PROJECTOR SET-UP é ê CHANGE BAUDRATE BAUDRATE é ê Power up mode PROJECTOR SET-UP operating é ê BARCO_logo PROJECTOR SET-UP WARNING : Continuous use of the BARCO logo damages the RED CRT. BARCO LOGO é ê BARCO LOGO...

  • Page 42: Memory Management

    Service Mode SERVICE MODE é ê MEMORY MANAGEMENT MEMORY MANAGEMENT Copy a block MEMORY MANAGEMENT é ê COPY A BLOCK é ê COPY MODE COPY BLOCK MEMORY MANAGEMENT DELETE A BLOCK Deleting block by block DELETE MODE delete a block' é...

  • Page 43: Deletion Of All Blocks

    Service Mode Deletion of all blocks MEMORY MANAGEMENT é ê DELETE ALL BLOCKS DELETE ALL BLOCK All settings to midposition MEMORY MANAGEMENT é ê ALL SETTINGS TO MIDPOS SET TO MIDPOSITION Undo all settings to midpos MEMORY MANAGEMENT é ê UNDO ALL SETTINGS TO MIDPOS...

  • Page 44: R & B Convergence Mid

    Service Mode R & B convergence mid MEMORY MANAGEMENT é ê R & B CONVERGENCE MID R & B CONVERGENCE MID Undo R & B convergence mid MEMORY MANAGEMENT é ê UNDO R & B CONVERGENCE MID Green convergence mid MEMORY MANAGEMENT é...

  • Page 45: Common Settings

    COMMON SETTINGS COMMON SETTINGS G2 Adjustment COMMON SETTINGS é ê G2 ADJUSTMENT 'G2 adjustment should be performed by BARCO personnel, or BARCO authorized dealers'. SAFETY NOTICE RISK OF ELECTRICAL SHOCK CRT run in cycle COMMON SETTINGS CRT RUN IN CYCLE é...

  • Page 46: Projector Warm Up

    Service Mode Projector warm up COMMON SETTINGS é ê PROJECTOR WARM UP PROJECTOR WARM UP SERVICE MODE é ê I2C DIAGNOSTICS é ê I2C DIAGNOSTICS COMMON SETTINGS MEMORY BANKS é ê How to create a new memory bank ?
  • Page 47 Service Mode How to recall a specific memorybank for the actual source ?

  • Page 48: Messages, Warnings And Failures

    Messages, warnings and failures MESSAGES, WARNINGS AND FAILURES 'check input signal or select new source' 'bar scale indication' 'go to 'opera- stand-by' tional mode' 'bar scale indication' 'opera- tional mode' 'ADDRESS' 'confirm message'...
  • Page 49 Messages, warnings and failures...
  • Page 50 Adjustment Blocks and Source Numbers 90-99 ADJUSTMENT BLOCKS AND SOURCE NUMBERS 90 - 99 “adjustment block” Block Header example of block header...
