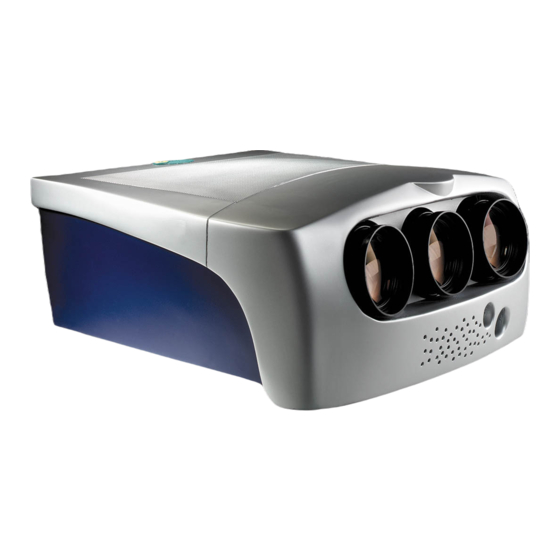

- Page 1 BARCO PROJECTION SYSTEMS CINE 6 R9002372 OWNER'S MANUAL Date : 31012002 Rev : 01 Art. No. : R5976381...
- Page 2 Produced by BARCO NV, Jan. 2002. All rights reserved. Trademarks are the rights of their respective owners. BARCO n.v./Projection Systems Noordlaan 5 B-8520 Kuurne Belgium Tel : +32/56/368211 Fax : +32/56/351651 E-mail : sales.bps@barco.com Visit Barco at the web : http://www.barco.com Printed in Belgium...
-
Page 3: Table Of Contents
Random Access Adjustment mode selection menu ..................... 6-2 Picture Tuning ................................6-2 Line Multiplier ................................6-3 Motion Processing ..............................6-3 Video Equalizing ................................. 6-3 Noise Reduction ................................ 6-4 Contrast Enhancement .............................. 6-4 Split Screen ................................6-4 R5976381.01 BARCO CINE6 31012002 __________________________________________________________________________... - Page 4 All Settings to midpos ............................... 7-7 Undo All settings to Midpos ............................. 7-7 R&B Convergence Mid .............................. 7-8 Undo R&B Convergence Mid ............................ 7-8 Common Settings ..............................7-9 I2C Diagnostics ............................... 7-15 i - 2 __________________________________________________________________________ R5976381.01 BARCO CINE6 31012002...
- Page 5 How to activate the tuner mode ..........................A-1 Tuner Set-up ................................A-2 Broadcasting System ..............................A-2 Auto Search ................................A-3 Manual Search ................................A-3 Organise Channel List .............................. A-4 Bilingual ..................................A-5 Teletext ..................................A-5 R5976381.01 BARCO CINE6 31012002 __________________________________________________________________________...
-
Page 6: Safety Instructions
INSTALLATION INSTRUCTIONS Before operating this equipment please read this manual thoroughly, and retain it for future reference. Installation and preliminary adjustments should be performed by qualified BARCO personnel or by authorized BARCO service dealers. OWNER’ S RECORD The part number and serial number are located at the back side of the projector. Record these numbers in the spaces provided below. -
Page 7: On Safety
Operating AC power voltage of the projector: BARCO CINE 6 : Art. No. R9002372 (With Limopro + PFC 85Vac to 250Vac) 2. This product is equipped with a 3-wire grounding plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. -
Page 8: On Servicing
Replacement parts - When replacement parts are required, be sure the service technician has used original BARCO replace- ment parts or authorized replacement parts which have the same characteristics as the BARCO original part. Unauthorized substitutions may result in degraded performance and reliability, fire, electric shock or other hazards. - Page 10 13. RS 232 : Allows connection to the serial port of a Computer for controlling the projector. Front Panel Terminology IR SENSOR : Receiver for control signals transmitted from the RCU. IRIS Camera : ( optional ) R5976381.01 BARCO CINE6 31012002 __________________________________________________________________________...
-
Page 11: Locations And Functions Of Control
- variable adjustment speed : when pushing continuously on the arrow keys or the picture keys, the adjustment will be executed in an accelerated fashion. Local Keypad ADJUST EXIT ENTER STANDBY stand-by pause/park sharpness tint color brightness contrast 2 - 2 _________________________________________________________________________ R5976381.01 BARCO CINE6 31012002... - Page 12 RC operating indication : lights up when a button on the remote control is pressed. (This is a visual indicator to check the operation of the remote control). Function keys Direct access keys for certain menu functions. R5976381.01 BARCO CINE6 31012002 __________________________________________________________________________...
-
Page 13: Connections
Sync. accepted on both positive and negative polarities for 2 and 3 Composite Video Connecting a Composite Video source Composite video signals from a VCR, OFF air signal, decoder, etc. TV Tuner Audio Amplifier V C R R5976381.01 BARCO CINE6 31012002 __________________________________________________________________________... -
Page 14: Connecting A S-Video Source
Always use an interface when a computer and local monitor have to be connected to the projector. Examples of interfaces which can be applied : Multifunctional Analog Interface Kit R9828121 (230V) (MAGIK) R9828128 (120V) TWIN interface R9828960 (120 - 230V) 4 - 2 _________________________________________________________________________ R5976381.01 BARCO CINE6 31012002... -
Page 15: Connecting A Component Video Source
The projector automatically determines the presence of a tuner. Connect the RF signal to the RF input of the projector. Connect the audio output to an audio amplifier. TV Antenna or Cable Network Audio Amplifier R5976381.01 BARCO CINE6 31012002 __________________________________________________________________________... -
Page 16: Peripheral Equipment
IR receiver and the projector or the RCVDS. The infrared control information from the RCU is sent to the IR Remote Receiver. The IR Remote Receiver 800 displays the selected source on a 7-segment display. Order No. R9827515. 4 - 4 _________________________________________________________________________ R5976381.01 BARCO CINE6 31012002... -
Page 17: Controlling
Battery Compartment Cover The projector can be controlled with a. The RCU b. The hardwired RCU (cable not included) c. The local keypad. Controlling the projector with the RCU and the hardwired RCU is the same. R5976381.01 BARCO CINE6 31012002 __________________________________________________________________________... -
Page 18: How To Use The Rcu
The projector with the corresponding address will respond to that RCU. How to display the projector address. Press the ADDRESS key (recessed key on the RCU) with a pencil. The projector's address will be displayed in a 'Text box'. PROJECTOR ADDRESS 4 - 2 _________________________________________________________________________ R5976381.01 BARCO CINE6 31012002... -
Page 19: How To Program An Address Into The Rcu
When a valid source number is selected, the projector will display this source or it will wait until the source becomes available. A message Source not available will be displayed for a short time. Warning source not available R5976381.01 BARCO CINE6 31012002 __________________________________________________________________________... -
Page 20: Picture Controls
Press the ADJUST key to display the GENERAL ACCESS menu. Use the arrow keys to highlight the desired control and press ENTER to select. GENERAL ACCESS SHARPNESS TINT COLOR BRIGHTNESS CONTRAST Enter ADJUST Select with then <ENTER> <EXIT> to return 4 - 4 _________________________________________________________________________ R5976381.01 BARCO CINE6 31012002... -
Page 21: The Pause Key
The MUTE key stops the sound when pressed. Pressing a second time restarts the sound. Freeze Key When pressed on source 1 (Comp video) or source 2 (S-video), the current frame is frozen and displayed. On pressing again the programme continues. R5976381.01 BARCO CINE6 31012002 __________________________________________________________________________... -
Page 22: Start Up Of The Adjustment Mode
While in the ADJUSTMENT MODE, the arrow keys (RCU) or the control keys (local keypad) can be used to make menu selections and also horizontal and vertical adjustments. The ENTER and EXIT keys can be used to move forward and backwards through the menu structure. The ADJUST key can be used to terminate the Adjustment Mode. R5976381.01 BARCO CINE6 31012002 __________________________________________________________________________... - Page 23 Some items in the Adjustment mode are password protected. while selecting such an item, the projector asks you to enter your password. (Password protection is only available when the Password strap on the controller module is in the ON position. Contact a BARCO authorized technician when no password is requested during the adjustment procedure and password protection is desired.) Your password contains 4 digits.
-
Page 24: Random Access Adjustment Mode
H CENTERLINE SKEW SELECTED SOURCE GENLOCKED PATTERN TOP BOW INTERNAL PATTERN TOP KEYSTONE Appears only when a source is connected BOTTOM BOW H & V SIZE BOTTOM KEYSTONE V LINEARITY BLANKING CONVERGENCE BOTTOM COLOR SELECT LEFT RIGHT 5976381.01 BARCO CINE6 31012002 ___________________________________________________________________________... -
Page 25: Internal Cross-Hatch Pattern
PORT2 : VIDEO - Line Multiplier COLOR SELECT LINE MULTIPLIER : ON Select with é or ê Select with é or ê then <ENTER> <ENTER> to accept <EXIT> to return. <EXIT> to return. menu 1 menu 2 ____________________________________________________________________________ R5976381 BARCO CINE6 31012002... -
Page 26: Line Multiplier
FACTORY PRESET : x Select with ç or è ADVANCED SETTINGS Adjust or scroll presets Select with é or ê with é or ê then <ENTER> <EXIT> to return. <EXIT> to return. menu 2 menu 1 5976381.01 BARCO CINE6 31012002 ___________________________________________________________________________... -
Page 27: Noise Reduction
Press ENTER to toggle between ON and OFF. LINE MULTIPLIER : ON MOTION PROCESSING : ON VIDEO EQUALIZING NOISE REDUCTION CONTRAST ENHANCEMENT SPLIT SCREEN : OFF ADVANCED SETTINGS Select with é or ê then <ENTER> <EXIT> to return. menu 1 ____________________________________________________________________________ R5976381 BARCO CINE6 31012002... -
Page 28: Advanced Settings
CLAMP GATING : OFF LIMO PRO OPTIONS FACTORY PRESET WARNING : ADVANCED Luminance ADJUSTMENT SHOULD BE Delay PERFORMED ONLY BY QUALIFIED PERSONNEL Select with é or ê then <ENTER> <EXIT> to return. menu 2 menu 1 5976381.01 BARCO CINE6 31012002 ___________________________________________________________________________... -
Page 29: Vertical Sync Reference
Select with é or ê WARNING : ADVANCED ADJUSTMENT SHOULD BE then <ENTER> PERFORMED ONLY BY QUALIFIED <EXIT> to return. PERSONNEL menu 2 Select with é or ê then <ENTER> <EXIT> to return. menu 1 ____________________________________________________________________________ R5976381 BARCO CINE6 31012002... -
Page 30: Coring
LINE MULTIPLIER CORING menu 2 Warning : advanced adjustment should be performed only by qualified personnel ! Select with é or ê then <ENTER> <EXIT> to return. menu 1 Adjust CTI for max colour transient improvement 5976381.01 BARCO CINE6 31012002 ___________________________________________________________________________... -
Page 31: Factory Preset
Use the up and down arrow keys for RED or left and right arrow keys for the BLUE Select with arrow keys, cutoff. Same for Green. then <ENTER>, When the color balance is adjusted, press EXIT to return to the PICTURE TUNING you can adjust red with and blue with menu. ____________________________________________________________________________ R5976381 BARCO CINE6 31012002... -
Page 32: Gamma
BLUE RED AND GREEN BLUE AND GREEN RED AND BLUE ENTER continues with the selected color or color combination. EXIT returns to the Random Access Adjustment main menu. Select with then <ENTER>; <EXIT> to return 5976381.01 BARCO CINE6 31012002 ___________________________________________________________________________... -
Page 33: Geometry Adjustments
Adjust the H phase control until the middle of the projected image is equal with the centre of the ' >< ' icon. Note : If the genlocked pattern was selected, the external source will be displayed. 6-10 ____________________________________________________________________________ R5976381 BARCO CINE6 31012002... -
Page 34: Raster Shift Adjustment
RASTER SHIFT LEFT-RIGHT (E-W) ENTER will select green raster shift adjustment. TOP-BOTTOM(N-S) H & V SIZE EXIT returns to Random Access Adjustment mode V LINEARITY menu. BLANKING Select with then <ENTER> <EXIT> to return 5976381.01 BARCO CINE6 31012002 ___________________________________________________________________________ 6-11... - Page 35 To start the adjustment, use the arrow keys to highlight Raster Shift and press Enter to display the green raster on the CRT. correct raster position wrong raster position Press EXIT to return to the Geometry menu. 6-12 ____________________________________________________________________________ R5976381 BARCO CINE6 31012002...
-
Page 36: Left-Right (East-West) Adjustments
Side Bow Corrects for the curvature of the vertical lines at the sides of the image Side Keystone Corrects for the tilting of the vertical lines at the sides of the image 5976381.01 BARCO CINE6 31012002 ___________________________________________________________________________ 6-13... -
Page 37: Top-Bottom (North-South) Adjustments
Bottom Bow Corrects for curvature of Horizontal lines at the bottom of the image Bottom Keystone Corrects for the tilting of Horizontal lines at the bottom of the image 6-14 ____________________________________________________________________________ R5976381 BARCO CINE6 31012002... -
Page 38: Horizontal & Vertical Size Adjustment
Random Access Adjustment menu. LEFT-RIGHT (E-W) TOP-BOTTOM (N-S) ADJUST returns to operational mode. H & V SIZE V LINEARITY BLANKING EXIT will return to Geometry menu. Select with then <ENTER> <EXIT> to return V LINEARITY 5976381.01 BARCO CINE6 31012002 ___________________________________________________________________________ 6-15... -
Page 39: Blanking Adjustment
Bottom blanking Left Blanking Left blanking Right blanking If the internal # pattern was selected, the pattern remains on the screen. If the genlocked pattern was selected, the external source will be displayed. Bottom Blanking 6-16 ____________________________________________________________________________ R5976381 BARCO CINE6 31012002... - Page 40 EXIT returns to the Blanking menu. Blanking adjustment at the Top of the image Blanking adjustment at the Bottom of the image Blanking adjustment at the Left of the image Blanking adjustment at the Right of the image 5976381.01 BARCO CINE6 31012002 ___________________________________________________________________________ 6-17...
-
Page 41: Convergence Adjustment
ENTER to move the box to another zone or EXIT to return to the Convergence menu. ENTER toggles the arrow keys between zone se- lection and zone adjustment . CONVERGE EXIT returns to convergence menu ADJUSTMENT green image red image 6-18 ____________________________________________________________________________ R5976381 BARCO CINE6 31012002... -
Page 42: Function Keys
F1 : IRIS pick-up then <ENTER> F2 : Convergence Red on Green <EXIT> to return. F3 : Convergence Blue on Green F4 : H & V Size F5 : Color Balance <EXIT> to return. 5976381.01 BARCO CINE6 31012002 ___________________________________________________________________________ 6-19... -
Page 43: Service Mode
DELETE A BLOCK DELETE ALL BLOCKS MEMORY MANAGEMENT ALL SETTINGS TO MIDPOS R & B CONVERGENCE MID G2 ADJUSTMENT CRT RUN IN CYCLE COMMON SETINGS PROJECTOR WARM UP CRT DRIVE MODE MEMORY BANK OFFSET CORRECTION I2C DIAGNOSTICS R5976381.01 BARCO CINE6 31012002 __________________________________________________________________________... -
Page 44: Total Run Time
The status can be changed by pressing the TEXT key once on the RCU. Serial No. : Indicates the manufacturing serial number of the projector. This number can be useful when technical assistance is required. 7 - 2 _________________________________________________________________________ R5976381.01 BARCO CINE6 31012002... - Page 45 CHANGE PROJECTOR ADDRESS CHANGE BAUDRATE POWERUP MODE : Standby LANGUAGE COMMON ADDRESS BARCO LOGO ENGLISH ESPANOL Select with FRANCAIS then <ENTER> DEUTSCH <EXIT> to return Select new language with or then <ENTER> <EXIT> to return R5976381.01 BARCO CINE6 31012002 __________________________________________________________________________...
- Page 46 The current baud rate will be highlighted in the menu. To change the baud rate, use the arrow keys to select the desired baud rate and press ENTER to accept this baud rate. Pressing EXIT in this menu returns to PROJECTOR SETUP menu. 7 - 4 _________________________________________________________________________ R5976381.01 BARCO CINE6 31012002...
-
Page 47: Power Up Mode
<EXIT> to return BARCO LOGO By selecting this function, the BARCO LOGO can be enabled and positioned anywhere on the screen. Highlight 'BARCO LOGO' using the arrow keys and then press ENTER. The BARCO LOGO menu is displayed. PROJECTOR SET-UP... -
Page 48: Copy A Block
Active block nr. 1 Select with then <ENTER> <EXIT> to return Select with Scroll with <ENTER> to delete The selected block <EXIT> to return will be deleted ! <ENTER> to Confirm <EXIT> to cancel 7 - 6 _________________________________________________________________________ R5976381.01 BARCO CINE6 31012002... -
Page 49: Deletion Of All Blocks
When Undo is selected, all settings are restored to their previous settings. MEMORY MANAGEMENT COPY A BLOCK DELETE A BLOCK DELETE ALL BLOCKS UNDO MIDPOSITION R & B CONVERGENCE TO MID Select with then <ENTER> <EXIT> to return R5976381.01 BARCO CINE6 31012002 __________________________________________________________________________... -
Page 50: R&B Convergence Mid
Again a confirmation screen will be displayed first. Press ENTER to confirm. CONVERGENCE OFF Press EXIT to cancel the procedure. convergence setting in current block will be overwritten ! <ENTER> to Confirm <EXIT> to cancel 7 - 8 _________________________________________________________________________ R5976381.01 BARCO CINE6 31012002... -
Page 51: Common Settings
Select with EXIT returns to the Common settings menu. then <ENTER> ADJUST returns to the Operational mode. <EXIT> to return 'G2 adjustment should be performed by BARCO personnel, or BARCO authorized SAFETY dealers'. NOTICE RISK OF ELECTRICSAL SHOCK If you are qualified, press ENTER to continue. if not qualified, press EXIT to return to the Commmon G2 ADJUSTMENT SHOULD BE settings menu. - Page 52 Boost can be selected with arrow keys. Press ENTER to select mode. THE CRT'S ! Select with Permanent Boost gives the Brightest Image but a reduced life for CRT. then <ENTER> <EXIT> to return Memory Bank Toggle to ON or OFF 7 - 1 0 _________________________________________________________________________ R5976381.01 BARCO CINE6 31012002...
- Page 53 V MIDLINE BOW OFFSET (VP) <EXIT> to return NS BOW OFFSET (HPVS) NS KEYSTONE OFFSET (HSVS) WARNING : PERFORMED ALL CORRECTIONS IN THE ORDER GIVEN ABOVE ! Select with then <ENTER> <EXIT> to return R5976381.01 BARCO CINE6 31012002 __________________________________________________________________________ 7-11...
- Page 54 V MIDLINE BOW OFFSET (VP) NS BOW OFFSET (HPVS) NS KEYSTONE OFFSET (HSVS) WARNING : PERFORMED ALL CORRECTIONS IN THE ORDER GIVEN ABOVE ! Select with then <ENTER> <EXIT> to return Centre line Yellow screen 7 - 1 2 _________________________________________________________________________ R5976381.01 BARCO CINE6 31012002...
- Page 55 Select with then <ENTER> <EXIT> to return Centre line ADJUST WITH ARROW KEYS Green screen LEFT / RIGHT KEYS Centre line HPVS SIDES Green screen UP / DOWN KEYS Centre line HPVS CENTER Green screen R5976381.01 BARCO CINE6 31012002 __________________________________________________________________________ 7-13...
- Page 56 UP / DOWN KEYS Centre line HSVS CENTER Green screen THIS COMPLETES THE ADJUSTMENT The offset adjustment can be adjusted for each block in the memory and the settings copied into new sources. 7 - 1 4 _________________________________________________________________________ R5976381.01 BARCO CINE6 31012002...
-
Page 57: I2C Diagnostics
When no errors are detected, the following message will appear on the screen : "No errors on I2C-bus detected". I2C DIAGNOSTICS Failure : addr IC number mod. name IC200 DECODER Select with then <ENTER> <EXIT> to return R5976381.01 BARCO CINE6 31012002 __________________________________________________________________________ 7-15... -
Page 58: Options
= data information When the cable is ready, plug one side in the remote control and the other side in the connector on the rear of the projector labelled ‘ remote’ . R5976381.01 BARCO CINE6 31012002 __________________________________________________________________________... -
Page 59: Adapter And Communication Cables
It offers the possibility to connect and switch up to 5 different Video sources, 3 different S-Video sources and 1 RGB Analog source to a BARCO projector. In addition, the audio signal proper to the source, can be switched to an audio amplifier. -
Page 60: Appendix A : Tuner Mode
When a new channel is displayed, a text box appears on the screen with preselection number, the channel name (when entered) and the sound reproduction. When you want to leave the tuner mode, press the BARCO key again. 2. Using the local keypad. -
Page 61: Tuner Setup
Broadcasting System The broadcasting system is the way the signals are transmitted through the air. Barco designed 4 different tuners to fulfil the different broadcasting systems worldwide. Changing the broadcasting system is only necessary for the BG/L system. BG system : European standard. -
Page 62: Auto Search
Select with X X X, X X X MHz then <ENTER> PRESELECTION : 1 <EXIT> to return. to search for fine tuning. Program the preselection with numeric keys, then <ENTER> to store Press <EXIT> to return. R5976381.01 BARCO CINE6 31012002 _________________________________________________________________________... - Page 63 When the name is programmed, press EXIT to return to the channel list. COMPOSE X X X X X Edit character : X Select with then <ENTER>; <EXIT> to return A - 4 _________________________________________________________________________ R5976381.01 BARCO CINE6 31012002...
-
Page 64: Bilingual
The selected sub-page will be displayed on the screen and remains on the screen. This page will frequently updated. HELP To display concealed information. Some teletext pages contain concealed information such as answers to puzzles. To reveal this information press the HELP key. R5976381.01 BARCO CINE6 31012002 _________________________________________________________________________...
