10.2

Mechanical Specifications

10.2.1

Boxed Processor Cooling Solution Dimensions

This section documents the mechanical specifications of the boxed processor. The
boxed processor will be shipped with an unattached fan heatsink.
boxed processor fan heatsink.
Clearance is required around the fan heatsink to ensure unimpeded airflow for proper
cooling. The physical space requirements and dimensions for the boxed processor with
assembled fan heatsink are shown in
view). The airspace requirements for the boxed processor fan heatsink must also be
incorporated into new baseboard and system designs. Airspace requirements are
shown in
(marked with alphabetic designations) to clarify relative dimensioning.

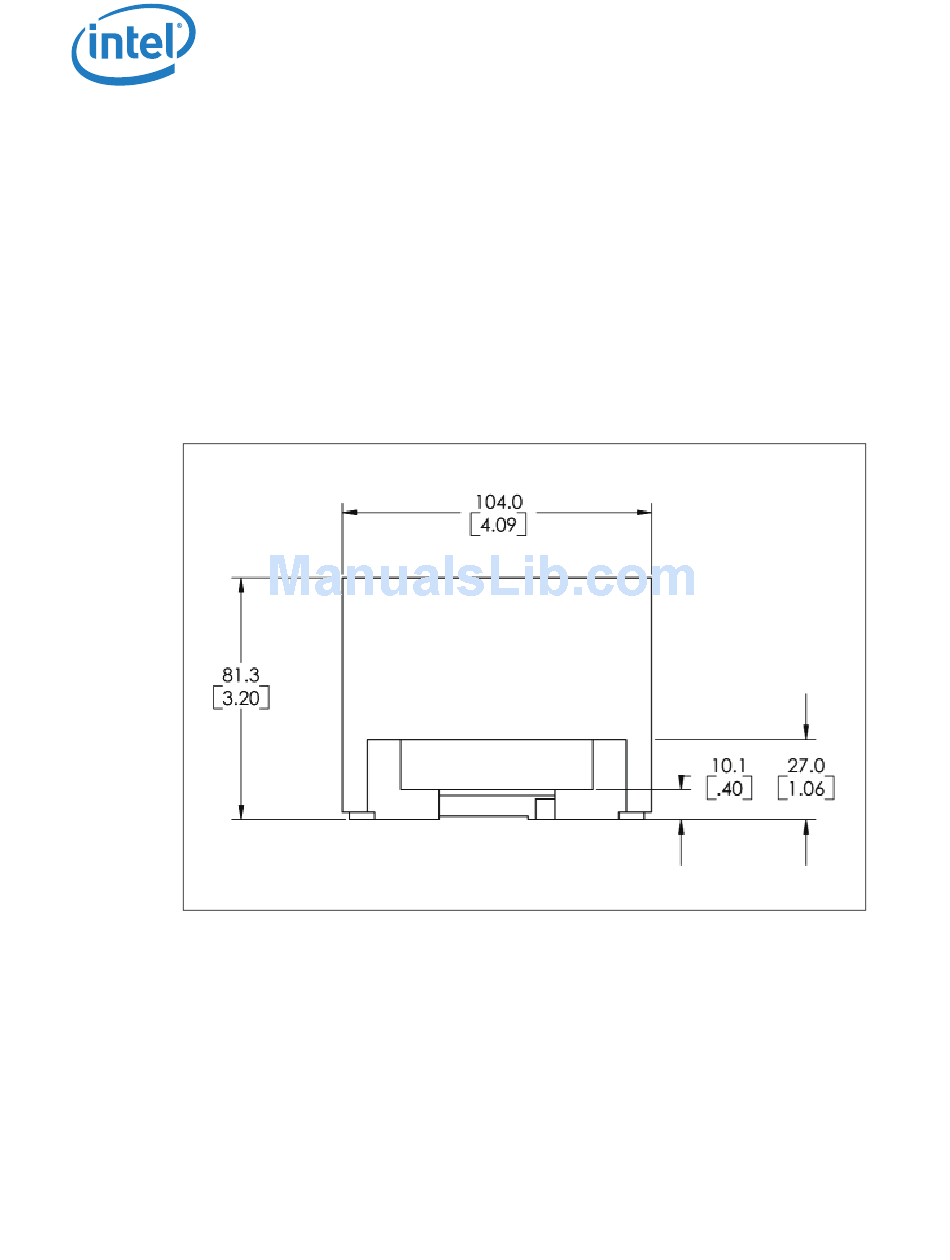

Figure 10-2. Space Requirements for the Boxed Processor (side view)
66
Figure 10-7 and Figure
Figure 10-2 (side view), and
10-8. Note that some figures have centerlines shown
Thermal/Mechanical Specifications and Design Guidelines
Boxed Processor Specifications
Figure 10-1 shows a
Figure 10-3 (top
