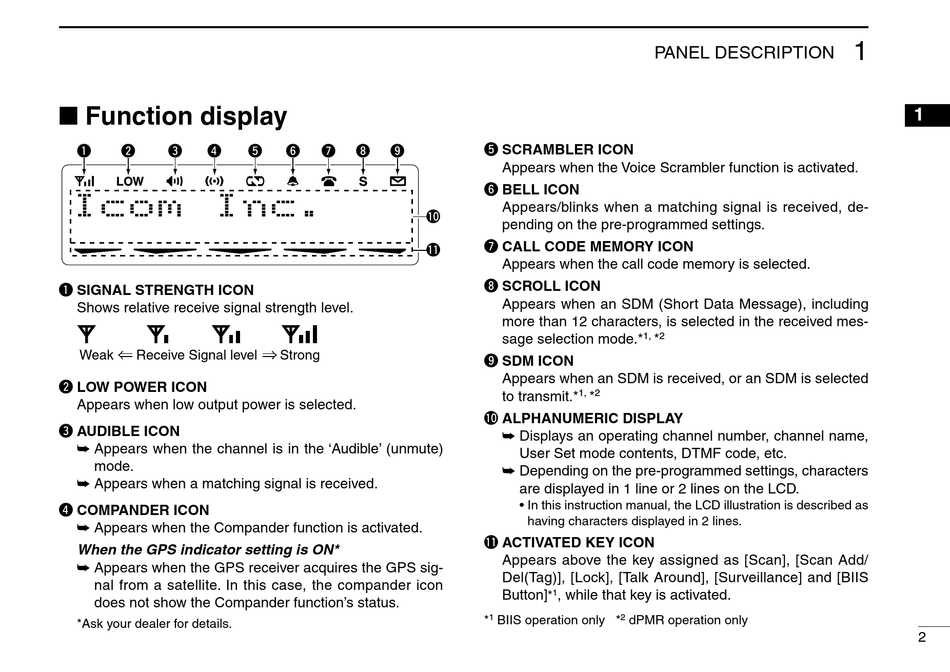

■ Function display

q w e r
I c o m I n c .
q SIGNAL STRENGTH ICON
Shows relative receive signal strength level.
Weak Receive Signal level
w LOW POWER ICON
Appears when low output power is selected.
e AUDIBLE ICON
➥ Appears when the channel is in the 'Audible' (unmute)
mode.
➥ Appears when a matching signal is received.
r COMPANDER ICON
➥ Appears when the Compander function is activated.
When the GPS indicator setting is ON*
➥ Appears when the GPS receiver acquires the GPS sig-
nal from a satellite. In this case, the compander icon
does not show the Compander function's status.
*Ask your dealer for details.
t y u i o
!0
!1
Strong
PANEL DESCRIPTION
t SCRAMBLER ICON
Appears when the Voice Scrambler function is activated.
y BELL ICON
Appears/blinks when a matching signal is received, de-
pending on the pre-programmed settings.
u CALL CODE MEMORY ICON
Appears when the call code memory is selected.
i SCROLL ICON
Appears when an SDM (Short Data Message), including
more than 12 characters, is selected in the received mes-
sage selection mode.* 1, * 2
o SDM ICON
Appears when an SDM is received, or an SDM is selected
to transmit.* 1, * 2
!0 ALPHANUMERIC DISPLAY
➥ Displays an operating channel number, channel name,
User Set mode contents, DTMF code, etc.
➥ Depending on the pre-programmed settings, characters
are displayed in 1 line or 2 lines on the LCD.
• In this instruction manual, the LCD illustration is described as
having characters displayed in 2 lines.
!1 ACTIVATED KEY ICON
Appears above the key assigned as [Scan], [Scan Add/
Del(Tag)], [Lock], [Talk Around], [Surveillance] and [BIIS
Button] , while that key is activated.
1
*
* 1 BIIS operation only * 2 dPMR operation only
