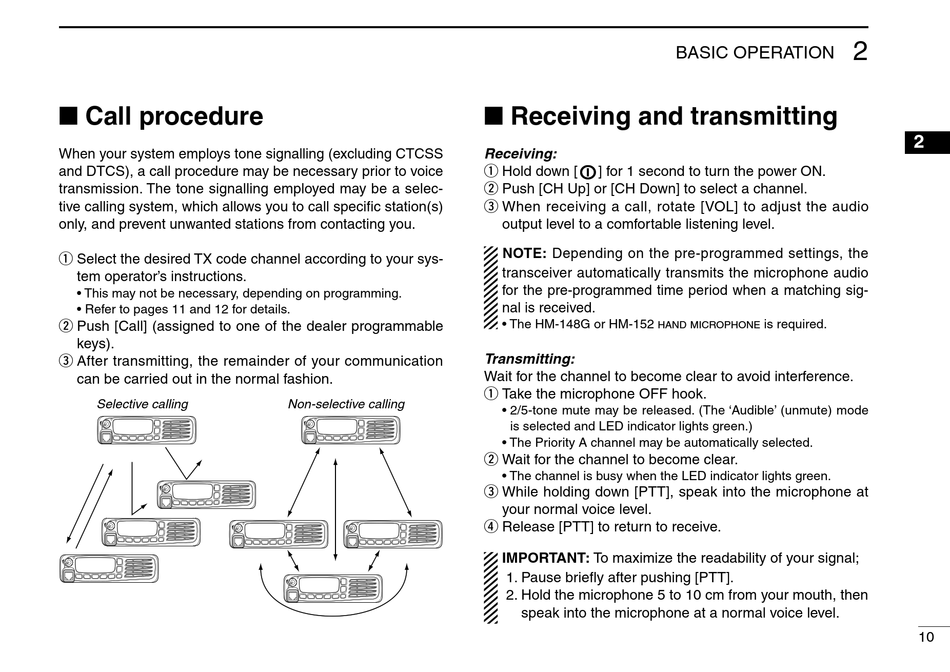

■ Call procedure

When your system employs tone signalling (excluding CTCSS
and DTCS), a call procedure may be necessary prior to voice
transmission. The tone signalling employed may be a selec-
tive calling system, which allows you to call specific station(s)
only, and prevent unwanted stations from contacting you.
q Select the desired TX code channel according to your sys-
tem operator's instructions.
• This may not be necessary, depending on programming.
• Refer to pages 11 and 12 for details.
w Push [Call] (assigned to one of the dealer programmable
keys).
e After transmitting, the remainder of your communication
can be carried out in the normal fashion.
Selective calling Non-selective calling

■ Receiving and transmitting

Receiving:
q Hold down [ ] for 1 second to turn the power ON.
w Push [CH Up] or [CH Down] to select a channel.
e When receiving a call, rotate [VOL] to adjust the audio
output level to a comfortable listening level.
NOTE: Depending on the pre-programmed settings, the
transceiver automatically transmits the microphone audio
for the pre-programmed time period when a matching sig-
nal is received.
• The HM-148G or HM-152
hand microphone
Transmitting:
Wait for the channel to become clear to avoid interference.
q Take the microphone OFF hook.
• 2/5-tone mute may be released. (The 'Audible' (unmute) mode
is selected and LED indicator lights green.)
• The Priority A channel may be automatically selected.
w Wait for the channel to become clear.
• The channel is busy when the LED indicator lights green.
e While holding down [PTT], speak into the microphone at
your normal voice level.
r Release [PTT] to return to receive.
IMPORTANT: To maximize the readability of your signal;
1. Pause briefly after pushing [PTT].
2. Hold the microphone 5 to 10 cm from your mouth, then
speak into the microphone at a normal voice level.
2
BASIC OPERATION
is required.
