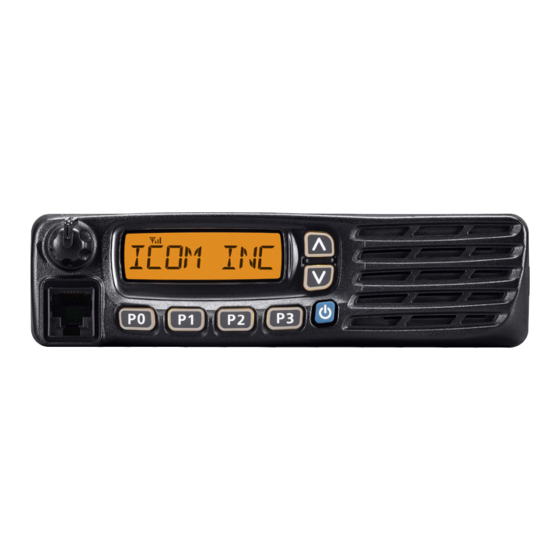

- Page 1 INSTRUCTION MANUAL VHF MOBILE TRANSCEIVERS iF5120D Series UHF MOBILE TRANSCEIVERS iF6120D Series...
- Page 2 If disregarded, inconvenience only. No risk NOTE of personal injury, fire or electric shock. Icom is not responsible for the destruction or damage to the Icom transceiver, if the malfunction is because of: • Force majeure, including, but not limited to,...
- Page 3 CAUTION: NEVER expose the transceiver to rain, Icom, Icom Inc. and the Icom logo are registered trademarks of Icom snow or any liquids. Incorporated (Japan) in Japan, the United States, the United King- dom, Germany, France, Spain, Russia, Australia, New Zealand, and/ or other countries.
- Page 4 TABLE OF CONTENTS IMPORTANT ................i 3 CONNECTION AND MAINTENANCE ....15–17 EXPLICIT DEFINITIONS ............i ■ Rear panel connection ..........15 FCC INFORMATION ............. i ■ Supplied Accessories ..........16 PRECAUTIONS ..............ii ■ Mounting the transceiver ..........16 ■ Antenna ..............17 ■ Fuse replacement ............17 1 PANEL DESCRIPTION ..........1–7 ■...
- Page 5 PANEL DESCRIPTION ■ Front panel Function display (p. 2) Speaker q AF VOLUME CONTROL KNOB [VOL] t MICROPHONE CONNECTOR Rotate the knob to adjust the audio output level. Connect the supplied or optional microphone. • Minimum audio level is pre-programmed. (p. 12) NEVER connect non-specified microphones.
- Page 6 PANEL DESCRIPTION ■ Function display y ENCRYPTION ICON A ppears when the encryption function is activated while operating in the digital mode. u BELL ICON Appears/blinks when a matching 2/5-tone or Digital ID* is received, depending on the preprogramming. i SCAN ICON ➥...
- Page 7 [P0], [P1], [P2] and [P3] programmable function keys. • When a scan is started with the Power ON Scan or Automatic Consult your Icom dealer or system operator for details con- scan function, push this key to cancel it. The cancelled scan cerning your transceivers programming.
- Page 8 A6903H-1EX-4 Printed in Japan © 2010–2018 Icom Inc. 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan Printed on recycled paper with soy ink.
