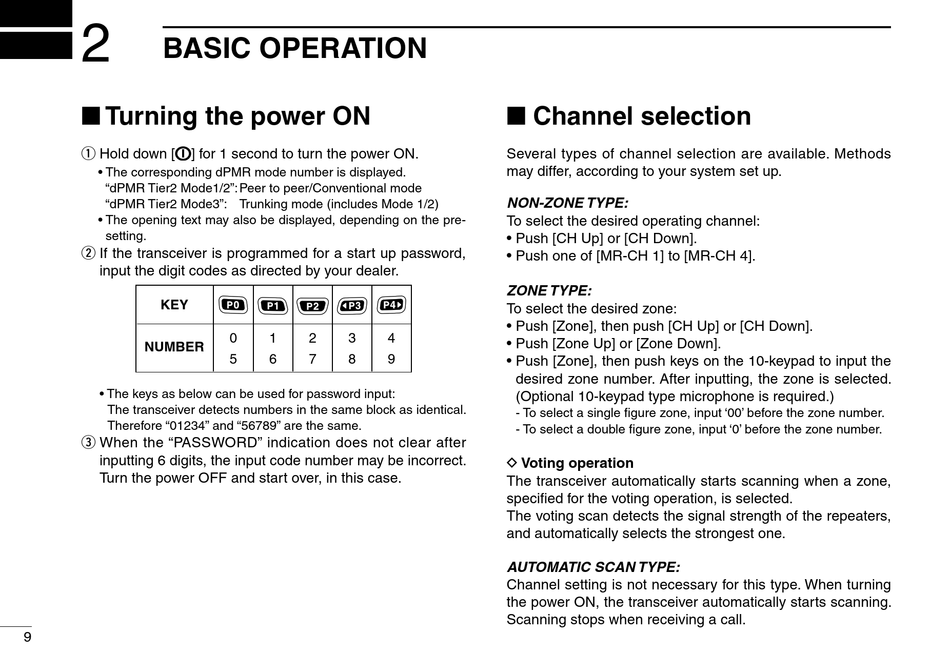

BASIC OPERATION

■ Turning the power ON

q Hold down [ ] for 1 second to turn the power ON.
• The corresponding dPMR mode number is displayed.
"dPMR Tier2 Mode1/2": Peer to peer/Conventional mode
"dPMR Tier2 Mode3": Trunking mode (includes Mode 1/2)
• The opening text may also be displayed, depending on the pre-
setting.
w If the transceiver is programmed for a start up password,
input the digit codes as directed by your dealer.
KEY
NUMBER
• The keys as below can be used for password input:
The transceiver detects numbers in the same block as identical.
Therefore "01234" and "56789" are the same.
e When the "PASSWORD" indication does not clear after
inputting 6 digits, the input code number may be incorrect.
Turn the power OFF and start over, in this case.
9
0 1 2 3 4
5 6 7 8 9

■ Channel selection

Several types of channel selection are available. Methods
may differ, according to your system set up.
NON-ZONE TYPE:
To select the desired operating channel:
• Push [CH Up] or [CH Down].
• Push one of [MR-CH 1] to [MR-CH 4].
ZONE TYPE:
To select the desired zone:
• Push [Zone], then push [CH Up] or [CH Down].
• Push [Zone Up] or [Zone Down].
• Push [Zone], then push keys on the 10-keypad to input the
desired zone number. After inputting, the zone is selected.
(Optional 10-keypad type microphone is required.)
- To select a single figure zone, input '00' before the zone number.
- To select a double figure zone, input '0' before the zone number.
D Voting operation
The transceiver automatically starts scanning when a zone,
specified for the voting operation, is selected.
The voting scan detects the signal strength of the repeaters,
and automatically selects the strongest one.
AUTOMATIC SCAN TYPE:
Channel setting is not necessary for this type. When turning
the power ON, the transceiver automatically starts scanning.
Scanning stops when receiving a call.
