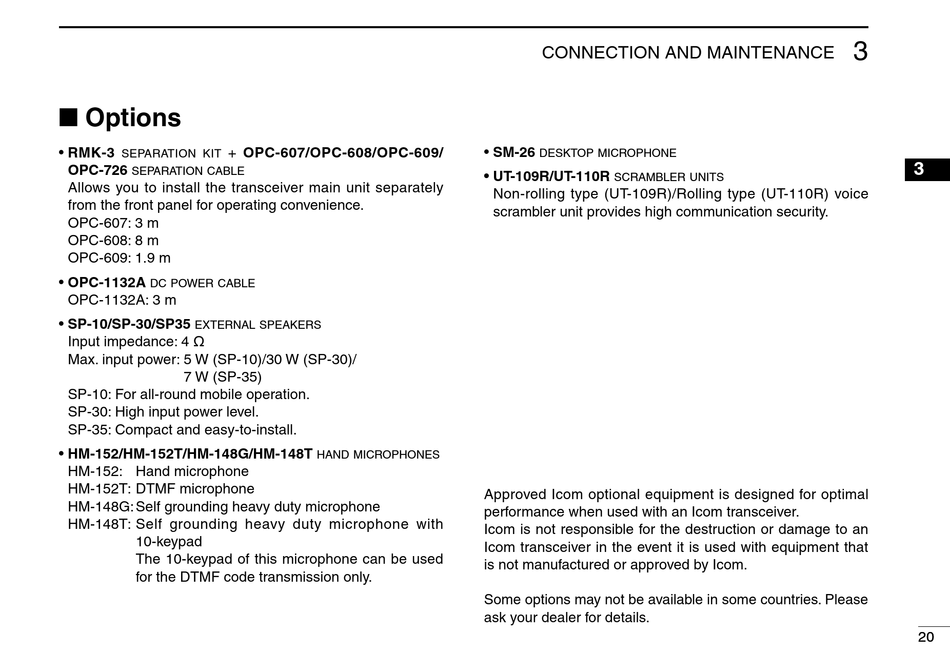

■ Options

• RMK-3 + OPC-607/OPC-608/OPC-609/
separation kit
OPC-726
separation cable
Allows you to install the transceiver main unit separately
from the front panel for operating convenience.
OPC-607: 3 m
OPC-608: 8 m
OPC-609: 1.9 m
• OPC-1132A
dc power cable
OPC-1132A: 3 m
• SP-10/SP-30/SP35
external speakers
Input impedance: 4 ˘
Max. input power: 5 W (SP-10)/30 W (SP-30)/
7 W (SP-35)
SP-10: For all-round mobile operation.
SP-30: High input power level.
SP-35: Compact and easy-to-install.
• HM-152/HM-152T/HM-148G/HM-148T
HM-152: Hand microphone
HM-152T: DTMF microphone
HM-148G: Self grounding heavy duty microphone
HM-148T: Self grounding heavy duty microphone with
10-keypad
The 10-keypad of this microphone can be used
for the DTMF code transmission only.
• SM-26
• UT-109R/UT-110R
Non-rolling type (UT-109R)/Rolling type (UT-110R) voice
scrambler unit provides high communication security.
hand microphones
Approved Icom optional equipment is designed for optimal
performance when used with an Icom transceiver.
Icom is not responsible for the destruction or damage to an
Icom transceiver in the event it is used with equipment that
is not manufactured or approved by Icom.
Some options may not be available in some countries. Please
ask your dealer for details.
CONNECTION AND MAINTENANCE
desktop microphone
scrambler units
