1

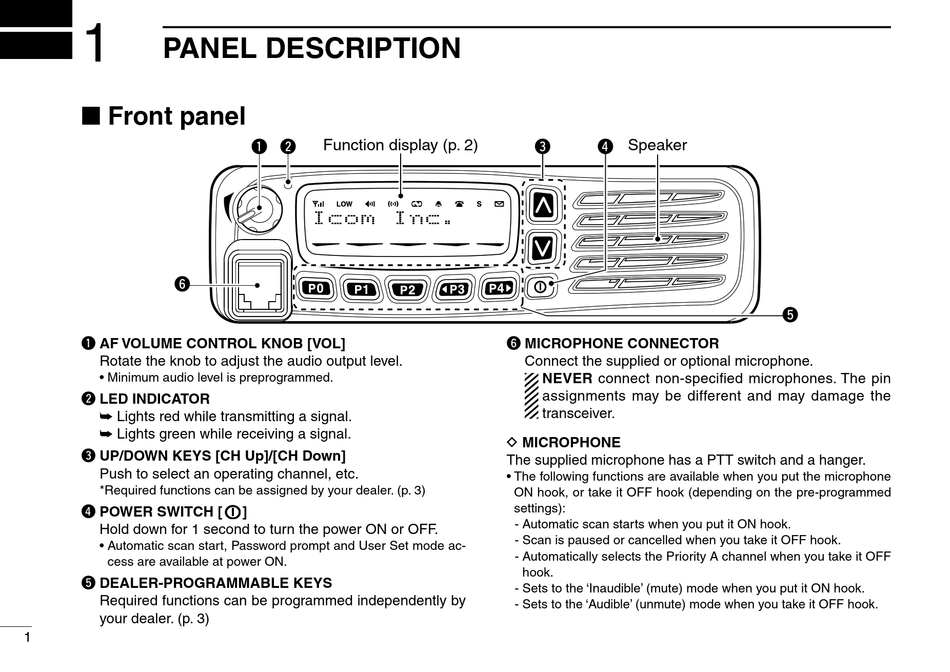

PANEL DESCRIPTION

■ Front panel

y
q AF VOLUME CONTROL KNOB [VOL]
Rotate the knob to adjust the audio output level.
• Minimum audio level is preprogrammed.
w LED INDICATOR
➥ Lights red while transmitting a signal.
➥ Lights green while receiving a signal.
e UP/DOWN KEYS [CH Up]/[CH Down]
Push to select an operating channel, etc.
*Required functions can be assigned by your dealer. (p. 3)
r POWER SWITCH [
Hold down for 1 second to turn the power ON or OFF.
• Automatic scan start, Password prompt and User Set mode ac-
cess are available at power ON.
t DEALER-PROGRAMMABLE KEYS
Required functions can be programmed independently by
your dealer. (p. 3)
1
Function display (p. 2)
q w
I c o m I n c .
]
Speaker
e r
y MICROPHONE CONNECTOR
Connect the supplied or optional microphone.
NEVER connect non-specified microphones. The pin
assignments may be different and may damage the
transceiver.
D MICROPHONE
The supplied microphone has a PTT switch and a hanger.
• The following functions are available when you put the microphone
ON hook, or take it OFF hook (depending on the pre-programmed
settings):
- Automatic scan starts when you put it ON hook.
- Scan is paused or cancelled when you take it OFF hook.
- Automatically selects the Priority A channel when you take it OFF
hook.
- Sets to the 'Inaudible' (mute) mode when you put it ON hook.
- Sets to the 'Audible' (unmute) mode when you take it OFF hook.
t
