Queue Settings Menu

The Queue Settings menu lets you configure QoS behavior as either strict priority or
weighted priority.
Strict priority – allows delay-sensitive data such as voice to be sent before packets in
other queues.
Weighted priority – lets you assign each queue with a certain weight indicating the
amount of guaranteed capacity, with high priority packets served before any low priority
packets.
To access the Queue Settings menu, click QOS in the menu bar and then click the Queue
submenu in the menu bar. Figure 27 shows an example of the menu.
Note: The Queue submenu is not available in the menu bar if Enable QOS Module is not
checked in the QoS Settings menu (see page 39).
Configuring Your Gateway

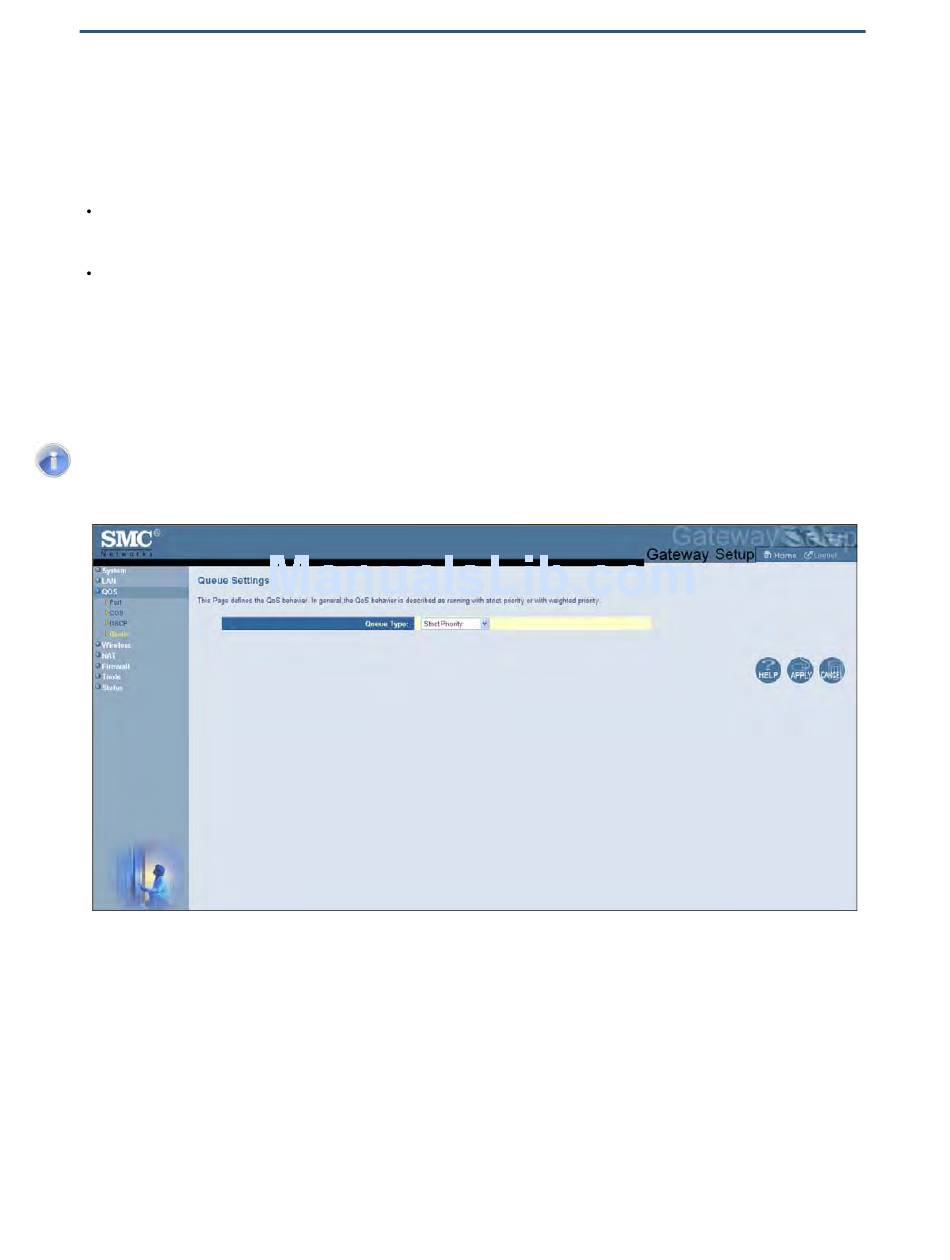

Figure 27. Queue Settings Menu
