Getting to Know Your Gateway

Front Panel

The front panel of your SMCD3GN2 Wireless Cable Modem Gateway contains a set of light-
emitting diode (LED) indicators. These LEDs show the status of the Gateway and simplify
troubleshooting. The front panel also contains a WPS button for configuring wireless security
automatically.
Figure 1 shows the front panel of your SMCD3GN2 Wireless Cable Modem Gateway. Table
1 describes the front panel LEDs.

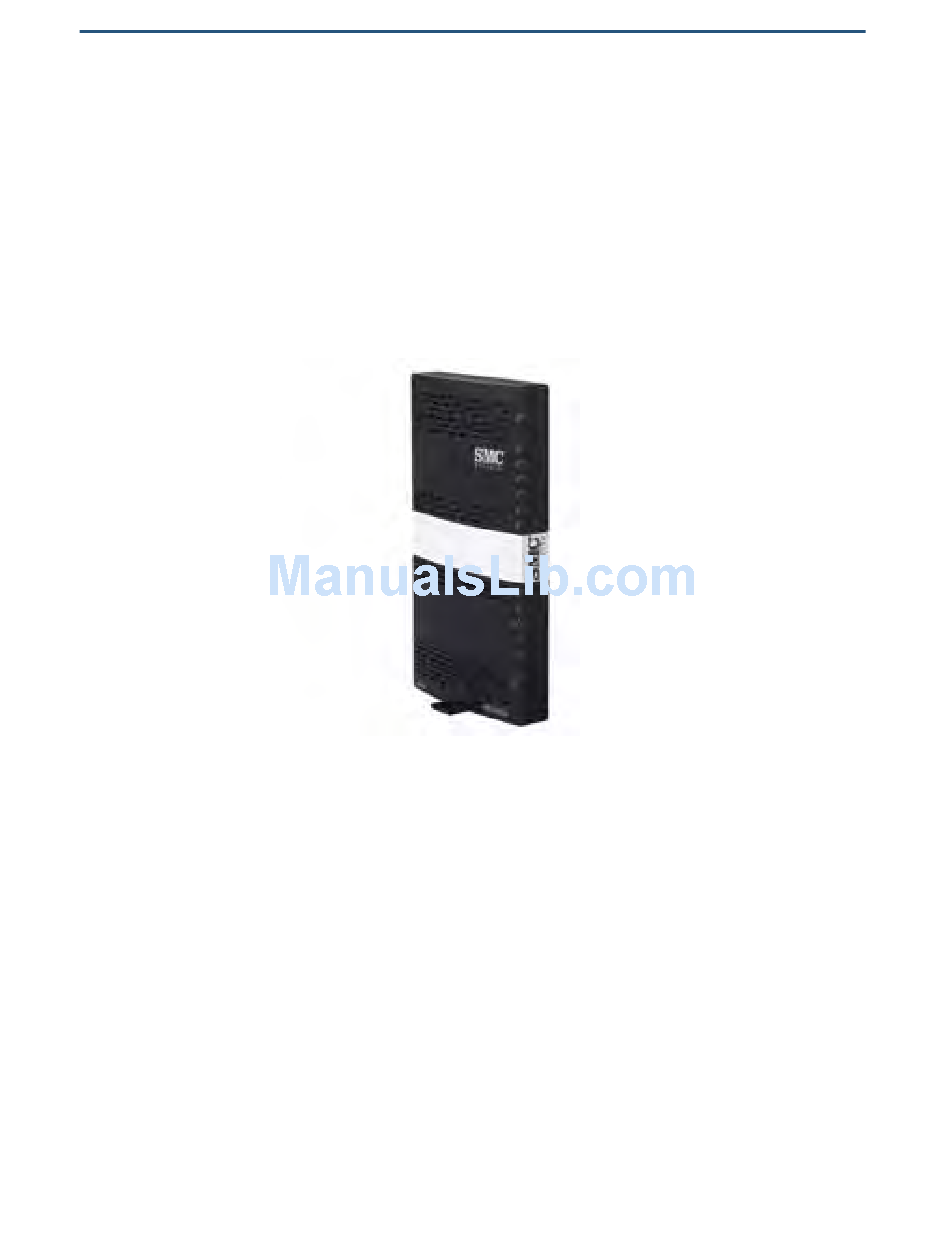

Figure 1. Front Panel of SMCD3GN2 Wireless Cable Modem Gateway
11
