SMC Networks SMCD3GN2 User Manual page 22

Configuring Your Computer for TCP/IP

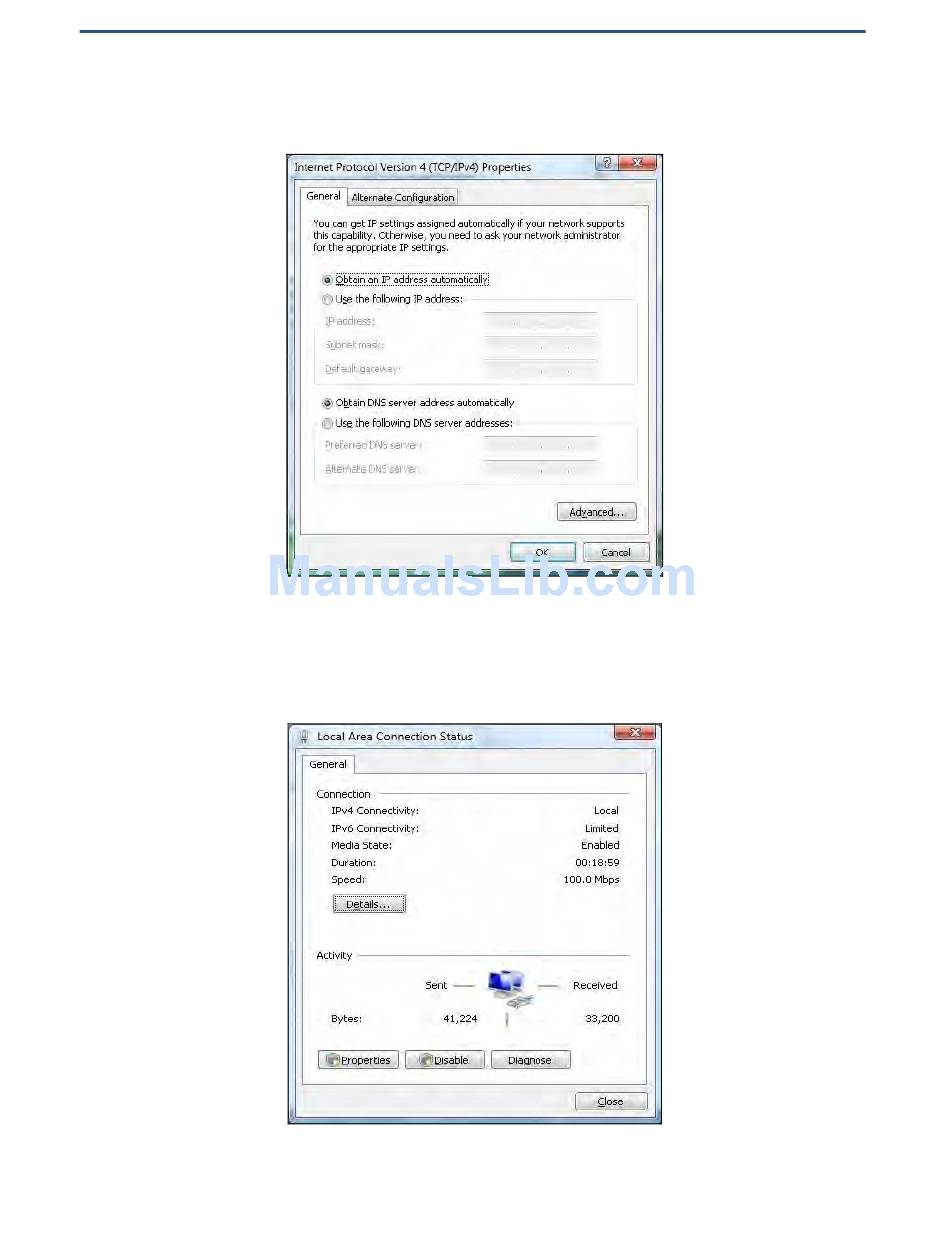

6. In the Internet Protocol Version 4 Properties dialog box, click Obtain an IP address
automatically to configure your computer for DHCP (see Figure 8).
Figure 8. Internet Protocol Properties Window
7. Click the OK button to save your changes and close the dialog box.
8. Click the OK button again to save your changes.
Figure 9. Local Area Connection Status Window
22
SMCD3GN2 Wireless Cable Modem User Manual
