DSCP Remarking Menu

The DSCP Remarking menu lets you configure the Gateway's DSCP remarking mode and
actions.
To access the Queue Settings menu, click QOS in the menu bar and then click the DSCP
Remarking submenu in the menu bar. Figure 29 shows an example of the menu.
Note: The DSCP Remarking submenu is not available in the menu bar if Enable QOS
Module is not checked in the QoS Settings menu (see page 39).
To configure DSCP remarking settings:
1. Check Enable DSCP Remarking.
2. Complete the options in the menu and refer to Table 8.
3. When you finish, click Apply.
Configuring Your Gateway

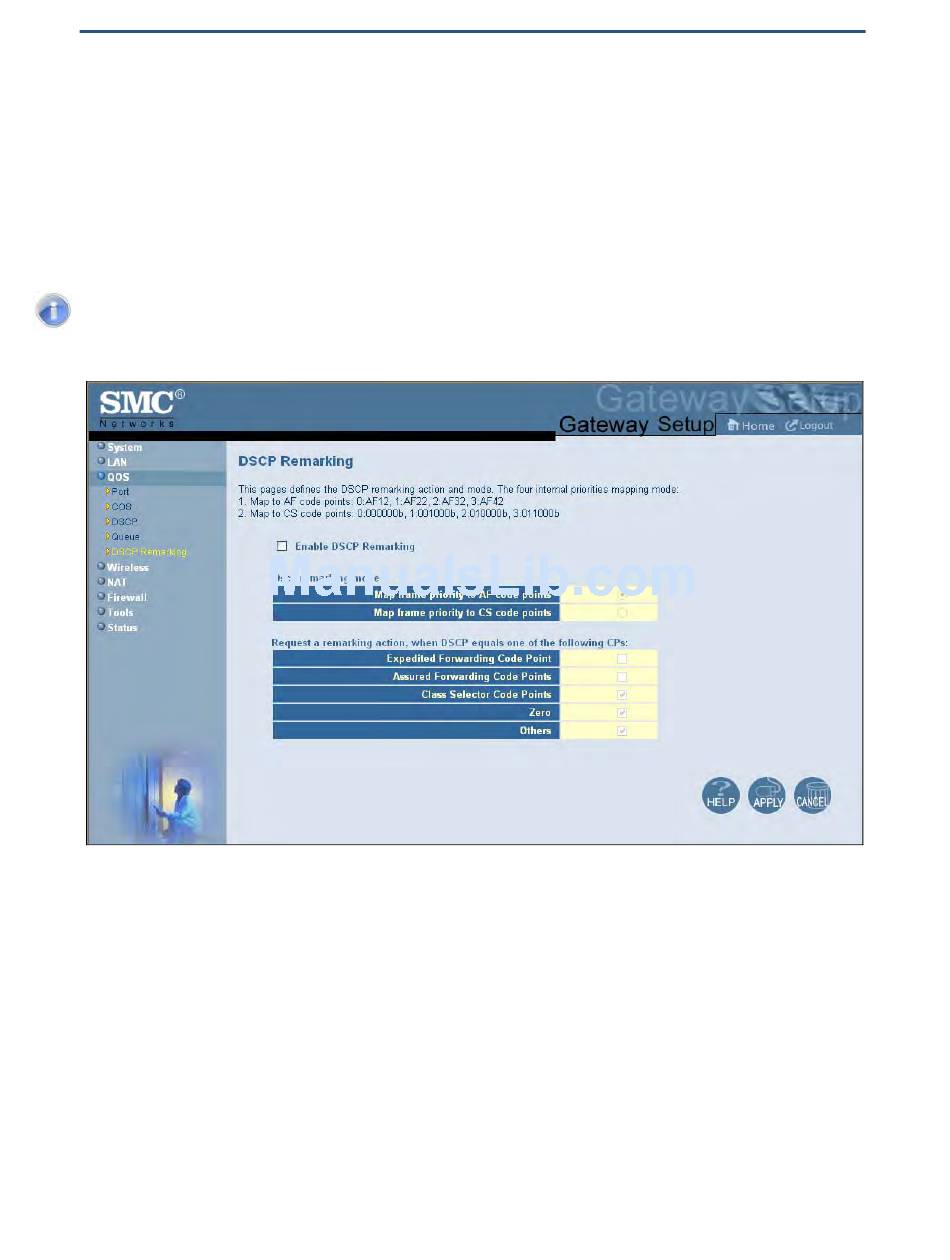

Figure 29. DSCP Remarking Menu
52
SMCD3GN2 Wireless Cable Modem User Manual
