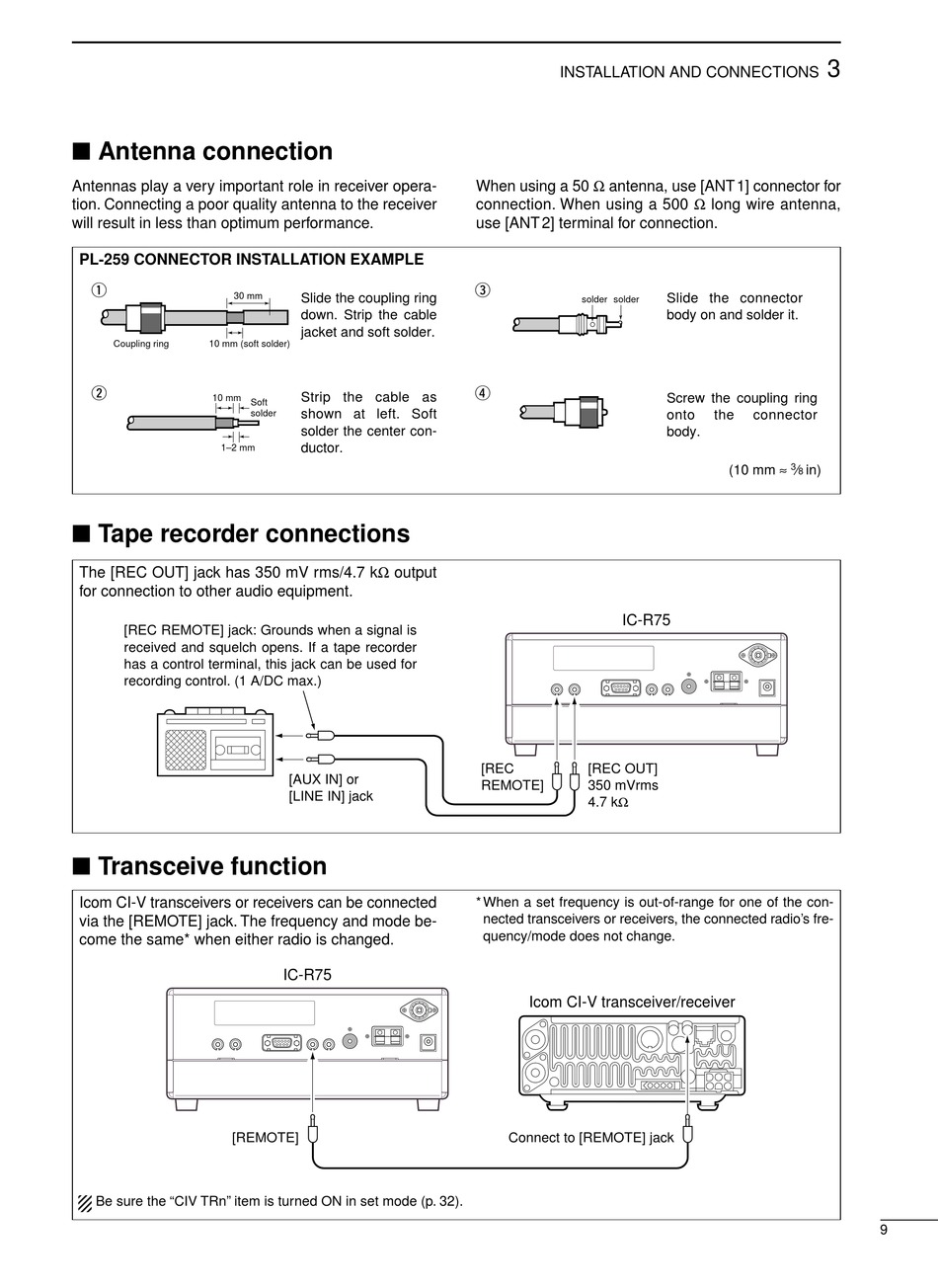

Antenna connection

Antennas play a very important role in receiver opera-
tion. Connecting a poor quality antenna to the receiver
will result in less than optimum performance.
PL-259 CONNECTOR INSTALLATION EXAMPLE
q
30 mm
Coupling ring 10 mm (soft solder)
w
10 mm
1–2 mm

Tape recorder connections

The [REC OUT] jack has 350 mV rms/4.7 k
for connection to other audio equipment.
[REC REMOTE] jack: Grounds when a signal is
received and squelch opens. If a tape recorder
has a control terminal, this jack can be used for
recording control. (1 A/DC max.)

Transceive function

Icom CI-V transceivers or receivers can be connected
via the [REMOTE] jack. The frequency and mode be-
come the same* when either radio is changed.
[REMOTE]
Be sure the "CIV TRn" item is turned ON in set mode (p. 32).
Slide the coupling ring
down. Strip the cable
jacket and soft solder.
Strip the cable as
Soft
solder shown at left. Soft
solder the center con-
ductor.
output
[AUX IN] or
[LINE IN] jack
IC-R75
INSTALLATION AND CONNECTIONS
When using a 50 antenna, use [ANT 1] connector for
connection. When using a 500
use [ANT 2] terminal for connection.
e
solder solder
r
IC-R75
[REC [REC OUT]
REMOTE] 350 mVrms
4.7 k
* When a set frequency is out-of-range for one of the con-
nected transceivers or receivers, the connected radio's fre-
quency/mode does not change.
Icom CI-V transceiver/receiver
Connect to [REMOTE] jack
3
long wire antenna,
Slide the connector
body on and solder it.
Screw the coupling ring
onto the connector
body.
3
(10 mm ⁄ in)
8
9
