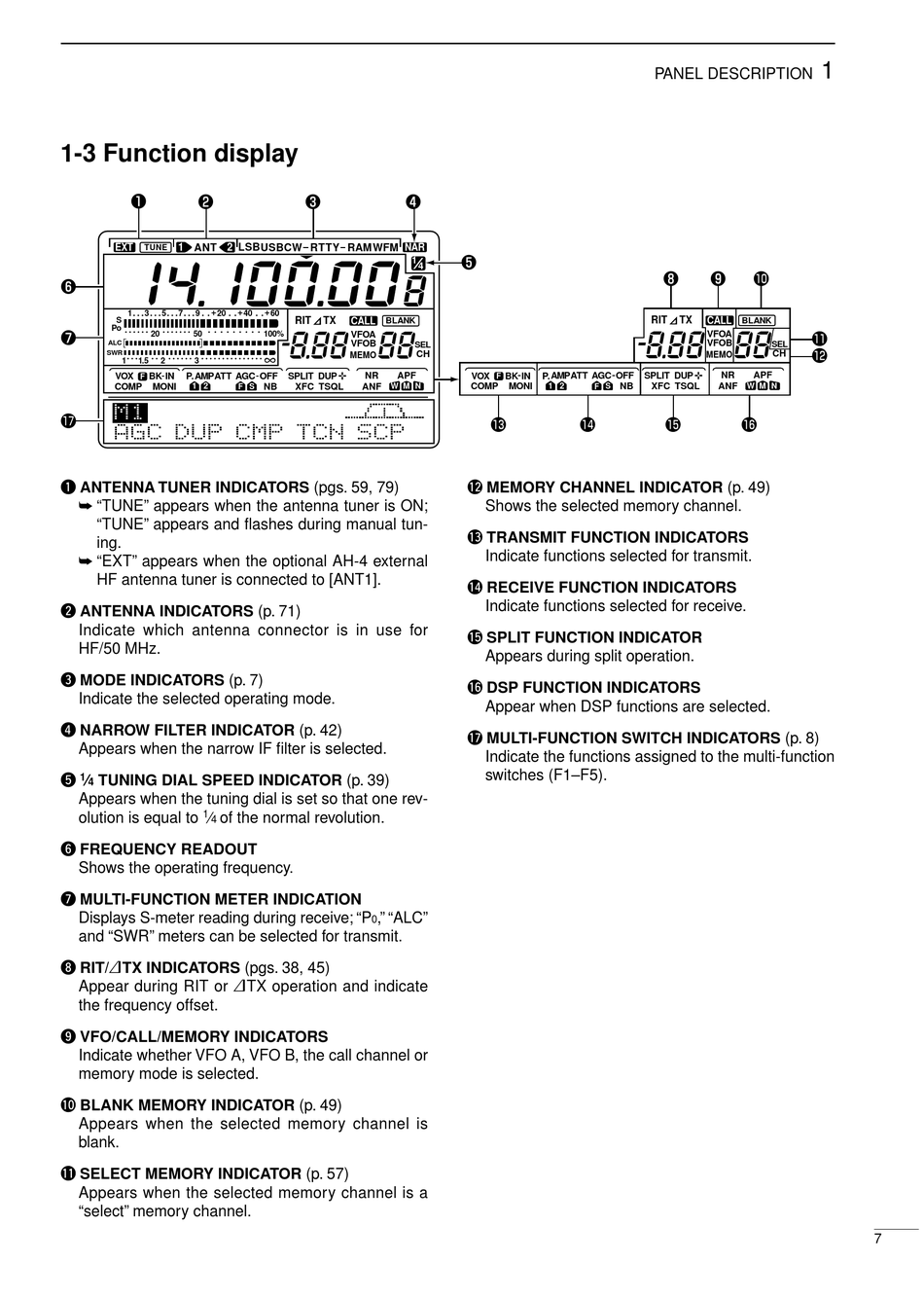

1-3 Function display

1 2
1 2
EXT TUNE ANT
6
1 3 5 7 9 20
S
Po
7
20 50
ALC
SWR
1 1.5 2 3
VOX BK IN P. AMP ATT
F
COMP MONI 1 2
!7
q ANTENNA TUNER INDICATORS (pgs. 59, 79)
"TUNE" appears when the antenna tuner is ON;
"TUNE" appears and flashes during manual tun-
ing.
"EXT" appears when the optional AH-4 external
HF antenna tuner is connected to [ANT1].
w ANTENNA INDICATORS (p. 71)
Indicate which antenna connector is in use for
HF/50 MHz.
e MODE INDICATORS (p. 7)
Indicate the selected operating mode.
r NARROW FILTER INDICATOR (p. 42)
Appears when the narrow IF filter is selected.
t
1
⁄ TUNING DIAL SPEED INDICATOR (p. 39)
4
Appears when the tuning dial is set so that one rev-
1
olution is equal to ⁄ of the normal revolution.
4
y FREQUENCY READOUT
Shows the operating frequency.
u MULTI-FUNCTION METER INDICATION
Displays S-meter reading during receive; "P
and "SWR" meters can be selected for transmit.
i RIT/
TX INDICATORS (pgs. 38, 45)
:
Appear during RIT or
:
the frequency offset.
o VFO/CALL/MEMORY INDICATORS
Indicate whether VFO A, VFO B, the call channel or
memory mode is selected.
!0 BLANK MEMORY INDICATOR (p. 49)
Appears when the selected memory channel is
blank.
!1 SELECT MEMORY INDICATOR (p. 57)
Appears when the selected memory channel is a
"select" memory channel.
3 4
LSBUSBCW
RTTY RAM WFM NAR
40 60
RIT TX CALL BLANK
100% VFOA
VFOB
MEMO
NR APF
AGC OFF SPLIT DUP
F S NB XFC TSQL ANF W M
," "ALC"
0
TX operation and indicate
5
1
4
SEL
CH
VOX BK IN P. AMP ATT
F
1 2
N COMP MONI
!3 !4
!2 MEMORY CHANNEL INDICATOR (p. 49)
Shows the selected memory channel.
!3 TRANSMIT FUNCTION INDICATORS
Indicate functions selected for transmit.
!4 RECEIVE FUNCTION INDICATORS
Indicate functions selected for receive.
!5 SPLIT FUNCTION INDICATOR
Appears during split operation.
!6 DSP FUNCTION INDICATORS
Appear when DSP functions are selected.
!7 MULTI-FUNCTION SWITCH INDICATORS (p. 8)
Indicate the functions assigned to the multi-function
switches (F1–F5).

PANEL DESCRIPTION

8 9 !0
RIT TX CALL
BLANK
VFOA
VFOB
MEMO
NR APF
AGC OFF SPLIT DUP
F S NB XFC TSQL ANF W M
!5 !6
1
!1
SEL
!2
CH
N
