12
SETUP AND CONNECTIONS

12-9 Remote jack

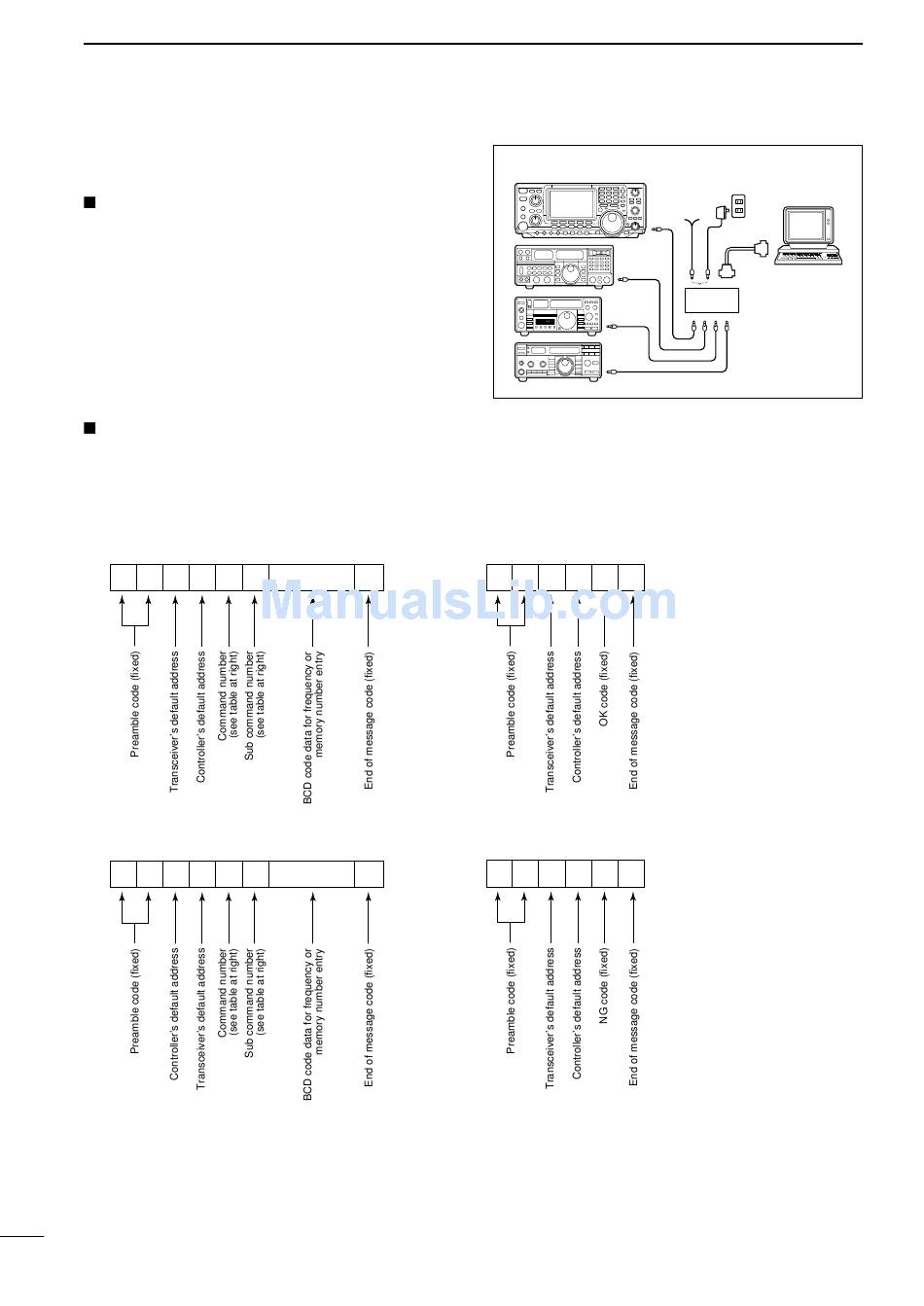

CI-V CONNECTION EXAMPLE
The transceiver can be connected through an optional
CT-17 -
CI V LEVEL CONVERTER
equipped with an RS-232C port. The Icom Communi-
cations Interface-V (CI-V) controls the following func-
tions of the transceiver.
Up to 4 Icom CI-V transceivers or receivers can be
connected to a personal computer equipped with an
RS-232C port. See p. 64 for setting the CI-V condition
using set mode.
DATA FORMAT
The CI-V system can be operated using the following
data formats. Data formats differ according to com-
mand numbers. A data area or sub command is added
for some commands.
CONTROLLER TO IC-746
FE FE 56 E0 Cn Sc
IC-746 TO CONTROLLER
FE FE E0 56 Cn Sc
74
to a personal computer
Data area FD
Data area FD
IC-746
mini-plug cable
OK MESSAGE TO CONTROLLER
FE FE 56 E0 FB FD
NG MESSAGE TO CONTROLLER
FE FE 56 E0 FA FD
BC-25
(optional)
9–15
V DC
personal
computer
ct- 17
