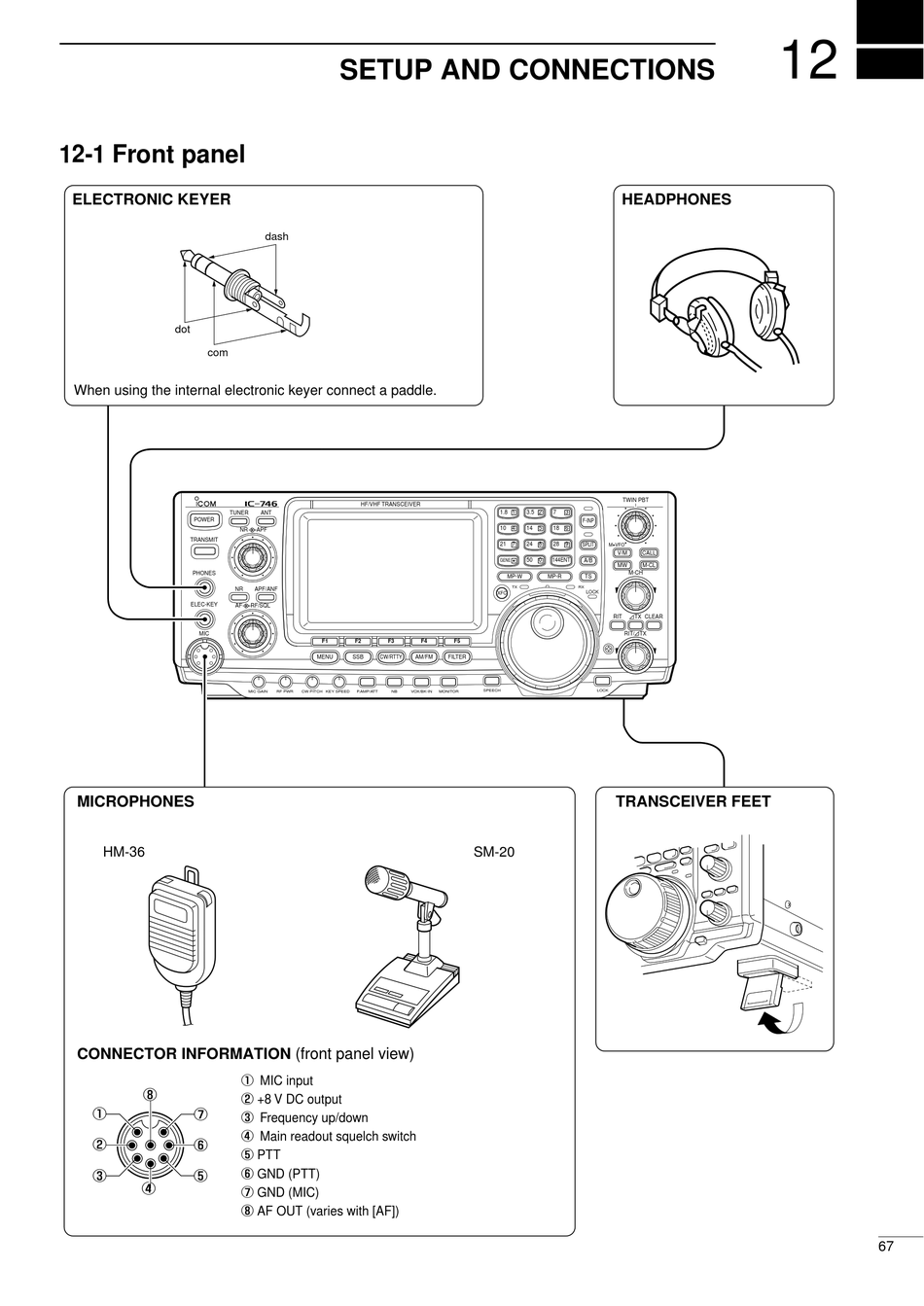

12-1 Front panel

ELECTRONIC KEYER
dot
com
When using the internal electronic keyer connect a paddle.
TUNER
POWER
TRANSMIT
PHONES
ELEC-KEY
MIC
MICROPHONES
HM-36
CONNECTOR INFORMATION (front panel view)
8
1 7
2
6
3 5
4

SETUP AND CONNECTIONS

dash
HF/VHF TRANSCEIVER
ANT
NR APF
NR APF/ANF
AF RF/SQL
F1 F2 F3
MENU SSB CW/RTTY
MIC GAIN RF PWR CW PITCH KEY SPEED P.AMP/ATT NB
1 MIC input
2 +8 V DC output
3 Frequency up/down
4 Main readout squelch switch
5 PTT
6 GND (PTT)
7 GND (MIC)
8 AF OUT (varies with [AF])
1.8 1 3.5 2 7 3
F-INP
10 4 14 5 18 6
21 7 24 8 28 9
SPLIT
GENE 50 0 144ENT A/B
MP-W MP-R TS
TX RX
XFC
F4 F5
AM/FM FILTER
SPEECH
VOX/BK-IN MONITOR
SM-20
HEADPHONES
TWIN PBT
M VFO
V/M CALL
MW M-CL
M-CH
LOCK
RIT TX CLEAR
RIT/ TX
LOCK
TRANSCEIVER FEET
12
67
