6
FUNCTIONS FOR TRANSMIT

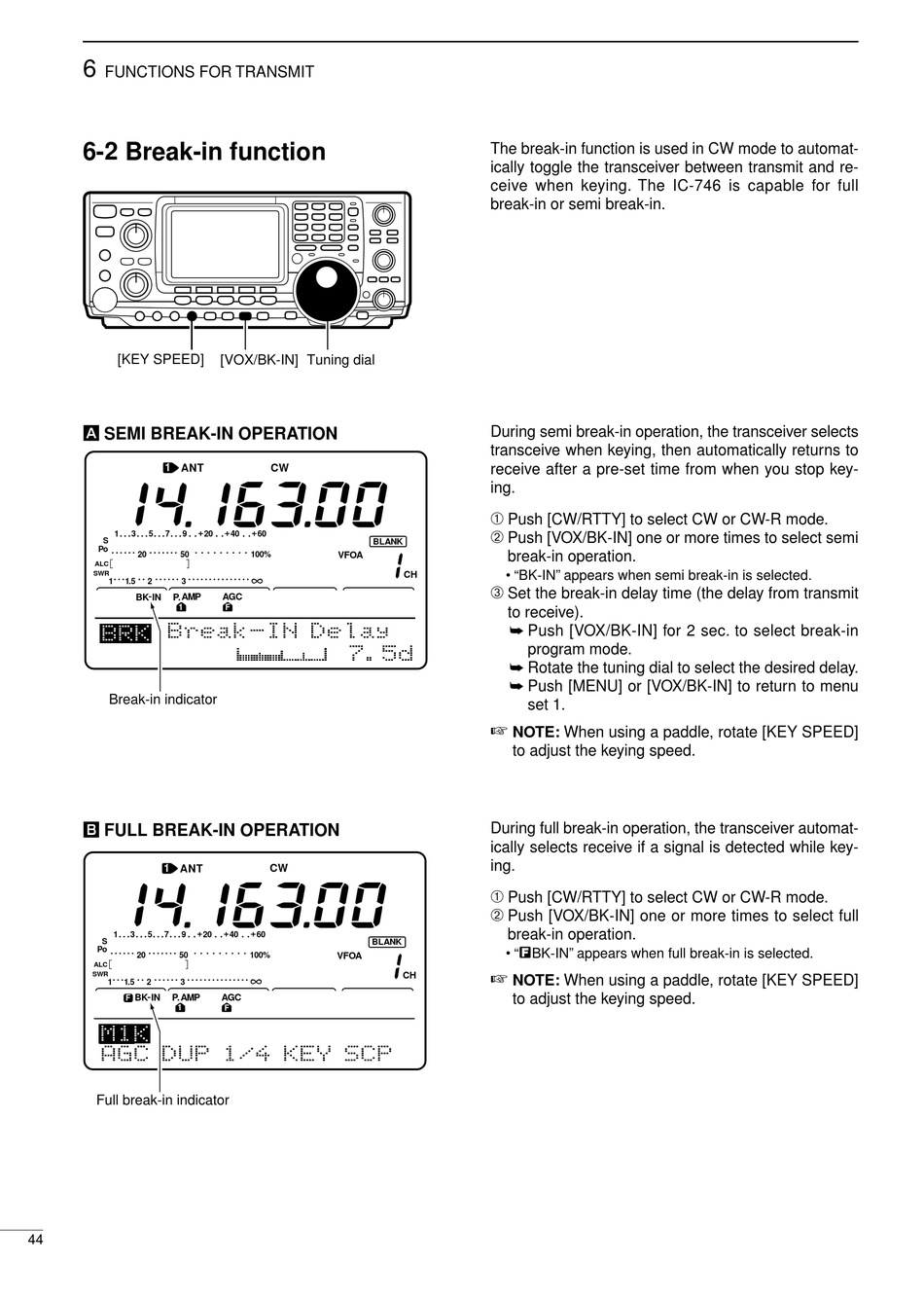

6-2 Break-in function

[KEY SPEED]
Å SEMI BREAK-IN OPERATION
1
ANT
1 3 5 7 9
S
Po
20 50
ALC
SWR
1 1.5 2 3
BK IN P. AMP
1
Break-in indicator
ı FULL BREAK-IN OPERATION
1 ANT
1 3 5 7 9
S
Po
20 50
ALC
SWR
1 1.5 2 3
BK IN P. AMP
F
1
Full break-in indicator
44
[VOX/BK-IN] Tuning dial
CW
20 40 60
BLANK
100% VFOA
AGC
S
F
CW
20 40 60
BLANK
100%
VFOA
AGC
F S
The break-in function is used in CW mode to automat-
ically toggle the transceiver between transmit and re-
ceive when keying. The IC-746 is capable for full
break-in or semi break-in.
During semi break-in operation, the transceiver selects
transceive when keying, then automatically returns to
receive after a pre-set time from when you stop key-
ing.
Push [CW/RTTY] to select CW or CW-R mode.
Push [VOX/BK-IN] one or more times to select semi
break-in operation.
• "BK-IN" appears when semi break-in is selected.
CH
Set the break-in delay time (the delay from transmit
to receive).
Push [VOX/BK-IN] for 2 sec. to select break-in
program mode.
Rotate the tuning dial to select the desired delay.
Push [MENU] or [VOX/BK-IN] to return to menu
set 1.
NOTE: When using a paddle, rotate [KEY SPEED]
to adjust the keying speed.
During full break-in operation, the transceiver automat-
ically selects receive if a signal is detected while key-
ing.
Push [CW/RTTY] to select CW or CW-R mode.
Push [VOX/BK-IN] one or more times to select full
break-in operation.
• "OBK-IN" appears when full break-in is selected.
CH
NOTE: When using a paddle, rotate [KEY SPEED]
to adjust the keying speed.
