Icom IC-746 Instruction Manual page 27

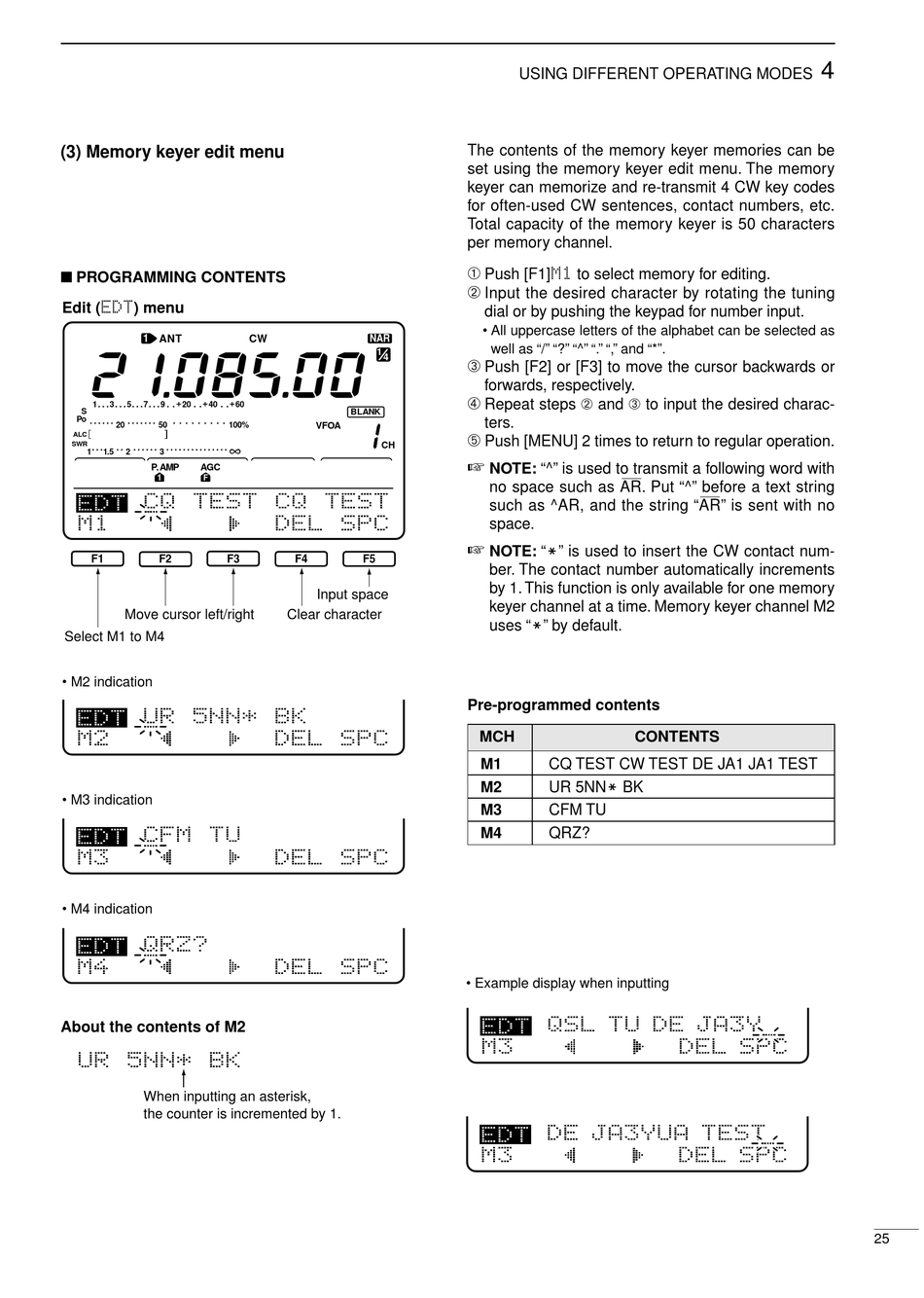

(3) Memory keyer edit menu
PROGRAMMING CONTENTS
Edit (EDT) menu
1 ANT
1 3 5 7 9 20 40
S
Po
20 50 100%
ALC
SWR
1 1.5 2 3
AMP AGC
P.
1
F
CQ TEST CQ TEST
EDT
M1
F1 F2 F3
Move cursor left/right
Select M1 to M4
• M2 indication
UR 5NN* BK
EDT
M2
• M3 indication
CFM TU
EDT
M3
• M4 indication
QRZ?
EDT
M4
About the contents of M2
UR 5NN* BK
When inputting an asterisk,
the counter is incremented by 1.
CW NAR
1
4
60
BLANK
VFOA
CH
DEL SPC
F4 F5
Input space
Clear character
DEL SPC
DEL SPC
DEL SPC
USING DIFFERENT OPERATING MODES
The contents of the memory keyer memories can be
set using the memory keyer edit menu. The memory
keyer can memorize and re-transmit 4 CW key codes
for often-used CW sentences, contact numbers, etc.
Total capacity of the memory keyer is 50 characters
per memory channel.
Push [F1]M1 to select memory for editing.
Input the desired character by rotating the tuning
dial or by pushing the keypad for number input.
• All uppercase letters of the alphabet can be selected as
well as "/" "?" "^" "." "," and "*".
Push [F2] or [F3] to move the cursor backwards or
forwards, respectively.
Repeat steps and
ters.
Push [MENU] 2 times to return to regular operation.
NOTE: "^" is used to transmit a following word with
no space such as AR. Put "^" before a text string
such as ^AR, and the string "AR" is sent with no
space.
NOTE: "M" is used to insert the CW contact num-
ber. The contact number automatically increments
by 1. This function is only available for one memory
keyer channel at a time. Memory keyer channel M2
uses "M" by default.
Pre-programmed contents
MCH CONTENTS
M1 CQ TEST CW TEST DE JA1 JA1 TEST
M2 UR 5NNM BK
M3 CFM TU
M4 QRZ?
• Example display when inputting
QSL TU DE JA3Y
EDT
M3
DE JA3YUA TEST
EDT
M3
to input the desired charac-
DEL SPC
DEL SPC
4
25
