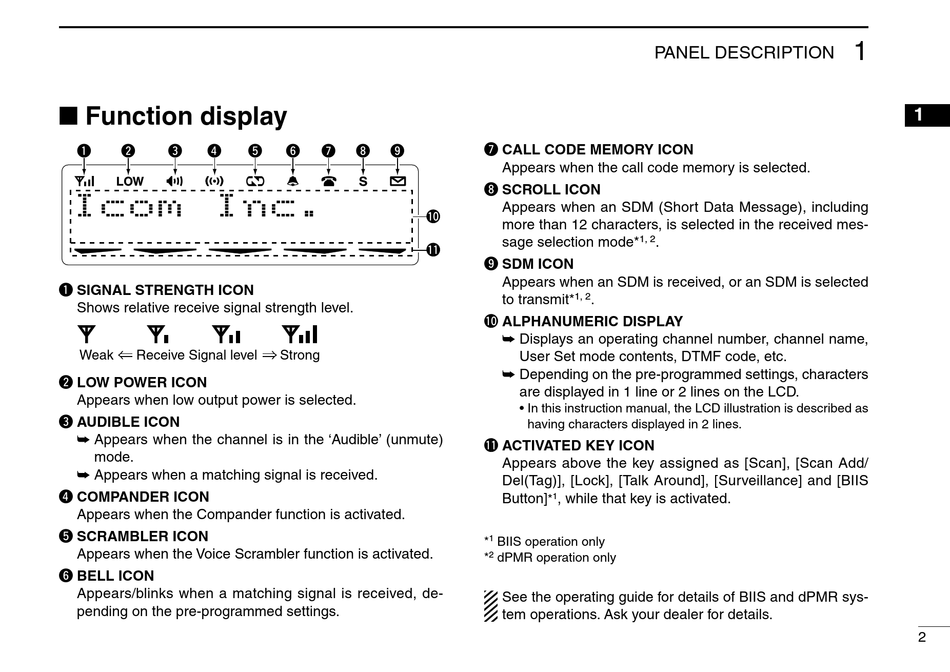

Function Display - Icom IC-F5062D Instruction Manual

■ Function display

q w e r
I c o m I n c .
q SIGNAL STRENGTH ICON
Shows relatve receve sgnal strength level.
Weak Receive Signal level
w LOW POWER ICON
Appears when low output power s selected.
e AUDIBLE ICON
➥ Appears when the channel s n the 'Audble' (unmute)
mode.
➥ Appears when a matchng sgnal s receved.
r COMPANDER ICON
Appears when the Compander functon s actvated.
t SCRAMBLER ICON
Appears when the Voce Scrambler functon s actvated.
y BELL ICON
Appears/blnks when a matchng sgnal s receved, de-
pendng on the pre-programmed settngs.
t y u i o
!0
!1
Strong
PANEL DESCRIPTION
u CALL CODE MEMORY ICON
Appears when the call code memory s selected.
i SCROLL ICON
Appears when an SDM (Short Data Message), ncludng
more than 12 characters, s selected n the receved mes-
sage selecton mode* 1, 2 .
o SDM ICON
Appears when an SDM s receved, or an SDM s selected
to transmt* 1, 2
.
!0 ALPHANUMERIC DISPLAY
➥ Dsplays an operatng channel number, channel name,
User Set mode contents, DTMF code, etc.
➥ Dependng on the pre-programmed settngs, characters
are dsplayed n 1 lne or 2 lnes on the LCD.
• In ths nstructon manual, the LCD llustraton s descrbed as
havng characters dsplayed n 2 lnes.
!1 ACTIVATED KEY ICON
Appears above the key assgned as [Scan], [Scan Add/
Del(Tag)], [Lock], [Talk Around], [Survellance] and [BIIS
Button] , whle that key s actvated.
* 1
1
* BIIS operaton only
* 2 dPMR operaton only
See the operatng gude for detals of BIIS and dPMR sys-
tem operatons. Ask your dealer for detals.
