CONNECTION AND MAINTENANCE
■ Rear panel connecton (Contnued)

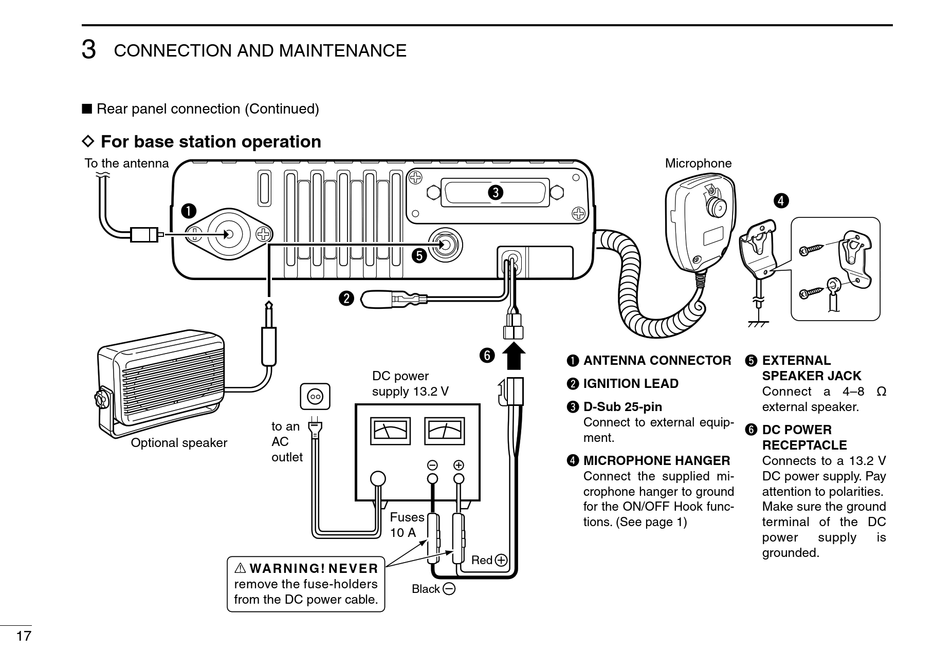

D For base station operation
To the antenna
q
Optional speaker
17
t
w
DC power
supply 13.2 V
to an
AC
outlet
Fuses
10 A
R WA R N I N G ! N E V E R
remove the fuse-holders
Black
from the DC power cable.
e
y
ANTENNA CONNECTOR
q
IGNITION LEAD
w
D-Sub 25-pin
e
Connect to external equip-
ment.
MICROPHONE HANGER
r
Connect the supplied mi-
crophone hanger to ground
for the ON/OFF Hook func-
tions. (See page 1)
Red
Microphone
r
EXTERNAL
t
SPEAKER JACK
Connect a 4–8 ø
external speaker.
DC POWER
y
RECEPTACLE
Connects to a 13.2 V
DC power supply. Pay
attention to polarities.
Make sure the ground
terminal of the DC
power supply
grounded.
is
