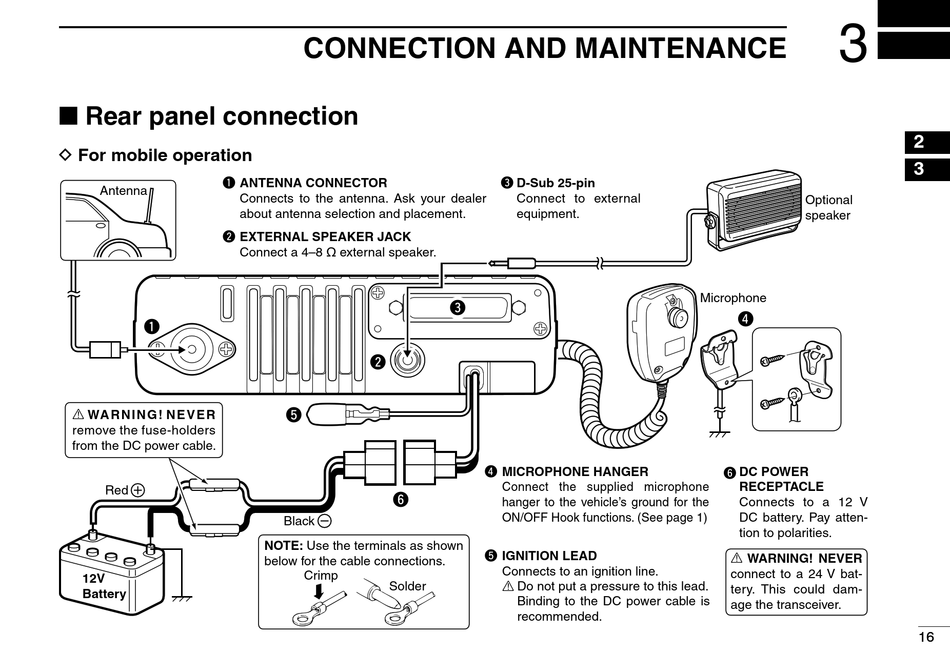

■ Rear panel connection

D For mobile operation
q
Antenna
w
q
R WA R N I N G ! N E V E R
remove the fuse-holders
from the DC power cable.
Red
12V
Battery

CONNECTION AND MAINTENANCE

ANTENNA CONNECTOR
Connects to the antenna. Ask your dealer
about antenna selection and placement.
EXTERNAL SPEAKER JACK
Connect a 4–8 ø external speaker.
w
t
y
Black
NOTE: Use the terminals as shown
below for the cable connections.
Crimp
Solder
D-Sub 25-pin
e
Connect to external
equipment.
e
MICROPHONE HANGER
r
Connect the supplied microphone
hanger to the vehicle's ground for the
ON/OFF Hook functions. (See page 1)
IGNITION LEAD
t
Connects to an ignition line.
R Do not put a pressure to this lead.
Binding to the DC power cable is
recommended.
3
Optional
speaker
Microphone
r
DC POWER
y
RECEPTACLE
Connects to a 12 V
DC battery. Pay atten-
tion to polarities.
R WARNING! NEVER
connect to a 24 V bat-
tery. This could dam-
age the transceiver.
