Product Description
Library Features

SCSI Ports

SCSI ports allow connection of the library to a host using SCSI cables. Each
SCSI port has its own bus.
The SCSI interface mode switches specify term power and termination
settings.
Single-ended/differential mode for the library bus (bus 0) is set from the
control panel (see "Setting the Robotics Controller Bus Type on page 4-13 for
details). All drive buses are differential.

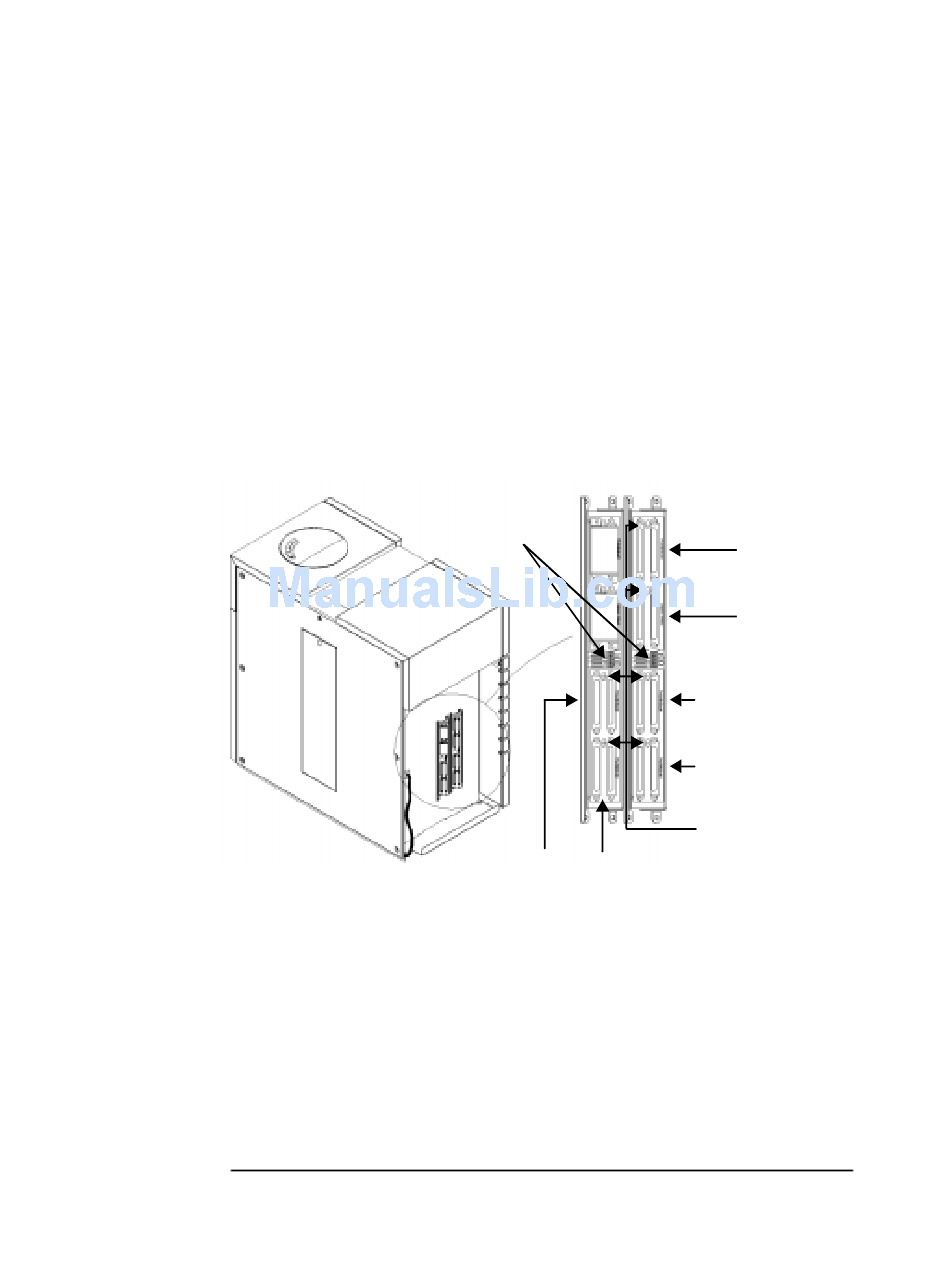

Figure 1-4 SCSI Ports
1-8
SCSI Interface
mode
switches
Drive 3 bus Drive 4 bus
Bus 3 Bus 4
(four-drive (four-drive
library only) library only)
All drive buses are differential
Differential
Library bus
Bus 0
Single ended
Drive 1 bus
Bus 1
Drive 2 bus
Bus 2
SCSI bus status
indicator LEDs
