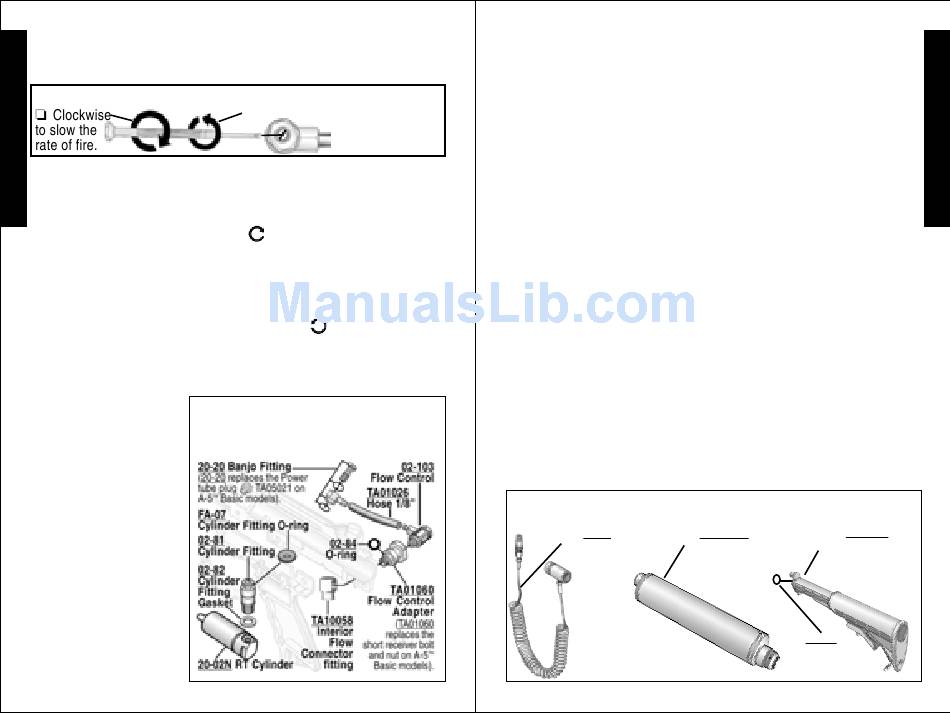

Tippmann A-5 MARKER LINE Owner's Manual page 9

Tuning The Response
❏ Eye protection designed for paintball use must be worn by the user and
E
any person within range.
N
With a screwdriver, turn the Flow Control Adjustor to the desired speed.
G
L
I
S
Tuning - Troubleshooting A:
TM
If tuning the Response trigger, above, produces little or no response
H
in the rate of fire, reset the Flow Control as follows:
1) With marker properly unloaded (see page 18), begin adjusting rate
of fire by turning flow control clockwise
or damage will occur. In a safe direction fire 2 to 4 shots. Trigger
should become very hard to pull or even unable to be pulled. If this
occurs, the response trigger system is functioning properly. Go to step
2). If it does not occur, go to Troubleshooting B.
2) Now while firing in a safe direction with marker still unloaded, slowly
turn the flow control adjustor counterclockwise
fire is achieved.
Tuning - Troubleshooting B:
If the trigger remains easy to pull after adjusting the flow control, there
may be a leak in the system.
Double check installation
making sure all fittings are
tight and o-rings are
properly seated. If you
need to disassemble to
check that all fittings are
tight and o-rings are
properly seated, follow the
Marker / Receiver
Disassembly instructions
beginning on page 21.
Do NOT disassemble the
marker while it is pressurized
with air.
If a problem still exists,
call the Tippmann
Service Department at
1-800-533-4831.
TM Trigger Rate of Fire
❏ Counterclockwise to increase
rate of fire to the
desired speed.
completely. Do not over tighten
until desired rate of
A-5 TM RESPONSE TM
Model Specific Parts:
Not Shown on
A-5 TM Basic Parts List pages 16-17.
14
MODEL SPECIFICATIONS
Model Basic ........................................................ TIPPMANN
Caliber ............................................................................................ .68
Action ................................. Semi-Automatic (open bolt blow-back)
Power/Air Supply ........... compressed air, nitrogen or CO
Hopper Capacity ......................................................... 200 Paintballs
Ball Feed ........................................ TIPPMANN
Standard Barrel Length ............................................. 8.5" /21.59 cm
Length (with standard barrel & no tank) .................... 20" / 50.8 cm
Effective Range ...................................... 150+ feet / 45.72+ meters
Cycle Rate ..................................................... 8 Rounds Per Second
Weight (without tank) .......................................... 3.12 lbs / 1.415 kg
Velocity ................. Always measure your marker's velocity before
playing paintball and never shoot at velocities in excess of 300
feet / 91.44 meters per second (see instructions on page 7).
Model Specific ...................... TIPPMANN
Cycle Rate .......................... adjustable 8 - 15 Rounds Per Second
Battery ........................................................................................ 9 Volt
Weight (without tank) ............................................ 3.27 lbs / 1.48 kg
Model Specific ......................... TIPPMANN
Cycle Rate ................................................... 15 Rounds Per Second
Weight (without tank) ............................................ 3.16 lbs / 1.43 kg
Model Specific ............................. TIPPMANN
Flatline Barrel Length .............................................. 8.75" / 22.23cm
Length (no tank) ................. 27.25" - 30.75" / 69.21 cm - 78.1 cm
Weight (without tank) ................................................. 5 lbs / 2.27 kg
Cycle Rate ...................................................... 8 Rounds per second
Effective Range ............................................... 250+ ft / 76.2 meters
Model SpecificParts: A-5
Not Shown on A-5 TM Basic Parts List pages 16-17.
H-01
Remote Coil
(replaces
(replaces standard
standard
Gas Line
and Tank
Adaptor)
cylinder
2
® TM
Cyclone
® TM
A-5 WITH E-GRIP
® A-5 TM RESPONSE
® A-5 TM STEALTH
STEALTH
TM TM
T201012 02-TAC
Collapsible Stock
FLATLINE TM
(replaces
standard End
Barrel & Barrel
Cap assembly)
Adaptor)
98-40
O-ring
15
® A-5 TM
E
N
G
L
System
I
S
H
TM
TM
