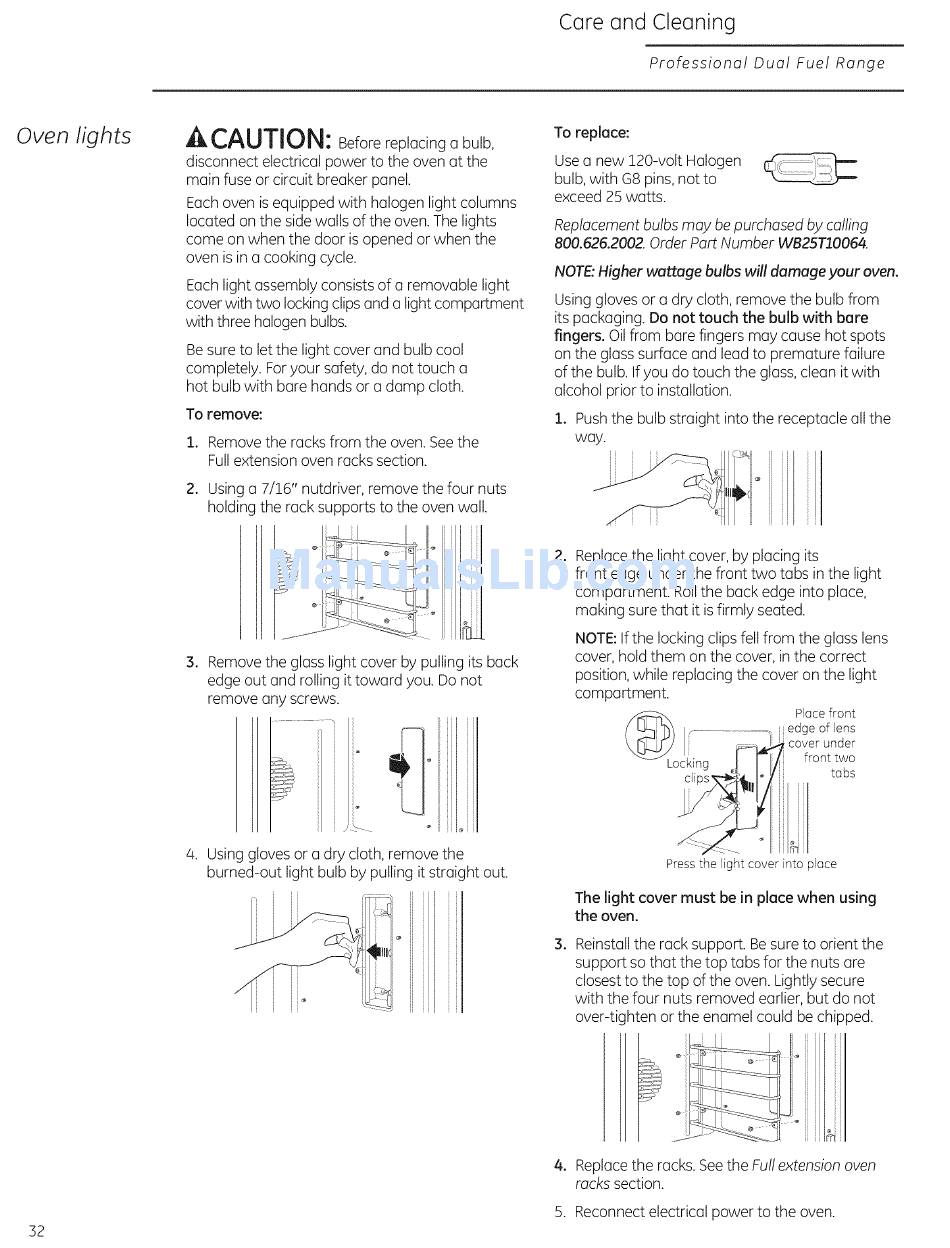

Care and Cleaning
Professional Dual Fuel Range
Oven lights
A CAUTION:
Before replacing a bulb,
disconnect electrical power to the oven at the
main fuse or circuit breaker panel.
Eachoven is equipped with halogen light columns
located on the side walls of the oven. The lights
come on when the door is opened or when the
oven is in a cooking cycle.
Eachlight assembly consists of a removable light
cover with two locking clips and a light compartment
with three halogen bulbs.
Be sure to let the light cover and bulb cool
completely. Foryour safety, do not touch a
hot bulb with bare hands or a damp cloth.
To remove:
.
.
Remove the recks from the oven. See the
Full extension oven recks section.
Using a 7/16" nutdriver, remove the four nuts
holdin( the reck supports to the oven well.
.
4.
Remove the glass light cover by pulling its back
edge out and rolling it toward you. Do not
remove any screws.
f .......... ]
/
Using gloves or a dry cloth, remove the
burned-out light bulb by pulling it straight out.
i o
i_ i ii
To replace:
Use a new 120-volt Halogen
bulb, with G8 pins, not to
exceed 25 watts.
Replacement bulbs may be purchased by calling
800.626.2002.Order Part Number WB25TlO064.
NOTE:Higher wattage bulbs will damage your oven.
Using gloves or a dry cloth, remove the bulb from
its packaging. Do not touch the bulb with bare
fingers. Oil from bare fingers may cause hot spots
on the glass surface and lead to premature failure
of the bulb. If you do touch the glass, clean it with
alcohol prior to installation.
.
Pushthe bulb straight into the receptacle all the
way.
J
_J
_J
_J
_J
i
i
i
J
.
Replacethe light cover, by placing its
front edge under the front two tabs in the light
compartment. Rollthe back edge into place,
making sure that it is firmly seated.
NOTE:If the locking clips fell from the glass lens
cover, hold them on the cover, in the correct
position, while replacing the cover on the light
compartment.
_Lock pgs_ C Place front
................... edge of lens
_! cover under
front two
lii tabs
Press the light cover into place
.
.
The light cover must be in place when using
the oven.
Reinstallthe rack support. Be sure to orient the
support so that the top tabs for the nuts are
closest to the top of the oven. Lightly secure
with the four nuts removed earlier, but do not
over-tic hten or the enamel could be chipped.
Replacethe racks, See the Full extension oven
racks section.
5. Reconnect electrical power to the oven.
