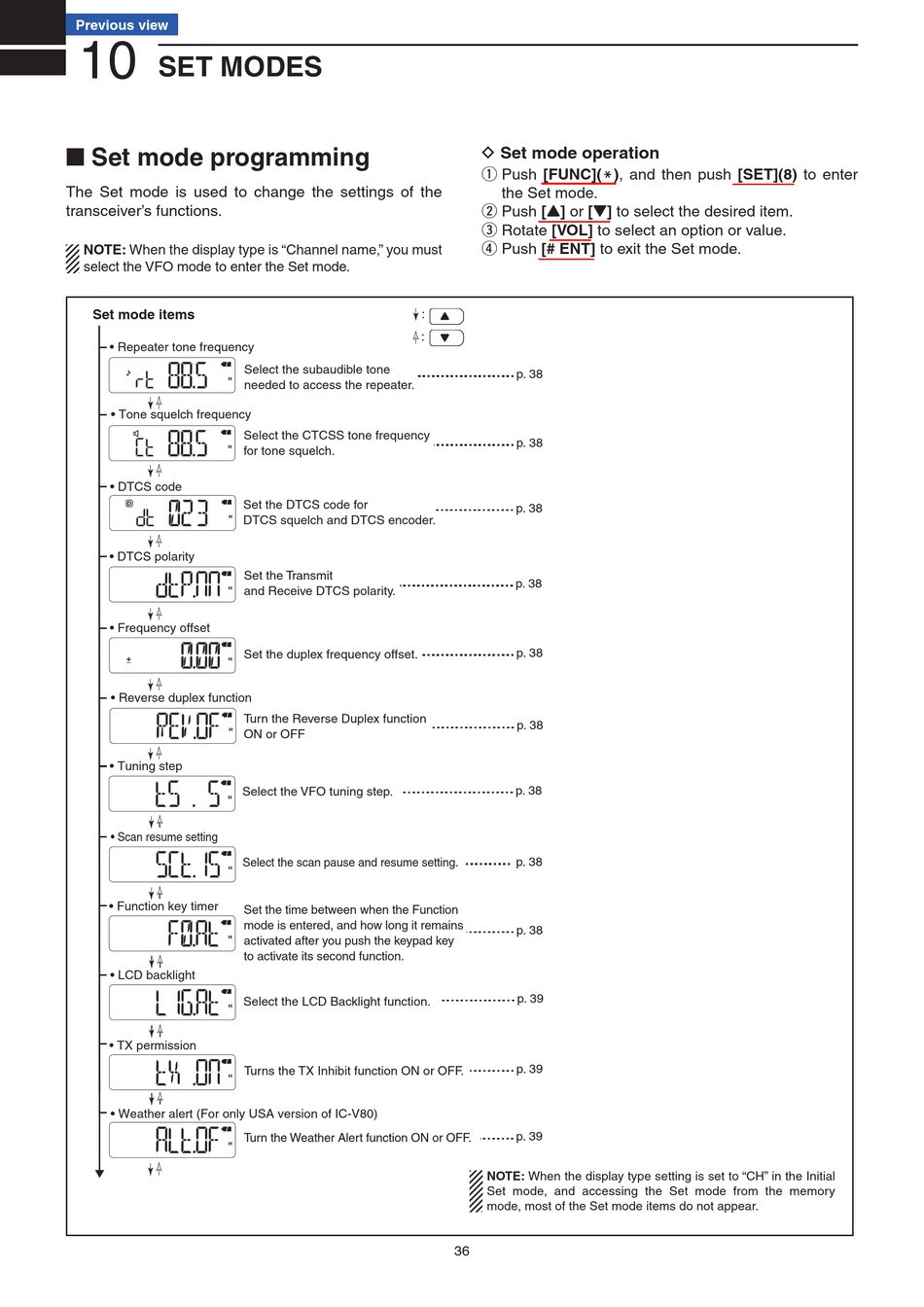

Set Modes; Set Mode Programming - Icom IC-V80 Instruction Manual

Previous view
10

SET MODES

■ Set mode programming

The Set mode is used to change the settings of the
transceiver's functions.
NOTE: When the display type is "Channel name," you must
select the VFO mode to enter the Set mode.
Set mode items
• Repeater tone frequency
• Tone squelch frequency
• DTCS code
• DTCS polarity
• Frequency offset
• Reverse duplex function
• Tuning step
• Scan resume setting
• Function key timer
• LCD backlight
• TX permission
• Weather alert (For only USA version of IC-V80)
Select the subaudible tone
needed to access the repeater.
Select the CTCSS tone frequency
for tone squelch.
Set the DTCS code for
DTCS squelch and DTCS encoder.
Set the Transmit
and Receive DTCS polarity.
Set the duplex frequency offset.
Turn the Reverse Duplex function
ON or OFF
Select the VFO tuning step.
Select the scan pause and resume setting.
Set the time between when the Function
mode is entered, and how long it remains
activated after you push the keypad key
to activate its second function.
Select the LCD Backlight function.
Turns the TX Inhibit function ON or OFF.
Turn the Weather Alert function ON or OFF.
D Set mode operation
q Push [FUNC](M), and then push [SET](8) to enter
the Set mode.
w Push [Y] or [Z] to select the desired item.
e Rotate [VOL] to select an option or value.
r Push [# ENT] to exit the Set mode.
:
:
p. 38
p. 38
p. 38
p. 38
p. 38
p. 38
p. 38
p. 38
p. 38
p. 39
p. 39
p. 39
NOTE: When the display type setting is set to "CH" in the Initial
Set mode, and accessing the Set mode from the memory
mode, most of the Set mode items do not appear.
36
