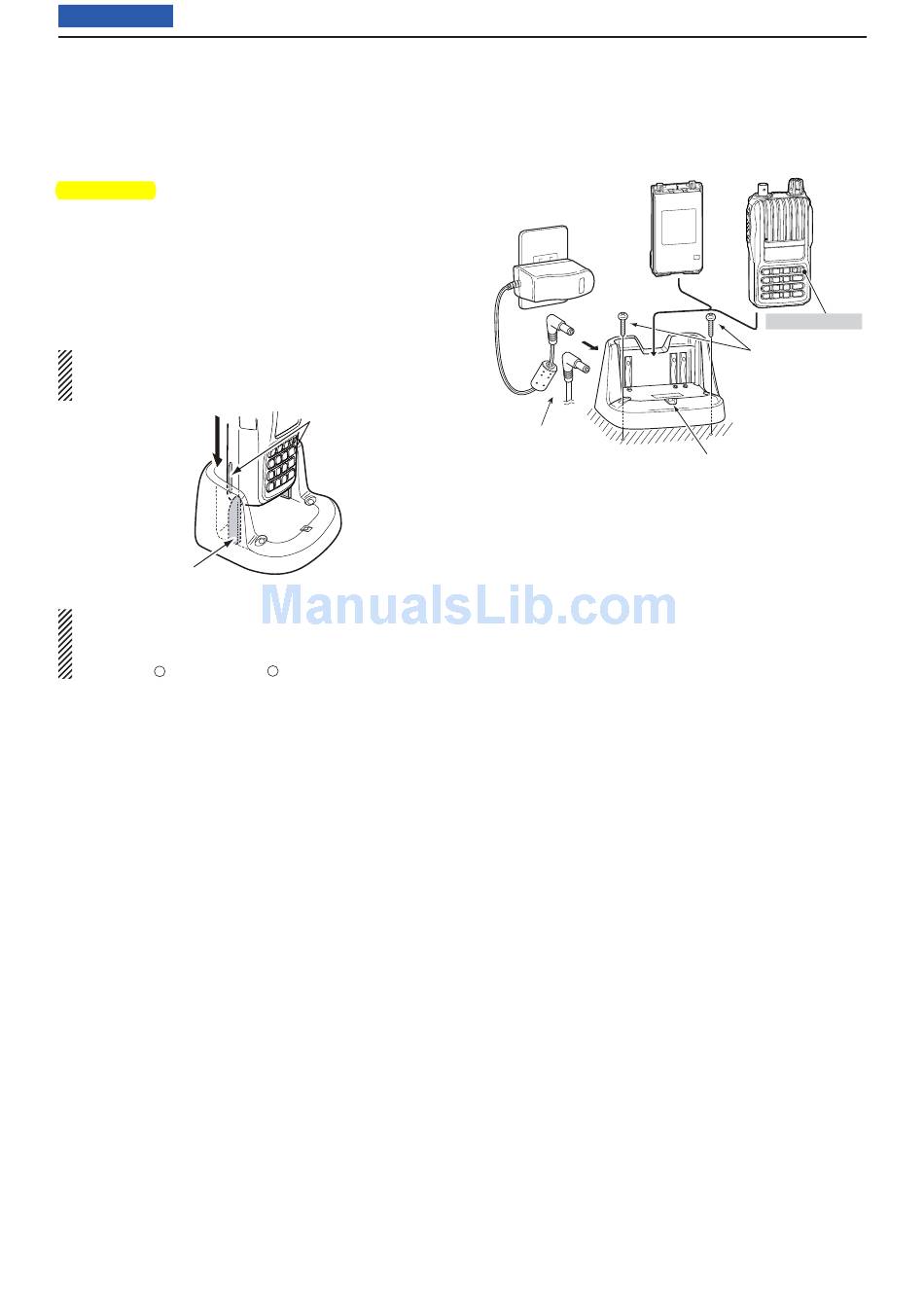

BATTERY CHARGING
D Using the BC-193 to rapid charge the BP-265
The BC-193 provides rapid charging of only the BP-265
Li-ion battery pack. Never use it to charge any other
battery pack.
Charging time: Approximately 2.5 hours
The following item is additionally required:
• An AC adapter (not supplied with some versions) or the
OPC-515L or CP-23L DC power cable.
IMPORTANT: Battery charging caution
Ensure the tabs on the battery pack are correctly
aligned with the guide rails inside the charger.
Guide rail
CAUTION: When using the OPC-515L DC power cable
NEVER connect the OPC-515L to a power source us-
ing reverse polarity. This will ruin the battery charger.
White line: + Black line:
Tabs
–
AC adapter
(A different type, or no AC
adapter is supplied, de-
pending on the version.)
The optional OPC-515L
(for DC power source)
or CP-23L (for 12 V
cigarette lighter socket)
can be used instead of
the AC adapter.
8
Battery pack Transceiver
Turn OFF power
Screws*
(Self tapping screw:
M3.5 × at least 30 mm)
*Purchase separately.
Using screws
recommended
secure the charger.
Charge indicator
• Lights orange : While charging
• Lights green : Charging is completed.
is
to
