Keyboard Removal - EUROCOM W880CU Service Manual

Keyboard Removal

1. Turn off the computer, remove the battery
CPU fans (page 2 - 17), video card heatsink
2. Open the rear cover , remove the screws
1
( Figure 19a ) .
3. Turn the computer over, open the Lid/LCD and lift the hinge cover module
( Figure 19b ) .
4. Turn the computer over again, press at point
need to use a small screwdriver to do this).
5. Turn the computer over, open the Lid/LCD and carefully lift the LED cover module
( Figure 19d )
5 5
a.
1
3
b.
6
7
c.
(page 2 - 5), remove the component bay cover
(page 2 - 17) and CPU heat sink
- and press at point
2 4
( Figure 19c ) to unsnap the LED cover module
9
5
d.
2
4
8
9
(page 2 - 10), VGA &
(page 2 - 20).
to unsnap the the hinge cover module
5
and disconnect the cables
6
(you may
10
and disconnect the cable
10
10
11
Disassembly

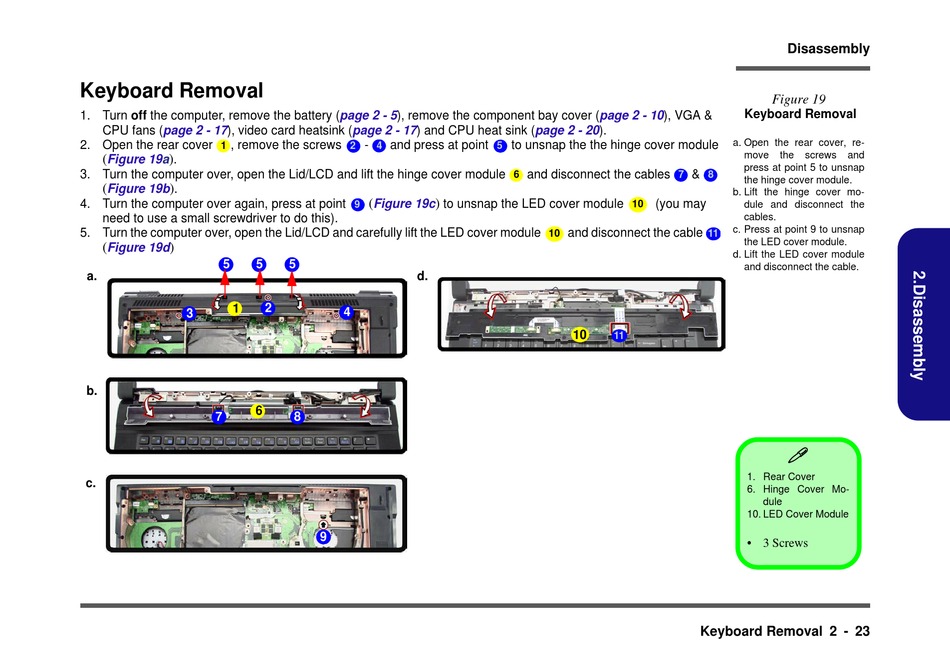

Figure 19
Keyboard Removal
a. Open the rear cover, re-
move the screws and
press at point 5 to unsnap
&
7 8
the hinge cover module.
b. Lift the hinge cover mo-
dule and disconnect the
cables.
c. Press at point 9 to unsnap
11
the LED cover module.
d. Lift the LED cover module
and disconnect the cable.

1. Rear Cover
6. Hinge Cover Mo-
dule
10. LED Cover Module
• 3 Screws
Keyboard Removal 2 - 23
