Fader Test - Euphonix System 5 Control Surface/Frame Manual

Fader Test

• All fader up
• All fader down
• Fader cycle test with speed control
• Fader echo test
• Touch Sense Test
• Backstop PFL switch test
• Fader Write value display
• Fader Read value display
• TFT backlight brightness test
This test is not accessible from the lower board.
CM401/CM408
S5 Control Surface/Frame Manual

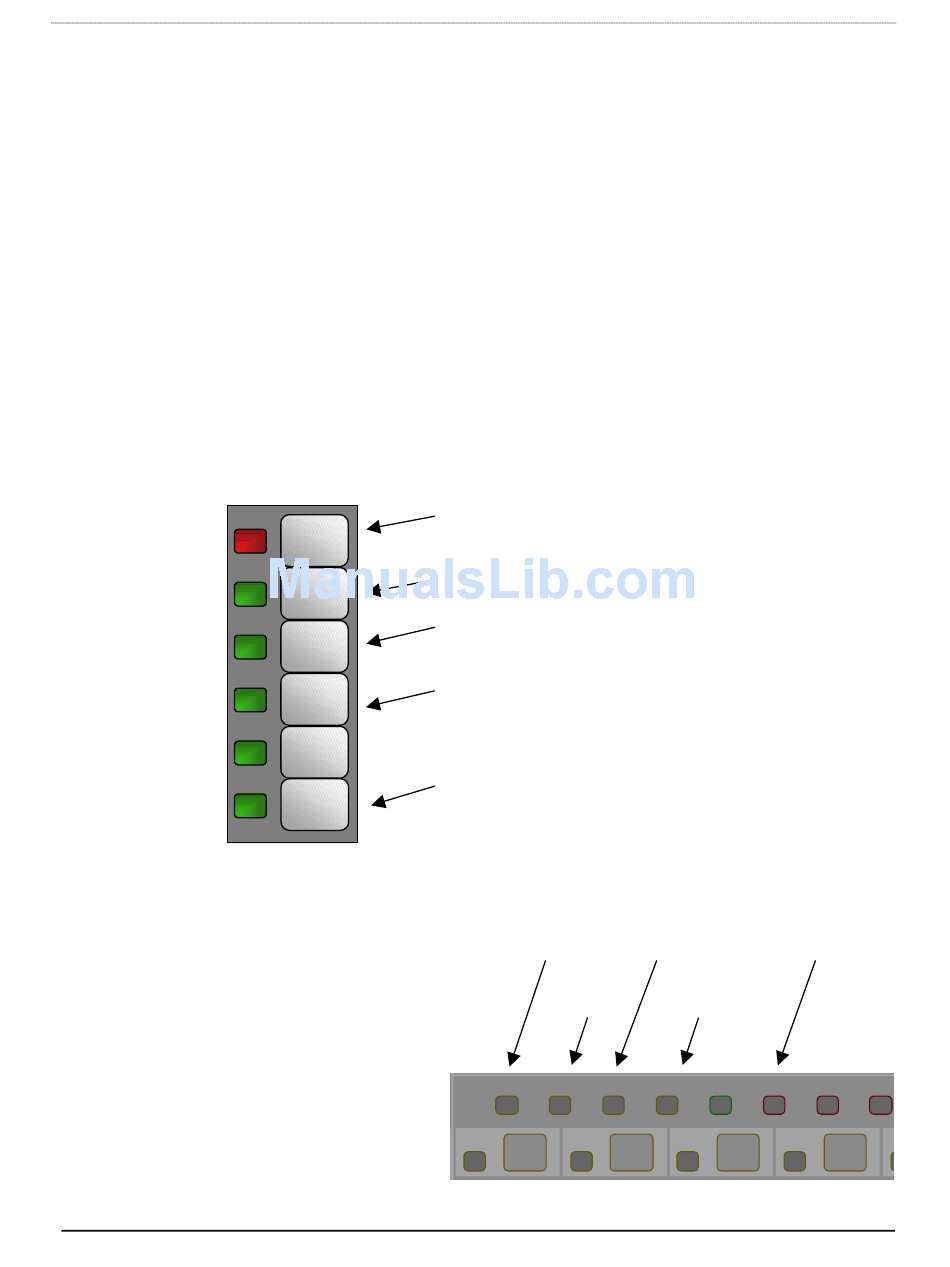

All Fader Up
*
All Fader Down
Input
Fader Cycle
Dyn
Fader Echo
EQ
Aux
Exit Test Key/Exit to
main
Pan
All
Fader
Fader
Cycle
Up
All
Fader
Down
Num Grp
Slv
swap swap
CM402
Page 40 Version 1.0 ©1999 Euphonix, Inc.
Exit
Test
Fader
Echo
Strp On Solo Cpy
swap swap
Pst
