Intelligent Display Test

Display bit test – This test lights up the whole of the intelligent display. It dims
the displays for the duration of this test to protect them from overheating and
burnout.
Display text - This test shows a text on each intelligent display, which happens
to be the hexadecimal display number in the software map.
This test is not accessible from the lower board.

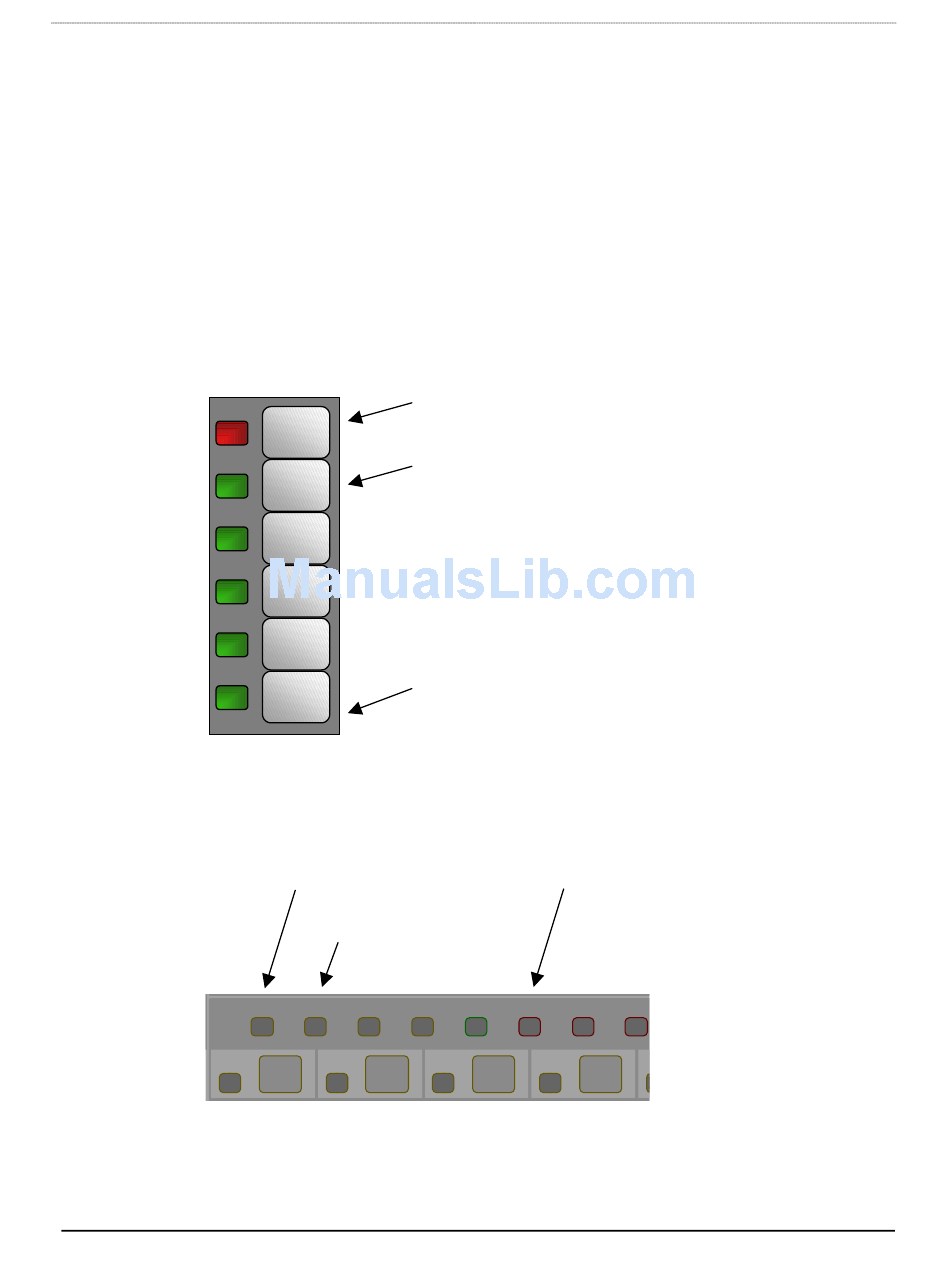

CM402/CM408
S5 Control Surface/Frame Manual
Display bits test
*
Display text test
Input
Dyn
EQ
Aux
Exit Test
Pan
Key/Exit to main
Display
Bits Test
Display
Text Test
Num Grp Strp
Slv
swap swap
CM402
Exit Test
On Solo Cpy Pst
swap swap
