Filler Modules

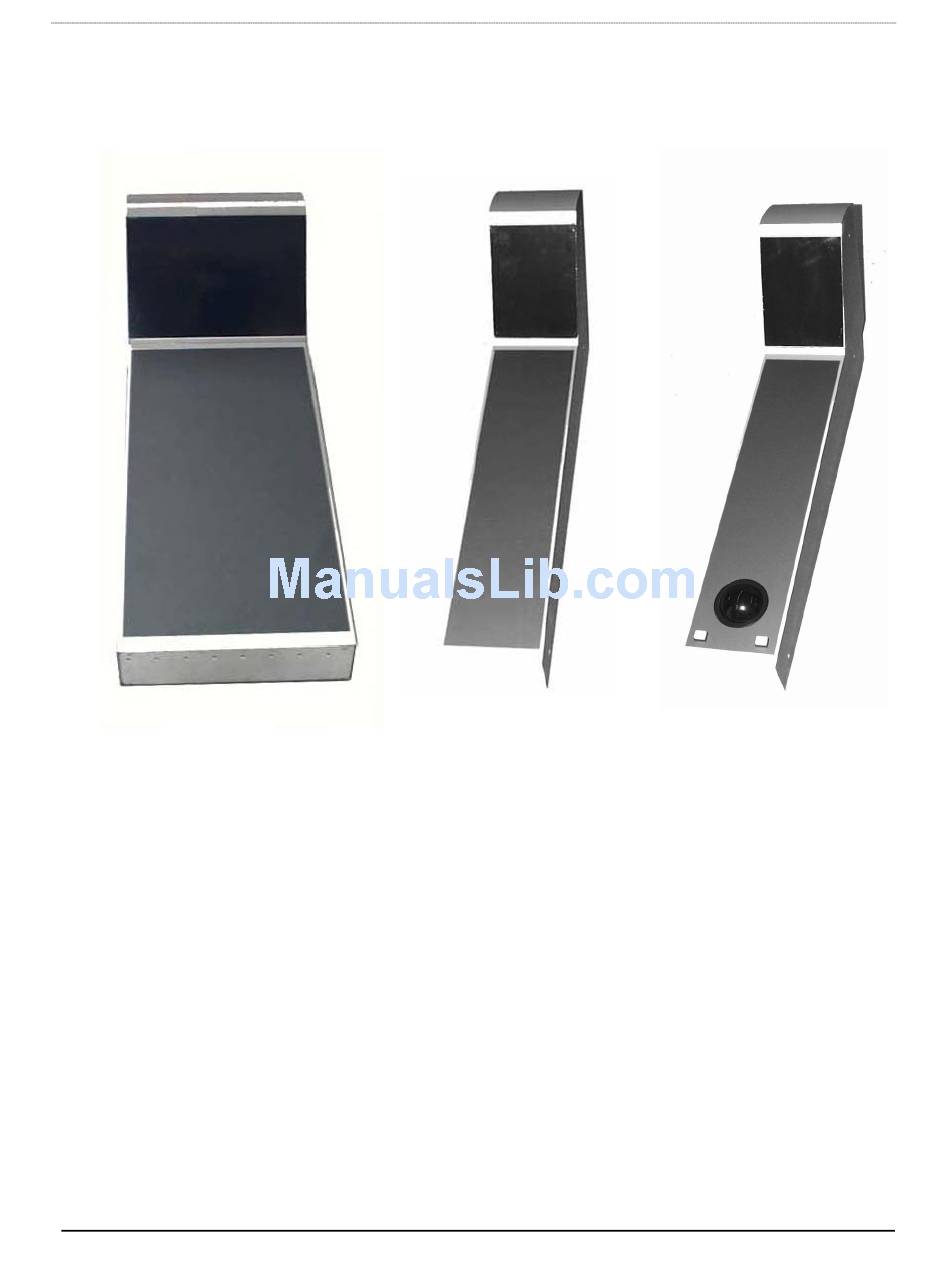

CM409F
CM409F- This is the full-wide blank module for S5 Control surfaces. It can be
placed anywhere within the control surface to fill up the frame. It provides a working
surface for remote controls, keyboards, etc. Order part# 946-06651-01.
CM409H- This module is a half-wide blank module for S5 Control surfaces. It
module is similar to a CM409F but only half the width. Order part# 946-06650-01.
CM409HTP- This module is a half-wide Track Panner. It is the same width as the
CM409H. The CM409HTP contains a high quality track ball for panning and two
switches for Pan Select/Punch and Channel Pan Function. Order part# 946-07000-01.
S5 Control Surface/Frame Manual
CM409H
Page 22
CM409HTP
