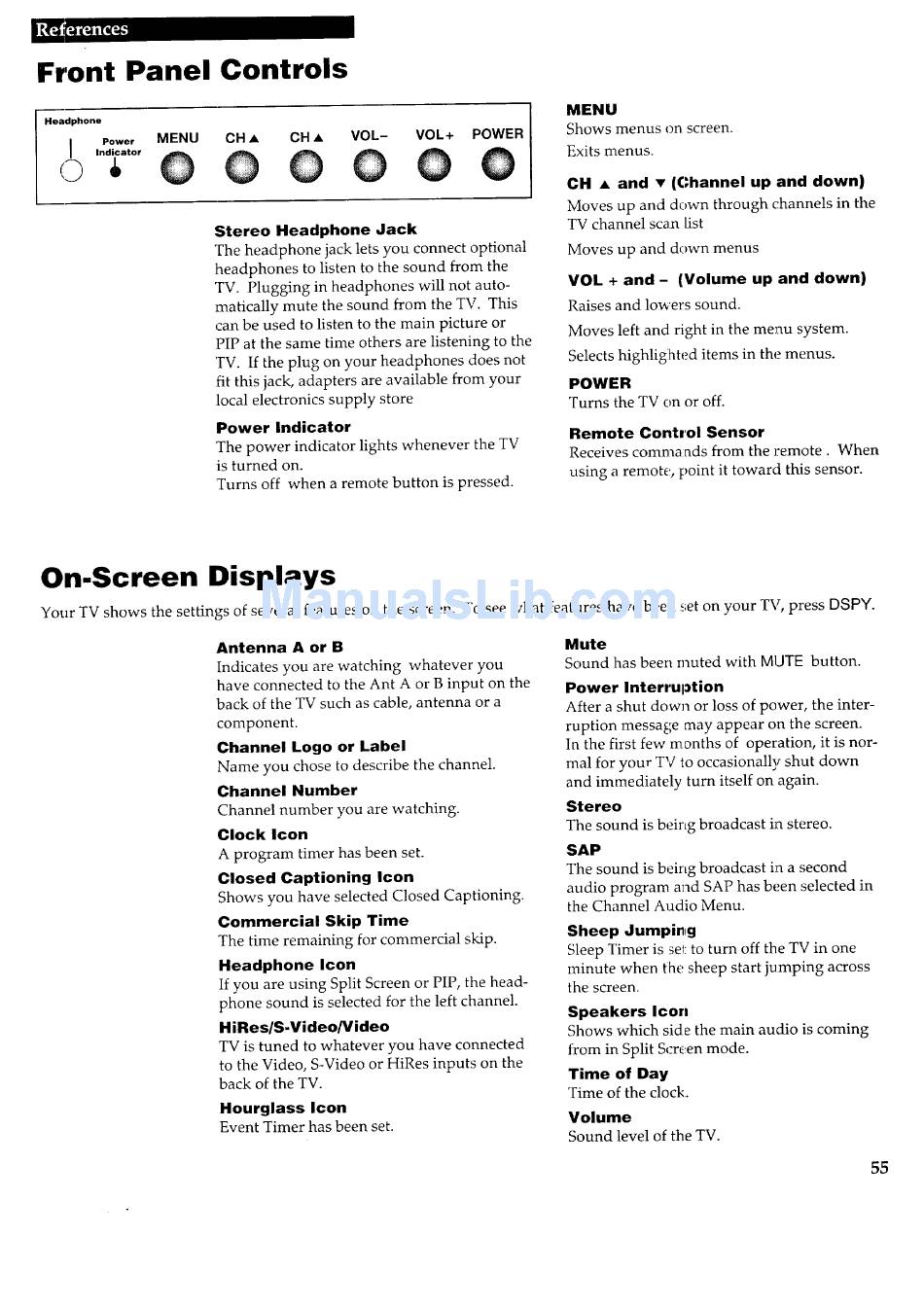

Front Panel Controls
Headphone
Power
MENU
I Indicator
CH • VOL- VOL+ POWER
CHA
©
Stereo Headphone Jack
The headphone jack lets you connect optional
headphones to listen to the sound from the
TV. Plugging in headphones will not auto-
matically mute the sound from the TV. This
can be used to listen to the main picture or
PIP at the same Lime others are listening to the
TV. If the plug on your headphones does not
fit this jack, adapters are available from your
local electronics supply store
Power Indicator
'The power indicator lights whenever the TV
is turned on.
Turns off when a remote button is pressed.
MENU
Shows menus on screen.
Exits menus.
CH • and • (Channel up and down)
Moves up and down through channels in the
TV channel scan list
Moves up and down menus
VOL + and - (Volume up and down)
Raises and lowers sound.
Moves left and right in the menu system.
Selects highlighted items in the menus.
POWER
Turns the TV on or off.
Remote Control Sensor
Receives commands from the ]:emote. When
using a remote, point it toward this sensor.
On.Screen Displays
Your TV shows the settings of several features on the screen. To see what features have been set on your TV, press DSPY.
Antenna A or B
Indicates you are watching whatever you
have connected to the Ant A or B input on the
back of the TV such as cable, antenna or a
component.
Channel Logo or Label
Name you chose to describe the channel.
Channel Number
Channel number you are watching.
Clock Icon
A program timer has been set.
Closed Captioning Icon
Shows you have selected Closed Captioning.
Commercial Skip Time
The time remaining for commercial skip.
Headphone Icon
If you are using Split Screen or PIP, the head-
phone sound is selected for the left channel.
HiRes/S-Video/Video
TV is tuned to whatever you have connected
to the Video, S-Video or HiRes inputs on the
back of the TV.
Hourglass Icon
Event Timer has been set.
Mute
Sound has been muted with MUTE button.
Power Interruption
After a shut down or loss of power, the inter-
ruption message may appear on the screen.
In the first few months of operation, it is nor-
mal for your TV to occasionally shut down
and immediately turn itself on again.
Stereo
The sound is beirtg broadcast in stereo.
SAP
The sound is being broadcast in a second
audio program and SAP has been selected in
the Channel Audio Menu.
Sheep Jumpi_g
Sleep Timer is sel: to turn off the TV in one
minute when the sheep start jumping across
the screen.
Speakers Icon
Shows which side the main audio is coming
from in Split Screen mode.
Time of Day
Time of the clock.
Volume
Sound level of the TV.
55
