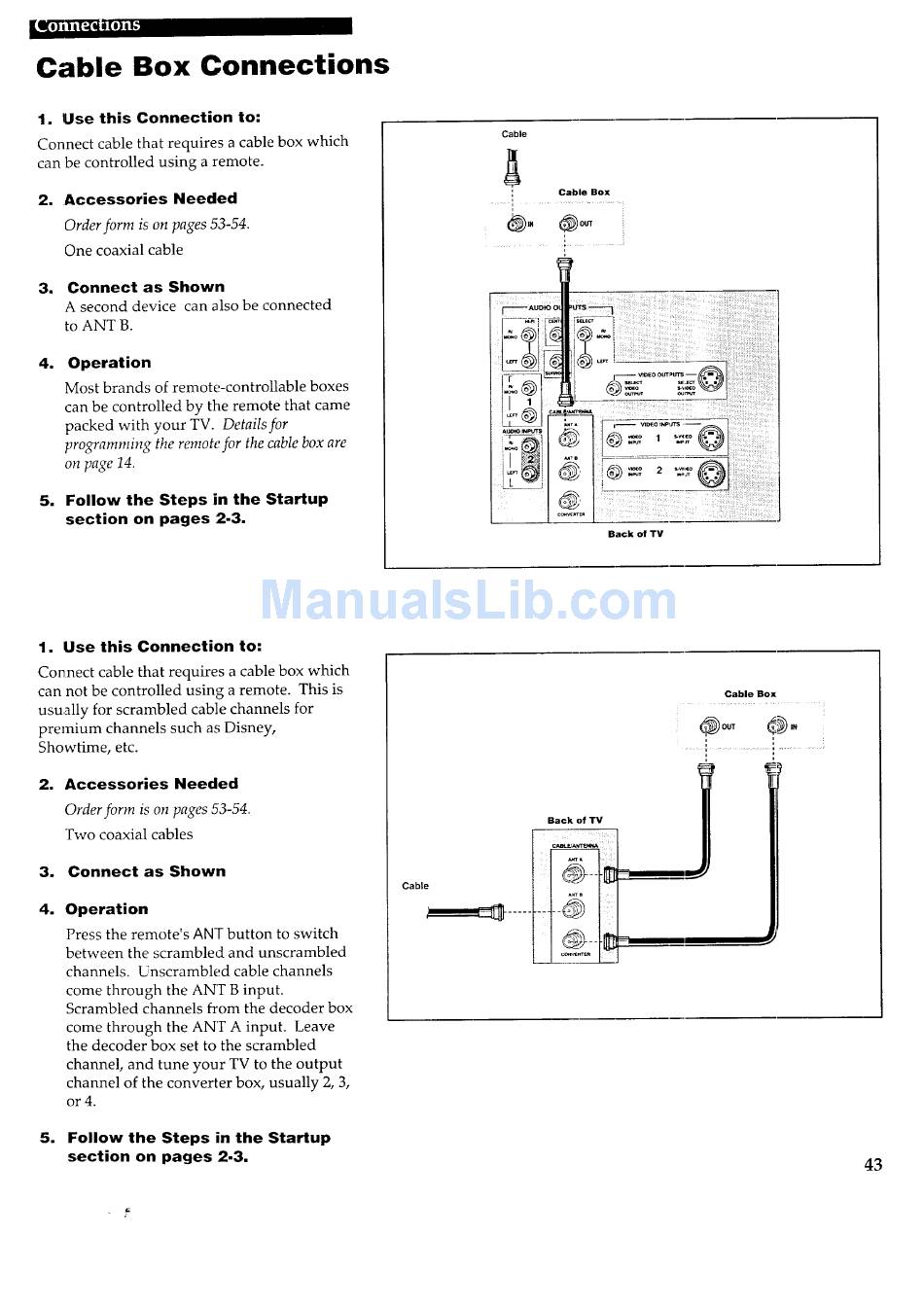

Cable Box Connections
1. Use this Connection to:
Connect cable that requires a cable box which
can be controlled using a remote.
=
Accessories Needed
Order form is on pages 53-54.
One coaxial cable
3. Connect as Shown
A second device can also be connected
to ANT B.
4. Operation
Most brands of remote-controllable boxes
can be controlled by the remote that came
packed with your TV. Details for
programming the remote for the cable box are
on page 14.
5. Follow the Steps in the Startup
section on pages 2-3.
Cable
Cable Box
I
Back of TV
1. Use this Connection to:
Connect cable that requires a cable box which
can not be controlled using a remote. This is
usually for scrambled cable channels for
premium channels such as Disney,
Showtime, etc.
=
Accessories Needed
Order form is on pages 53-54.
Two coaxial cables
3. Connect as Shown
=
Operation
Press the remote's AN-I-button to switch
between the scrambled and unscrambled
channels. Unscrambled cable channels
come through the ANT B input.
Scrambled channels from the decoder box
come through the ANT A input. Leave
the decoder box set to the scrambled
channel, and tune your TV to the output
channel of the converter box, usually 2, 3,
or 4.
5. Follow the Steps in the Startup
section on pages 2-3.
Cable
I _ .....
Cable Box
Back of TV
43
