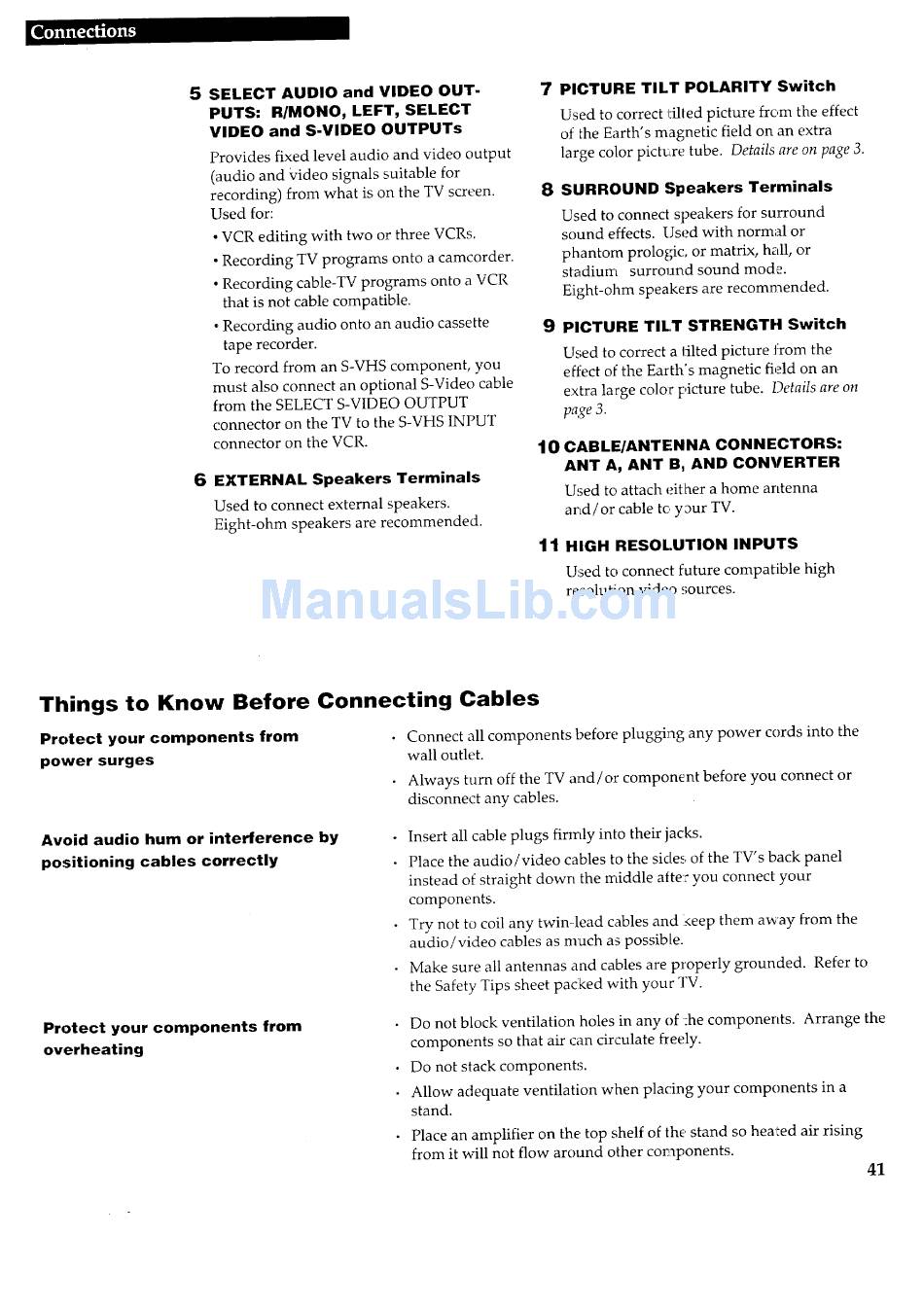

5
SELECT AUDIO and VIDEO OUT.
PUTS: R/MONO, LEFT, SELECT
VIDEO and S-VIDEO OUTPUTs
Provides fixed level audio and video output
(audio and igideo signals suitable for
recording) from what is on the TV screen.
Used for:
• VCR editing with two or three VCRs.
• Recording TV programs onto a camcorder.
• Recording cable-TV programs onto a VCR
that is not cable compatible.
• Recording audio onto art audio cassette
tape recorder.
To record from an S-VHS component, you
must also connect an optional S-Video cable
from the SELECT S-VIDEO OUTPUT
connector on the TV to the S-VHS INPUT
connector on the VCR.
6 EXTERNAL Speakers Terminals
Used to connect external speakers.
Eight-ohm speakers are recommended.
7
PICTURE TILT POLARITY Switch
Used to correct i:illed picture from the effect
of the Earth's magnetic field on an extra
large color picture tube. Details are on page 3.
8 SURROUND Speakers Terminals
Used to connect speakers for surround
sound effects. Used with normal or
phantom prolo_¢c, or matrix, hall, or
stadium surround sound mode.
Eight-ohm speakers are recommended.
9 PICTURE TILT STRENGTH Switch
Used to correct a tilted picture from the
effect of the Earth's magnetic field on an
extra large color picture tube. Details are on
page 3.
10 CABLE/ANTENNA CONNECTORS:
ANT A, ANT B, AND CONVERTER
Used to attach eitlher a home antenna
and/or cable to yaur TV.
11
HIGH RESOLUTION INPUTS
Used to connect future compatible high
resolution video sources.
Things to Know Before Connecting Cables
Protect your components from
power surges
Connect all components before plugging any power cords into the
wall outlet.
Always turn off the TV and/or component before you connect or
disconnect any cables.
Avoid audio hum or interference by
positioning cables correctly
• Insert all cable plugs firmly into their jacks.
• Place the audio/video cables to the sicles of the TV's back panel
instead of straight down the middle alte:: you connect your
components.
• Try not to coil any twin-lead cables and i.<eep them away from the
audio!video cables as much as possible.
Make sure all antennas and cables are properly grounded. Refer to
the Safety Tips sheet packed with your l'V.
Protect your components from
overheating
• Do not block ventilation holes in any of .he components. Arrange the
components so that air can circulate freely.
• Do not stack components.
• Allow adequate ventilation when placing your components in a
stand.
• Place an amplifier on the top shelf of the. stand so hea!ted air rising
from it will not flow around other coraponents.
41
