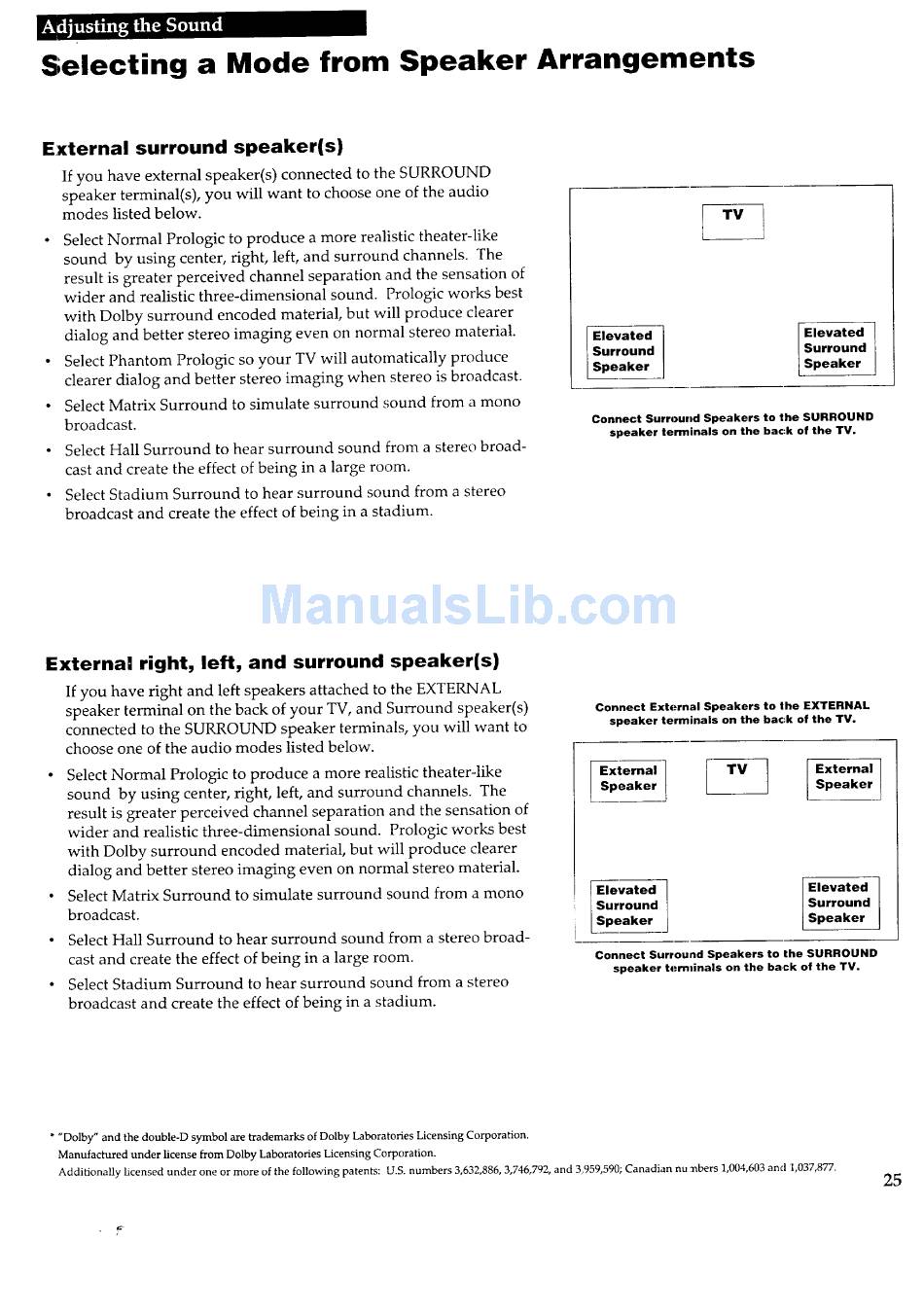

Selecting
a Mode
from
Speaker
Arrangements
External
surround
speaker(s)
If you have external speaker(s)
connected
to the SURROUND
speaker
terminal(s),
you will want to choose one of the audio
modes listed below.
•
Select Normal
Prologic to produce
a more realistic theater-like
sound
by using center, right, left, and surround
channels.
The
result is greater perceived
channel separation
and the sensation
of
wider and :realistic three-dimensional
sound.
Prologic works best
with Dolby surround
encoded
material, but will produce
clearer
dialog and better stereo imaging
even on normal stereo material.
• Select Phantom
Prologic so your TV will automatically
produce
clearer dialog and better stereo imaging
when stereo is broadcast.
• Select Matrix Surround
to simulate
surround
sound from a mono
broadcast.
• Select Hall Surround
to hear surround
sound from a stereo broad-
cast and create the effect of being in a large room.
• Select Stadium Surround
to hear surround
sound from a stereo
broadcast
and create the effect of being in a stadium.
Elevated
Surround
Speaker
Elevated
Surround
Speaker
Connect
Surround
Speakers
to the
SURROUND
speaker
terminals
on the bac:k of the TV.
Externa:
right,
left,
and
surround
speaker(s)
If you haw_ right and left speakers
attached
to the EXTERNAL
speaker terminal
on the back of your TV, and Surround
speaker(s)
connected
to the SURROUND
speaker
terminals,
you will want to
choose one of the audio modes listed below.
• Select Normal
Prologic to produce
a more realistic theater-like
sound
by •using center, right, left, and surround
channels.
The
result is greater perceived
channel separation
and the sensation
of
wider and realistic three-dimensional
sound.
Prologic works best
with Dolby surround
encoded material, but will produce
clearer
dialog and better stereo imaging
even on normal stereo material.
• Select Matrix Surround
to simulate
surround
sound from a mono
broadcast.
• Select Hall Surround
to hear surround
sound from a stereo broad-
cast and create the effect of being in a large room.
• Select Stadium
Surround
to hear surround
sound from a stereo
broadcast
and create the effect of being in a stadium.
Connect
ExtE._rnal Speakers
to |he
EXTERNAL
speaker
terminals
on the back
of the TV.
Exte°a
!
lOxte°al
Speaker
Speaker
Elevated
Surround
Speaker
Elevated
Surround
Speaker
Connect
Surround
Speakers
to the SURROUND
speaker
temminals
on the ba,ck of the TV.
* "Dolby"
and the double-D
symbol
are trademarks
of Dolby Laboratories
Licensing
Corporation.
Manufactured
under license
from Dolby Laboratories
Licensing
Corporation.
Additionally
licensed
under
one or more of the following
patents:
U.S. numbers
3,632,886, 3,746,792, and 3959,590;
Canadian
nu :nbers 1,004,603 and 1,037,877.
25
