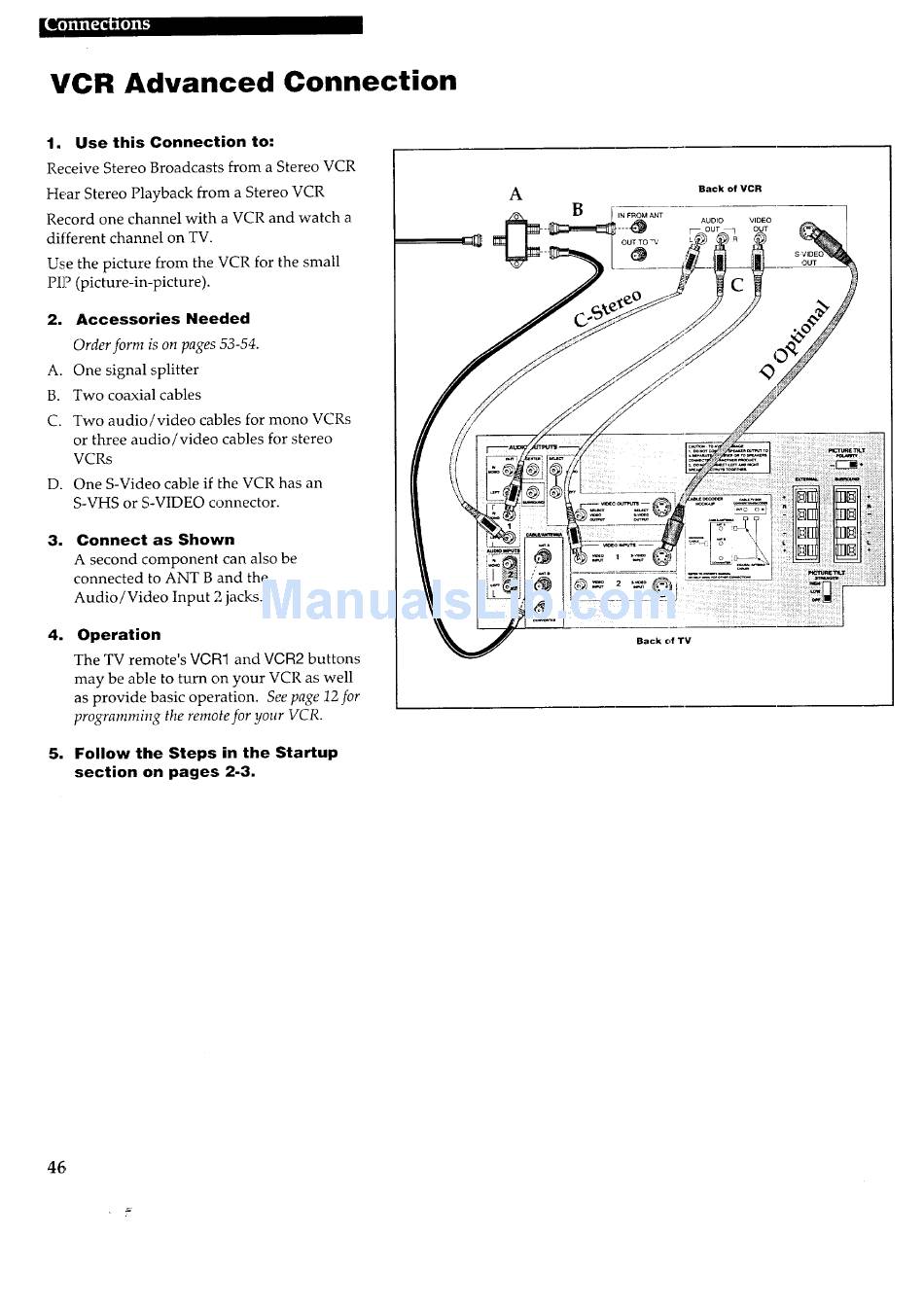

VCR Advanced Connection
1. Use this Connection to:
Receive Stereo Broadcasts from a Stereo VCR
Hear Stereo Playback from a Stereo VCR
Record one channel with a VCR and watch a
different channel on TV.
Use the picture from the VCR for the small
PIP (picture-in-picture).
2. Accessories Needed
Order form is on pages 53-54.
A. One signal splitter
B. Two coaxial cables
C. Two audio/video cables for mono VCRs
or three audio/video cables for stereo
VCRs
D. One S-Video cable if the VCR has an
S-VHS or S-VIDEO connector.
R
Connect as Shown
A second component can also be
connected to ANT B and the
Audio / Video Input 2 jacks.
4. Operation
The TV remote's VCR1 and VCR2 buttons
may be able to turn on your VCR as well
as provide basic operation. See page 12 for
programming the remote for your VCR.
5. Follow the Steps in the Startup
section on pages 2-3.
A
B
Back of VCR
Back €,f TV
46
