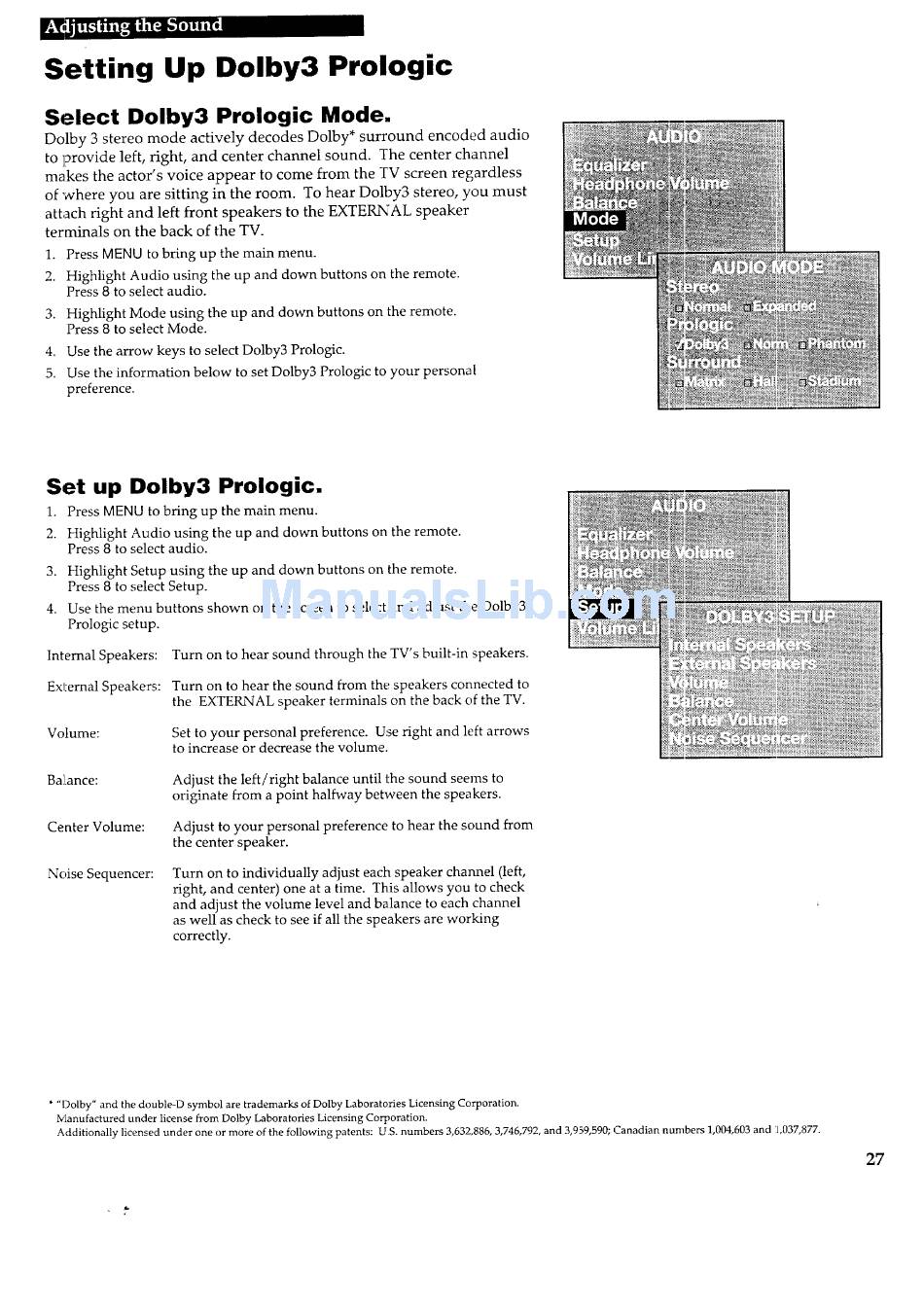

Setting Up Dolby3 Prologic
Select Dolby3 Prologic Mode.
Dolby 3 stereo mode actively decodes Dolby* surround encoded audio
to provide left, right, and center channel sound. The center channel
makes the actor's voice appear to come from the TV screen regardless
of where you are sitting in the room. To hear Dolby3 stereo, you must
attach right and left front speakers to the EXTERNAL speaker
terminals on the back of the TV.
1. Press MENU to bring up the main menu.
2. Highlight Audio using the up and down buttons on the remote.
Press 8 to select audio.
3. Highlight Mode using the up and down buttons on the remote.
Press 8 to select Mode.
4. Use the arrow keys to select Dolby3 Prologic.
5. Use the information below to set Dolby3 Prologic to your personal
preference.
Set up Dolby3 Prologic.
1. Press MENU to bring up the main menu.
2. Highlight Audio using the up and down buttons on the remote.
Press 8 to select audio.
3. Highlight Setup using the up and down buttons on the remote.
Press 8 to select Setup.
4. Use the menu buttons shown on the screen to select and adjust the Dolby3
Prologic setup.
Internal Speakers: Turn oil to hear sound through the TV's built-in speakers.
Exl:ernal Speakers: Turn on to hear the sound from the speakers connected to
the EXTERNAL speaker terminals on the back of the TV.
Volume:
Set to your personal preference. Use right and left arrows
to increase or decrease the volume.
B&ance:
Adjust the left/right balance until the sound seems to
originate from a point halfway between the speakers.
Center Volume:
Adjust to your personal preference to hear the sound from
the center speaker.
Noise Sequencer:
Turn on to individually adjust each speaker channel (left,
right, and center) one at a time. This allows you to check
and adjust the volume level and balance to each channel
as well as check to see if all the speakers are working
correctly.
* "Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
Manufactured under license from Dolby Laboratories Licensing Corporation.
Additionally licensed under one or more of the following patents: U S. numbers 3,632,886, 3,746,792, and 3,959,590; Canadian numbers 1,004,603 and L037,877.
