10. Expand the tree on the left to find the Fabric Watch OID information. To find the OID, navigate
FIGURE 6
11. Obtain the specific identifier for the element that will be modified. To get the identifier, click the
Fabric Watch Administrator's Guide
53-1002752-01
the following hierarchy: SW-MIB. bcsi. commDev; fibrechannel, fcSwitch, sw, swFWSystem.

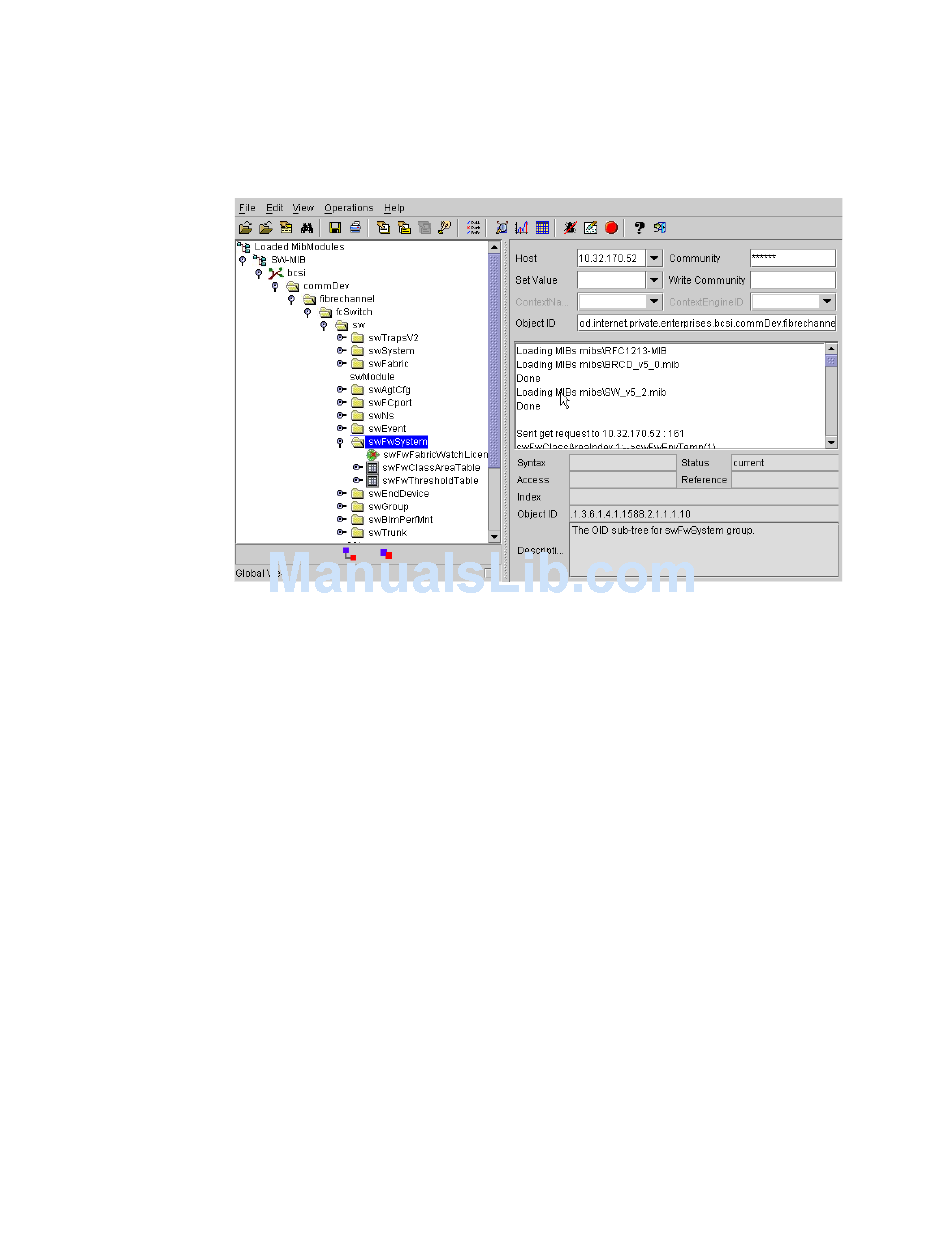

Fabric Watch displays a screen similiar to the one shown in
Example OID tree
swFwThresholdTable and swFwThresholdEntry directory, and run a get operation on
swFwName. A list of elements appears in which each element is preceded by an identifier.
Remember the numeric portion of the identifier, which appears before the "==>" symbol. You
can scroll through the list to find the numeric identifier for the element in which you are
interested.
For detailed descriptions of the SNMP fields in both Telnet and Web Tools, see the Fabric OS
MIB Reference.
Interfaces for activating Fabric Watch
Figure
6.
