Memory Locations and Replacement Procedures

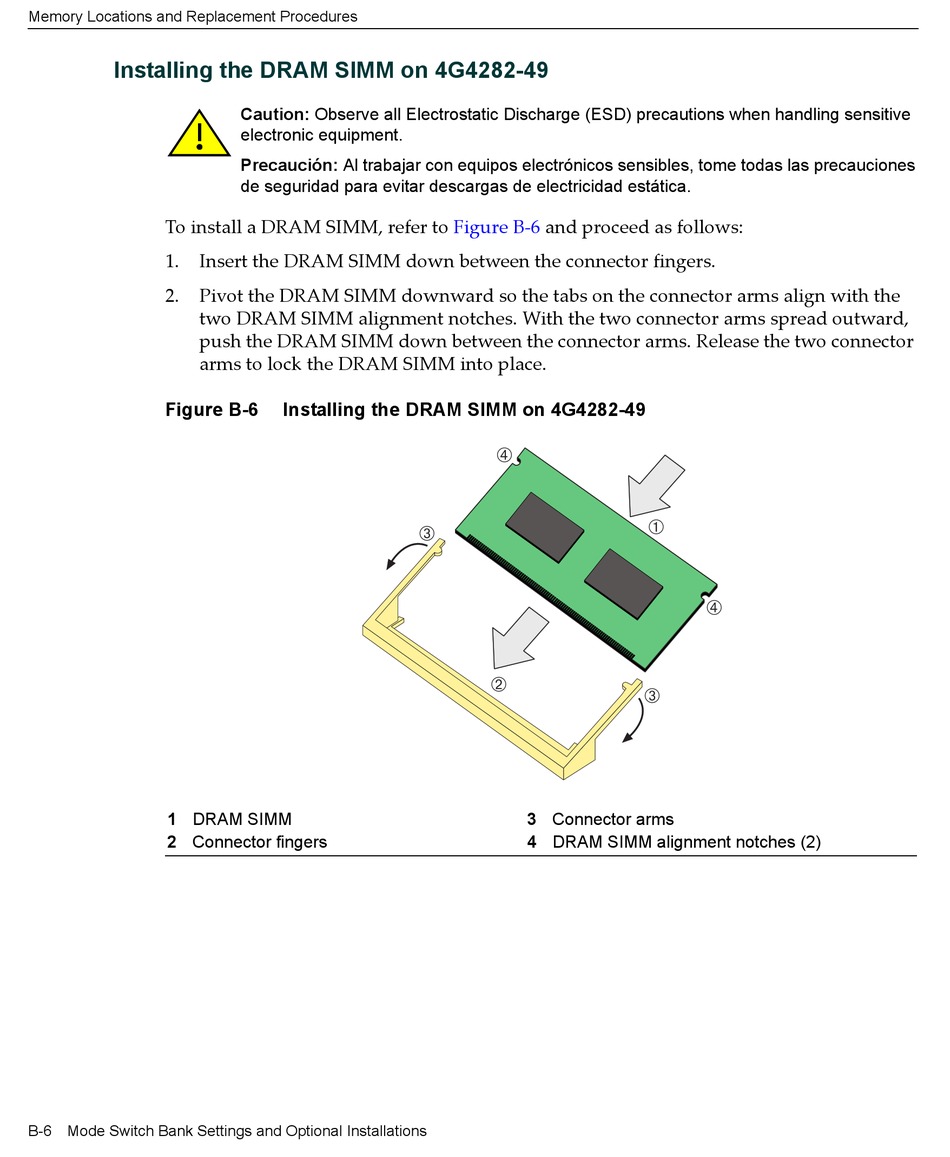

Installing the DRAM SIMM on 4G4282-49

To install a DRAM SIMM, refer to Figure

Insert the DRAM SIMM down between the connector fingers.

Pivot the DRAM SIMM downward so the tabs on the connector arms align with the

two DRAM SIMM alignment notches. With the two connector arms spread outward,

push the DRAM SIMM down between the connector arms. Release the two connector

arms to lock the DRAM SIMM into place.

Figure B-6

1 DRAM SIMM

2 Connector fingers

B-6 Mode Switch Bank Settings and Optional Installations

Caution: Observe all Electrostatic Discharge (ESD) precautions when handling sensitive

electronic equipment.

Precaución: Al trabajar con equipos electrónicos sensibles, tome todas las precauciones

de seguridad para evitar descargas de electricidad estática.

Installing the DRAM SIMM on 4G4282-49

B‐6 and proceed as follows:

3 Connector arms

4 DRAM SIMM alignment notches (2)
