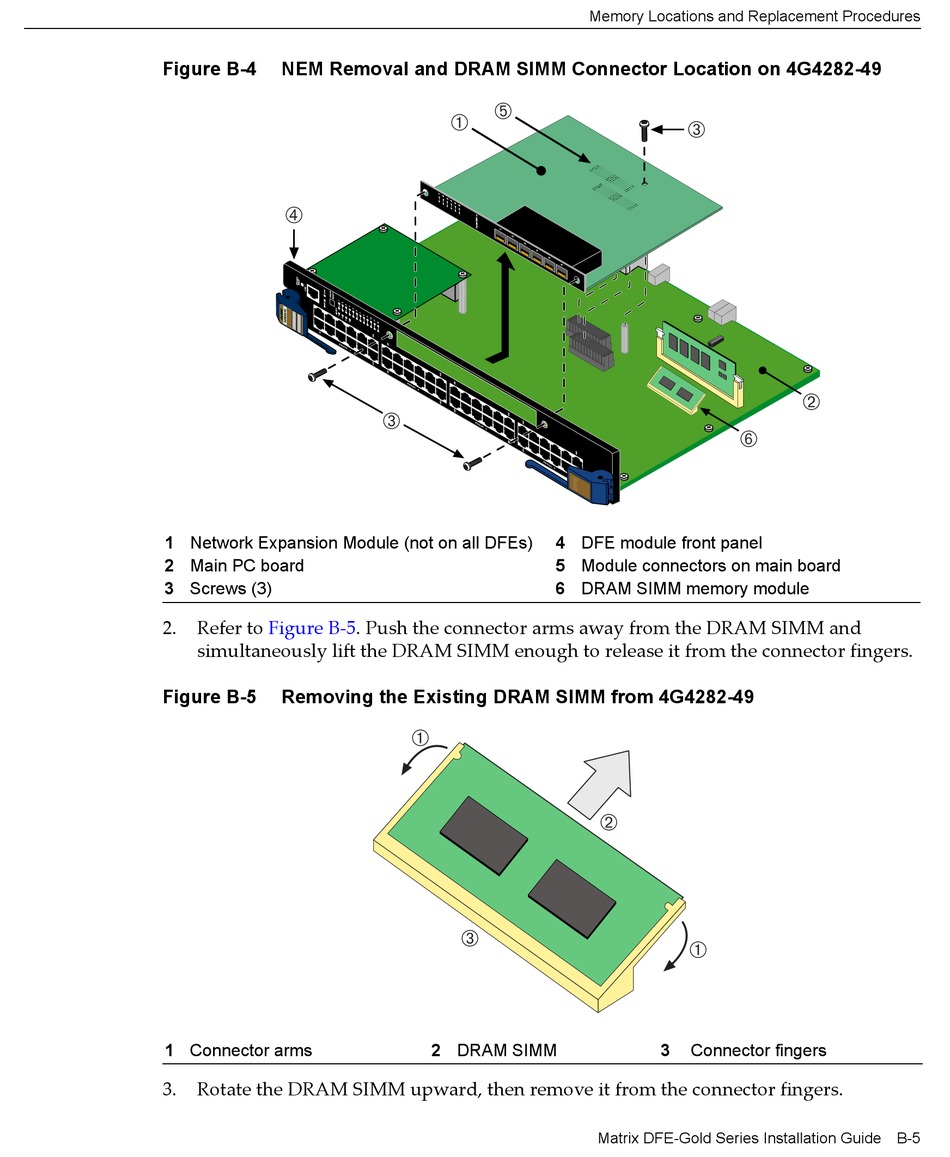

Figure B-4
NEM Removal and DRAM SIMM Connector Location on 4G4282-49
Ã
1 Network Expansion Module (not on all DFEs)
2 Main PC board
3 Screws (3)
2.
Refer to Figure
B‐5. Push the connector arms away from the DRAM SIMM and
simultaneously lift the DRAM SIMM enough to release it from the connector fingers.
Figure B-5

Removing the Existing DRAM SIMM from 4G4282-49

1 Connector arms
3.
Rotate the DRAM SIMM upward, then remove it from the connector fingers.
Ä
À
Â
4 DFE module front panel
5 Module connectors on main board
6 DRAM SIMM memory module
À
Â
2 DRAM SIMM
Memory Locations and Replacement Procedures
Â
Å
Á
À
3
Connector fingers
Matrix DFE-Gold Series Installation Guide B-5
