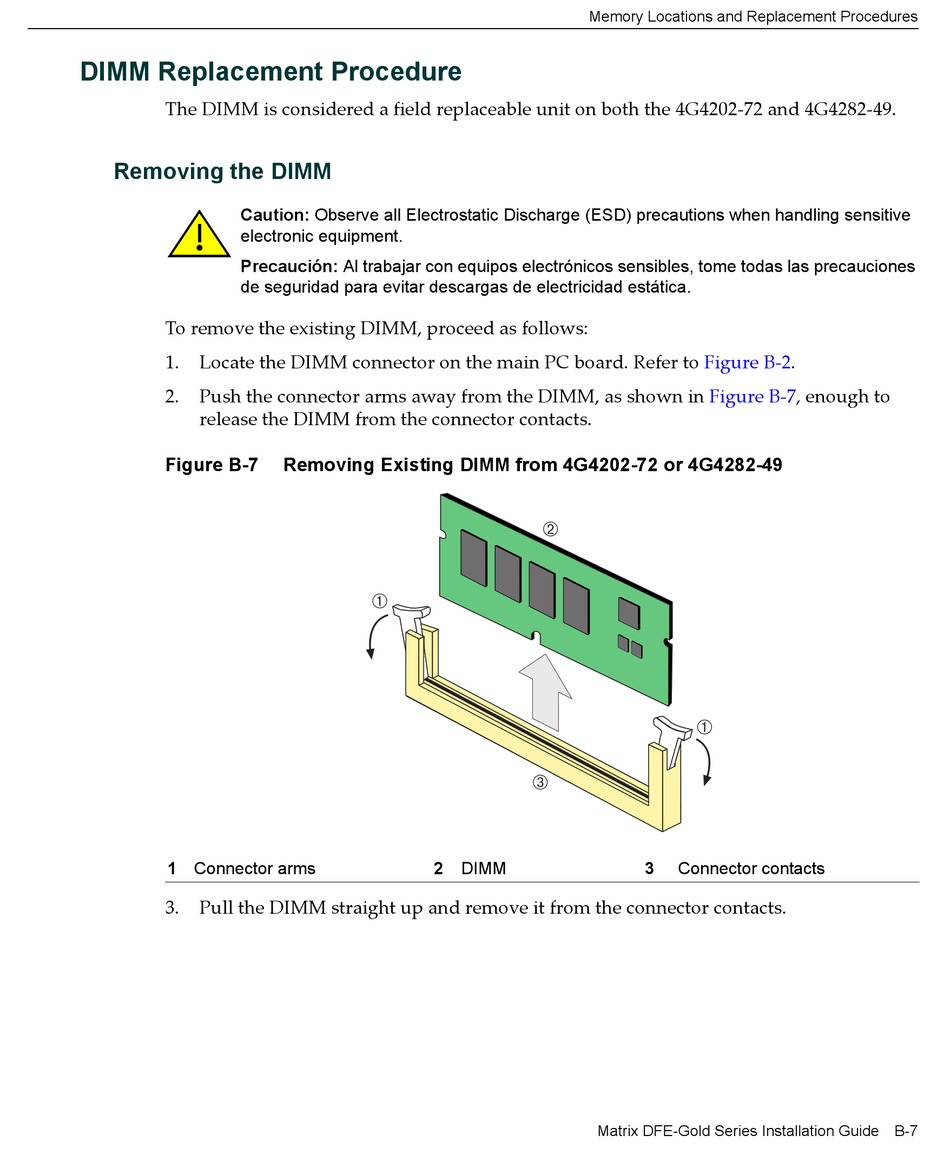

DIMM Replacement Procedure

The DIMM is considered a field replaceable unit on both the 4G4202‐72 and 4G4282‐49.

Removing the DIMM

Caution: Observe all Electrostatic Discharge (ESD) precautions when handling sensitive
electronic equipment.
Precaución: Al trabajar con equipos electrónicos sensibles, tome todas las precauciones
de seguridad para evitar descargas de electricidad estática.
To remove the existing DIMM, proceed as follows:
1. Locate the DIMM connector on the main PC board. Refer to Figure
2. Push the connector arms away from the DIMM, as shown in Figure
release the DIMM from the connector contacts.
Figure B-7
1 Connector arms
3. Pull the DIMM straight up and remove it from the connector contacts.

Removing Existing DIMM from 4G4202-72 or 4G4282-49

À
2 DIMM
Memory Locations and Replacement Procedures
Á
À
Â
3 Connector contacts
Matrix DFE-Gold Series Installation Guide B-7
B‐2.
B‐7, enough to
