Using LANVIEW

Viewing the Receive and Transmit Activity

On the 4G4202‐72 and 4G4282‐49, you can view the receive and transmit activity on the

RX and TX LEDs. However, only one group of ports may be viewed at a time. On the

4G4282‐49, there are 12 ports per group. On the 4G4202‐72, there are 24 ports per group.

To view the receive and transmit activity on a group of attached segments, press the

GROUP SELECT button (see Figure

the 4G4202‐72, and Groups 1–5 for the 4G4282‐49). Each time the GROUP SELECT button

is pressed, the GROUP LED lights up in sequence, indicating which group is selected. The

receive and transmit activity for that group of segments is then indicated by the RX and

TX LEDs for each port.

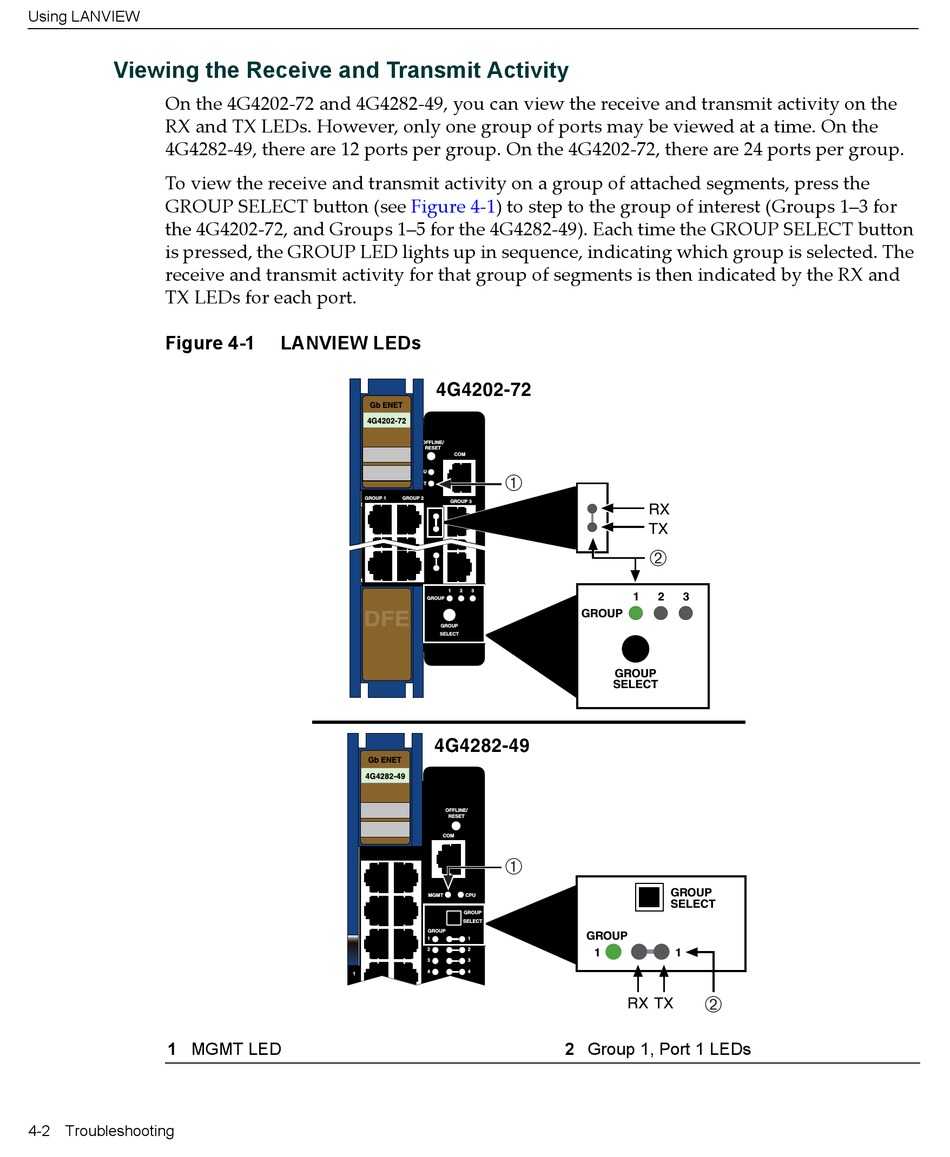

Figure 4-1

1 MGMT LED

4-2 Troubleshooting

LANVIEW LEDs

4‐1) to step to the group of interest (Groups 1–3 for

2 Group 1, Port 1 LEDs
