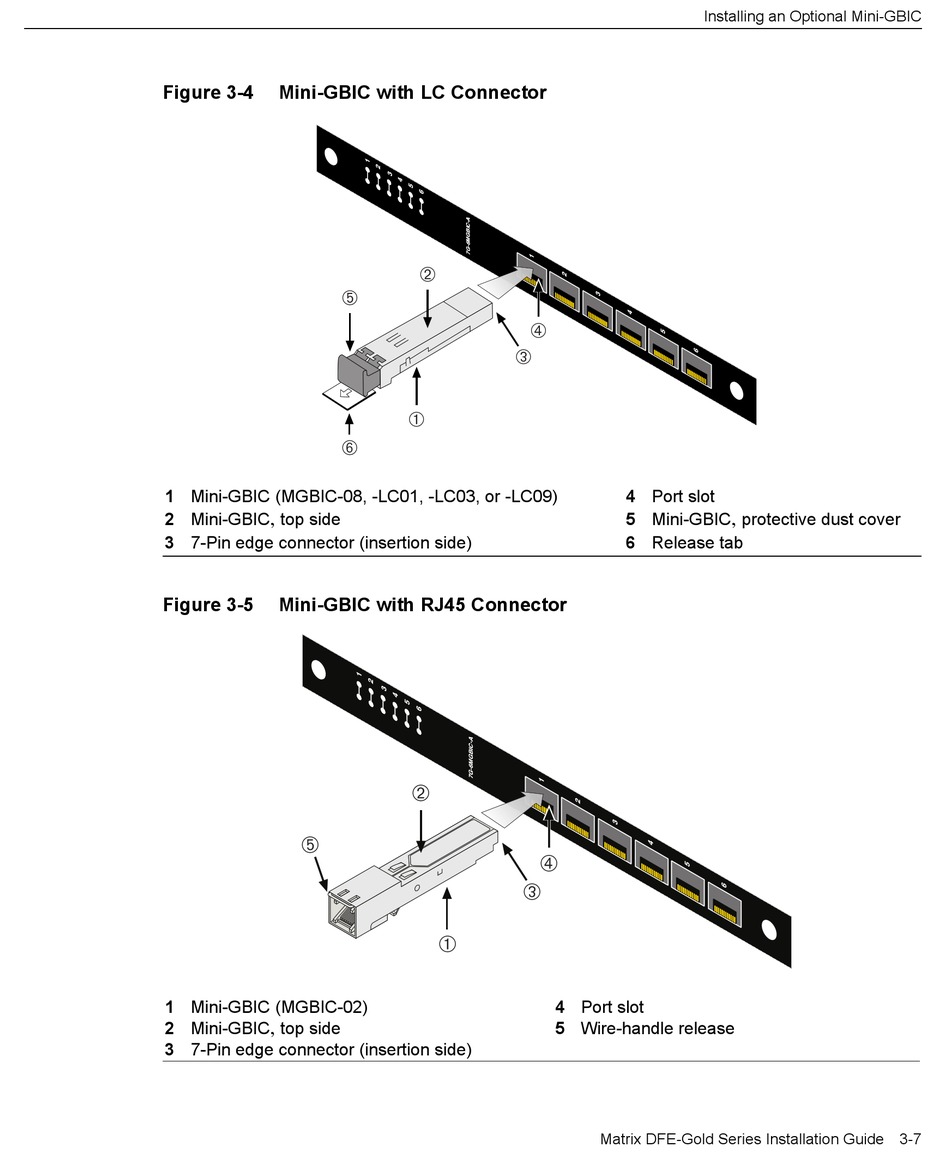

Figure 3-4
Mini-GBIC with LC Connector
Ä
Å
1 Mini-GBIC (MGBIC-08, -LC01, -LC03, or -LC09)
2 Mini-GBIC
top side
,
3 7-Pin edge connector (insertion side)
Figure 3-5
Mini-GBIC with RJ45 Connector
Ä
1 Mini-GBIC (MGBIC-02)
2 Mini-GBIC
top side
,
3 7-Pin edge connector (insertion side)
Á
Ã
À
Á
Ã
À
4 Port slot
5 Wire-handle release
Installing an Optional Mini-GBIC
4 Port slot
5 Mini-GBIC
protective dust cover
,
6 Release tab
Matrix DFE-Gold Series Installation Guide 3-7
