Setting the Mode Switches
Figure B‐1 through Figure
settings for normal operation. These switches are set at the factory to the off position and
rarely need to be changed.
Switch definitions and positions are as follows:
• Switches 1 through 6 – For Enterasys Networks use only.
• Switch 7 – Clear Persistent Data. Changing the position of this switch clears Persistent
Data on the next power‐up of the module. (Persistent Data refers to data stored in
non‐volative memory, or NVRAM.) All user‐entered parameters, such as the IP
address and module names, are reset to the factory default settings. Once the module
resets, you can either use the factory default settings or reenter your own parameters.
• Switch 8 – Clear Admin Password. Changing the position of this switch clears the
admin password, and restores the factory default password on the next power‐up of
the module. Once the module resets, you can either use the factory default settings or
reenter your own password.

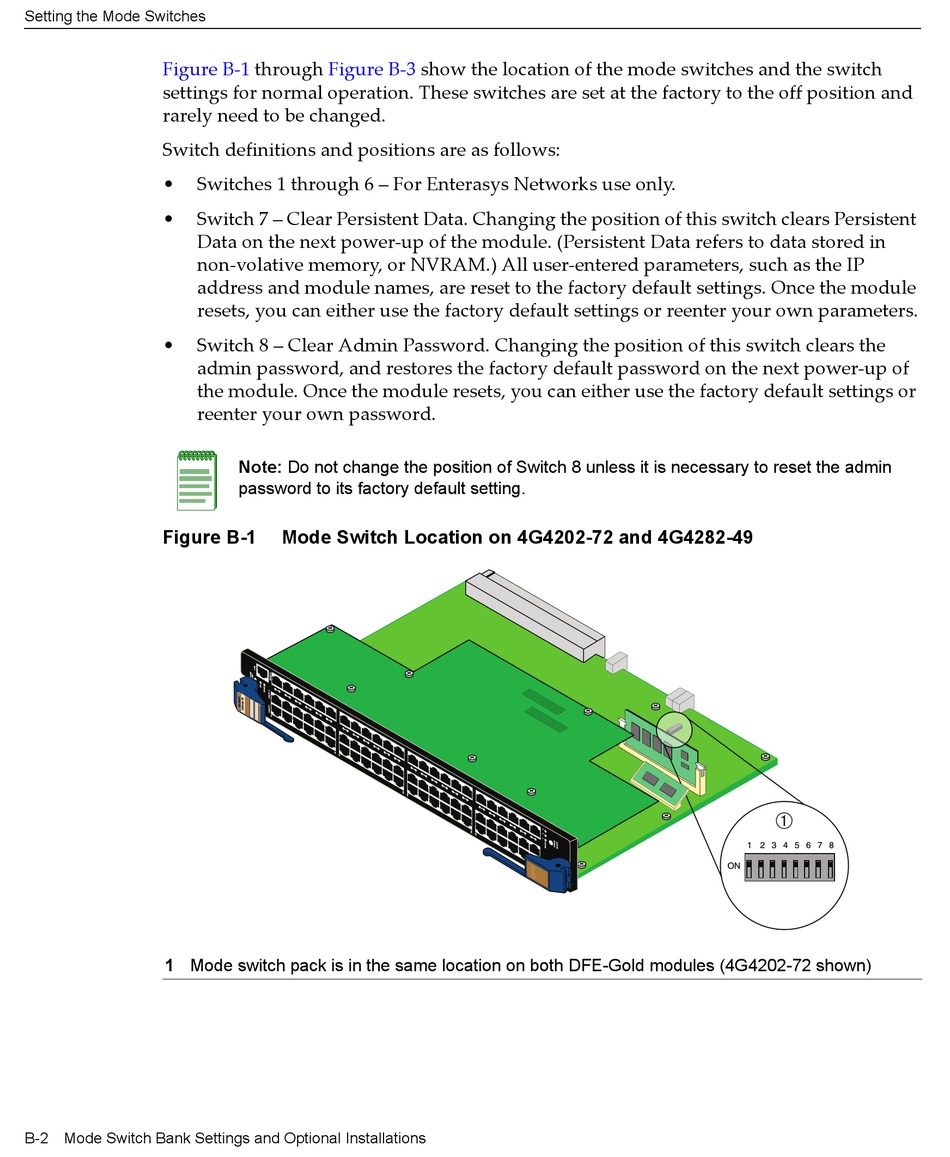

Figure B-1
1 Mode switch pack is in the same location on both DFE-Gold modules (4G4202-72 shown)
B-2 Mode Switch Bank Settings and Optional Installations
B‐3 show the location of the mode switches and the switch
Note: Do not change the position of Switch 8 unless it is necessary to reset the admin
password to its factory default setting.

Mode Switch Location on 4G4202-72 and 4G4282-49
