With a PC connected to a remote modem, you can configure the switch remotely. To

accomplish this, you must configure your PC VT emulation package with the

following parameters.

Parameter

Mode

Transmit

Bits Parity

Stop Bit

When these parameters are set, the Local Management password screen will display.

Refer to the Matrix DFE‐Gold Series Configuration Guide for further information.

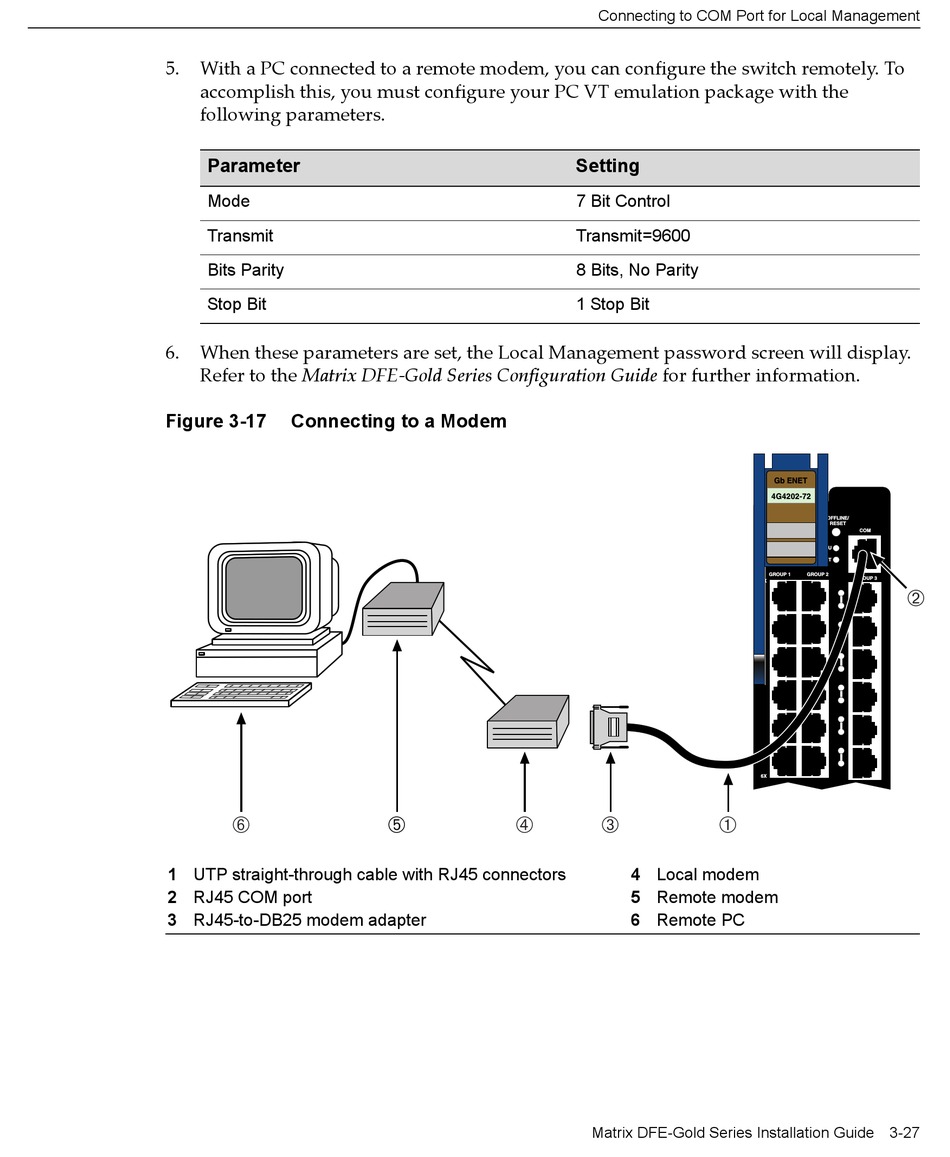

Figure 3-17

Connecting to a Modem

1 UTP straight-through cable with RJ45 connectors

2 RJ45 COM port

3 RJ45-to-DB25 modem adapter

Connecting to COM Port for Local Management

Setting

7 Bit Control

Transmit=9600

8 Bits, No Parity

1 Stop Bit

4 Local modem

5 Remote modem

6 Remote PC

Matrix DFE-Gold Series Installation Guide 3-27
