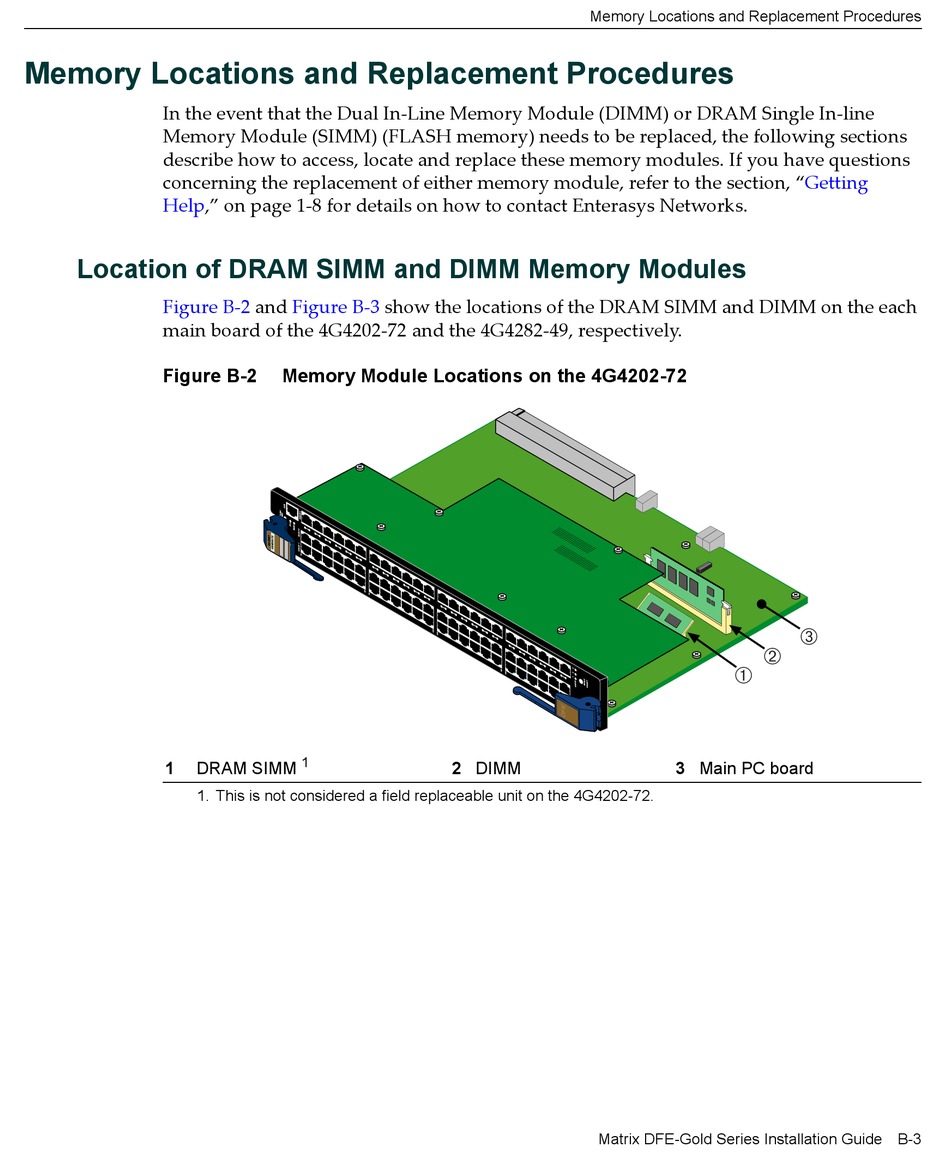

Memory Locations and Replacement Procedures

In the event that the Dual In‐Line Memory Module (DIMM) or DRAM Single In‐line
Memory Module (SIMM) (FLASH memory) needs to be replaced, the following sections
describe how to access, locate and replace these memory modules. If you have questions
concerning the replacement of either memory module, refer to the section, "Getting
Help," on page 1‐8 for details on how to contact Enterasys Networks.

Location of DRAM SIMM and DIMM Memory Modules

Figure B‐2 and Figure
main board of the 4G4202‐72 and the 4G4282‐49, respectively.
Figure B-2
1 DRAM SIMM
1. This is not considered a field replaceable unit on the 4G4202-72.
B‐3 show the locations of the DRAM SIMM and DIMM on the each

Memory Module Locations on the 4G4202-72

1
2 DIMM
Memory Locations and Replacement Procedures
Á
Á
À
À
3 Main PC board
Matrix DFE-Gold Series Installation Guide B-3
