Connecting to the Network

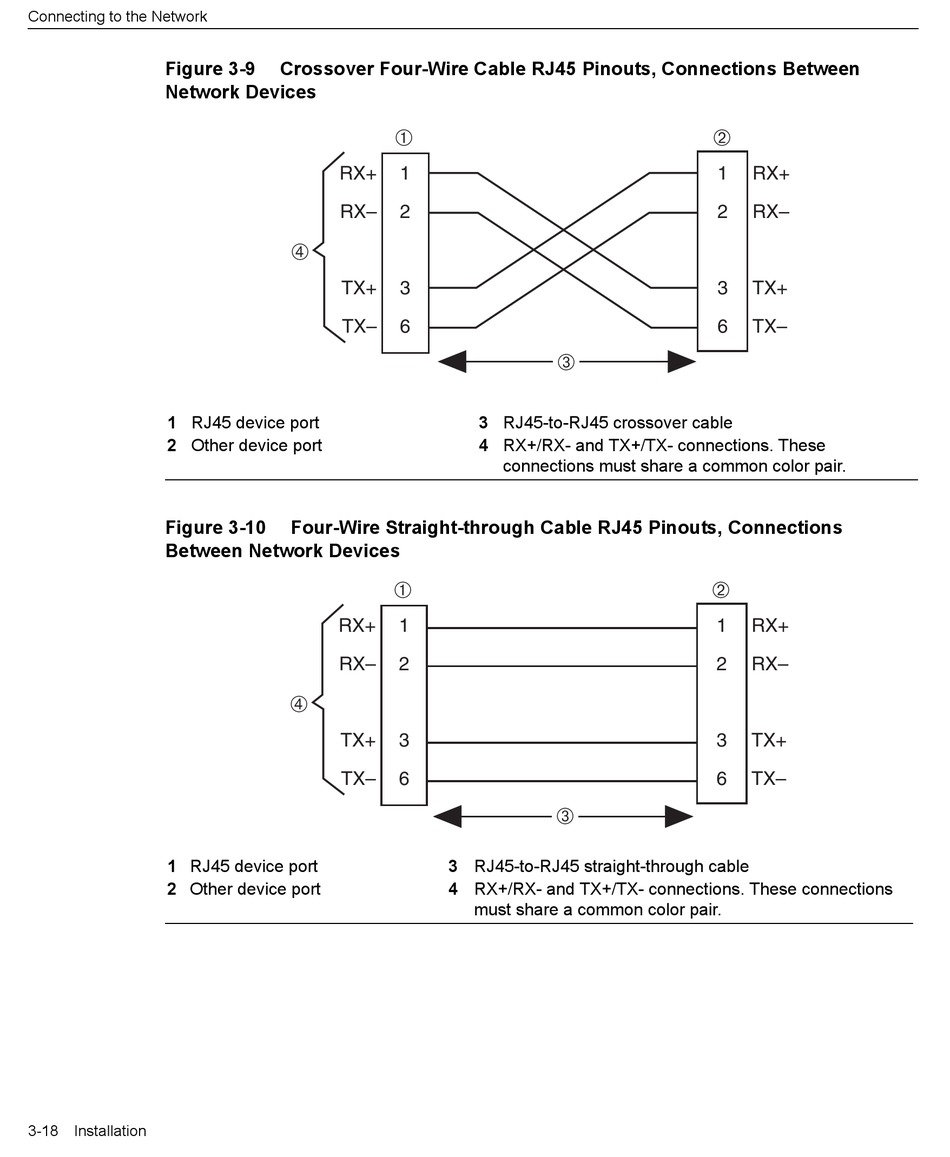

Figure 3-9

Network Devices

1 RJ45 device port

2 Other device port

Figure 3-10

Between Network Devices

1 RJ45 device port

2 Other device port

3-18 Installation

Crossover Four-Wire Cable RJ45 Pinouts, Connections Between

Four-Wire Straight-through Cable RJ45 Pinouts, Connections

3 RJ45-to-RJ45 straight-through cable

4 RX+/RX- and TX+/TX- connections. These connections

3 RJ45-to-RJ45 crossover cable

4 RX+/RX- and TX+/TX- connections. These

connections must share a common color pair.

must share a common color pair.
