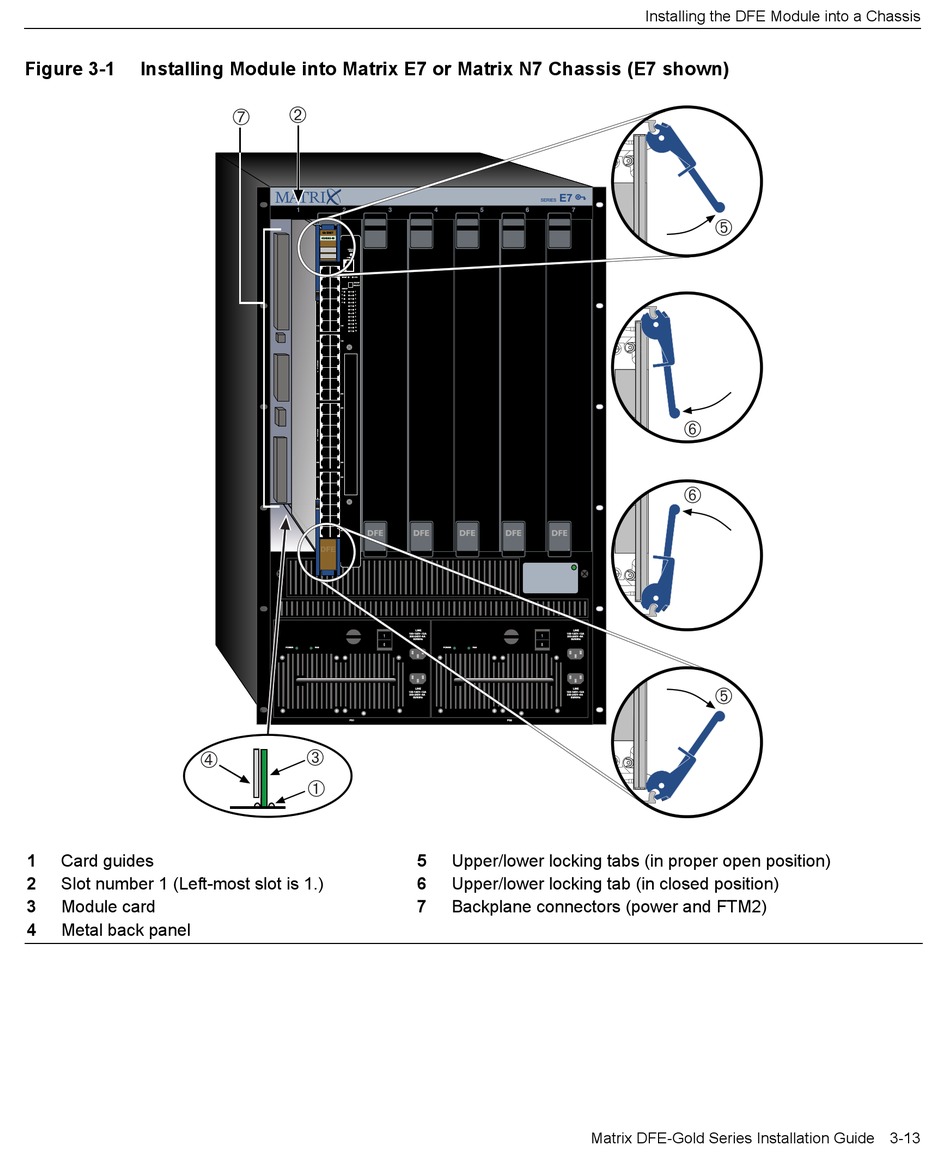

Figure 3-1 Installing Module into Matrix E7 or Matrix N7 Chassis (E7 shown)
Ã
1 Card guides
2 Slot number 1 (Left-most slot is 1.)
3 Module card
4 Metal back panel
Á
Æ
Â
À
E7
5 Upper/lower locking tabs (in proper open position)
6 Upper/lower locking tab (in closed position)
7 Backplane connectors (power and FTM2)
Matrix DFE-Gold Series Installation Guide 3-13
Installing the DFE Module into a Chassis
Ä
Å
Å
Ä
